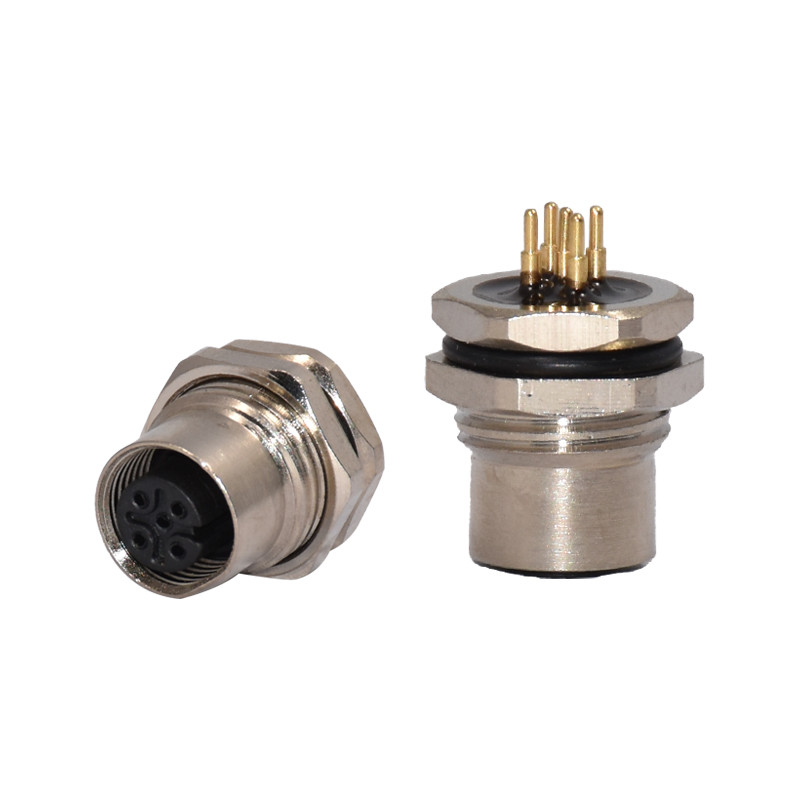

4 Pin Waterproof Bulkhead Connector
100
MOQ
negotiable
Price
4 Pin Waterproof Bulkhead Connector
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Rigoal
Certification: CE,RoHS
Model Number: m12 panel mount connector
High Light:

4 Pin Waterproof Bulkhead Connector

,

8 Pin Panel Mount Connector

,

IP67 M12 8 Pin Connector

Payment & Shipping Terms
Packaging Details: PE bag and Cartons
Delivery Time: 10-15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Specifications
Product Name: M12 Connector
Type: Front Panel Mount
Poles: 4pins 8pins
Product Gender: Female
Mating Cycle: >500times
Degree Of Protection: IP67
Code Type: A.B.C.D
Number Of Contacts: 3.4.5.8.12pins
Shielded: Avaliable
Coding: A
Product Description

M12 Watreproof Bulkhead Panel Mount 4pin 8pins Female Round Electrical Connector



Product Description

Waterproof M12 Male & Female Front Mount.

IP67 waterproof connectors to cable assemblies.

Anti-oxidization and anti-UV.



Quick details

Core type: A.B.C.D

Contacts:3.4.5.8.12pins

Rated current: 4A

Rated AC/DC: 350V

Cable size: 0.34mm

Cable size AWG:22

Mating Cycle:500times

Temperature:-40°C~+80°C

Degree of protection: IP67/68

4 Pin Waterproof Bulkhead Connector 0

Material

Cable material: PUR/PVC

Shell material: copper/Zinc

Core material:PA

Insert/ Housing: TPU

Overmold material:PVC/TPU

Terminal material:Phosphor copper

Coupling nut/screw: Brass with nickel plated screw



Locking system screw M12*1.0
Termination solder, moulded on cable, crimp or screw clamp
Wire guage in mm² 0.14/0.25/0.34/0.5 etc
Wire guage in AWG 26/24/22/20 etc
Shell protection IP67/IP68
Mechanical operation >500 mating cycles
Upper temperature +85℃
Lower temperature -25℃


Product photos



4 Pin Waterproof Bulkhead Connector 14 Pin Waterproof Bulkhead Connector 24 Pin Waterproof Bulkhead Connector 34 Pin Waterproof Bulkhead Connector 4

Applications

● Standard sensor, actuator, encoder, servo motors

● Factory automation and process control

● Industrial instrumentation

● Commercial electronics PCBA

● Industrial safety light curtain, light grid, switches

● Power supply

● Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000

● LED display panel & outdoor LED lighting

4 Pin Waterproof Bulkhead Connector 5

Packsging & Shipping

1.Our general packing: PE bag and PE bag contons. General Carton size:40*30*30cm

2.Customized according to customer's request

4 Pin Waterproof Bulkhead Connector 6





Rigoal-----Your Best Connection!
