ROSH Panel Mount USB Connector 1.5A Plastic Plug Connector
100PCS
MOQ
customize
Price
ROSH Panel Mount USB Connector 1.5A Plastic Plug Connector
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Rigoal
Certification: CE , ROSH
Model Number: USB Waterproof Connector
High Light:

Rigoal Panel Mount USB Connector

,

ROSH Panel Mount USB Connector

,

ROSH Plastic Plug Connector

Payment & Shipping Terms
Packaging Details: PE bag and Carton
Delivery Time: 10-15days
Specifications
Cable Specification: 0.15m㎡~0.2m㎡/26-24 AWG
Diameter Range: Φ5.5mm~Φ7mm
Rated Current (A): 1.5A
Contact Resistance: <30mΩ
Withstanding Voltage (AC.V) 1 Minute: 1000V
Insulation Resistance: >500MΩ
Protection Level: IP67
Contact Diameter × Number: 9
Product Description

Panel Mount USB Connector 1.5A Plastic Plug Connector



General Details

Cable specification:0.15m㎡~0.2m㎡/26-24 AWG

Diameter range:Φ5.5mm~Φ7mm

Contact diameter × number: 9

Rated Current (A):1.5A

Contact resistance:<30mΩ

Withstanding Voltage (AC.V) 1 minute: 1000V

Insulation resistance:>500MΩ

Protection level:IP67

Durability:>500

Working temperature:-40℃~80℃

Connecting mode:Quickly bayonet connect



Material

Housing, the insulating parts: High-performance engineering plastics

Hardware: Zinc Alloy (pearl hard chrome)

Copper needles: Copper Shell

Waterproof circle: Silica gel

Flammability rating:UL94-V0



Product Drawing

ROSH Panel Mount USB Connector 1.5A Plastic Plug Connector 0

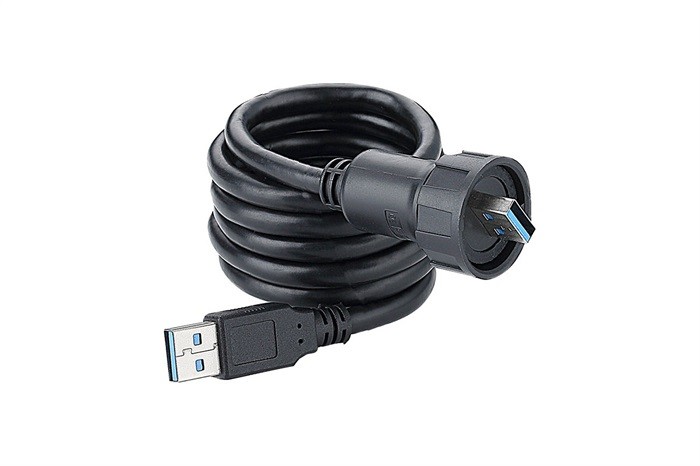

Product Photos

ROSH Panel Mount USB Connector 1.5A Plastic Plug Connector 1

ROSH Panel Mount USB Connector 1.5A Plastic Plug Connector 2

ROSH Panel Mount USB Connector 1.5A Plastic Plug Connector 3



Packaging & Shipping

Approval customized based on customers' requirements

MOQ: 100pcs each item

Delivery time: 5-7days after the payment received

Shipment: by Express,by Air, by Sea

Payment terms: 100% TT in Advance

Payment method: T/T, Western Union, Paypal



USB waterproof connector

      USB plugs and sockets are applicable to data transmission with quickly plug,fast transfer rate and strongly extensibility.

      They are widely used in computers,digital cameras,scanner and other transmission equipment,Varies types,can achieve male and female conversion docking,independent female,male with cable and so on...Wildly used for comuper and other data equioment.
