Features
Specifications
Connector Design: M8 Female Connector
Termination: Solder
Wire Gauge (mm): 0.25 Mm²
Wire Gauge (AWG): 24
Cable Outlet: 3,5 - 5,0 Mm
Upper Limit Temperature: 85 °C
Lower Limit Temperature: -40 °C
Rated Current (40 °C): 1.5A/4 A
Rated Voltage: 30v/60 V
Rated Impulse Voltage: 1500 V
Volume Resistivity: ≤ 3 MΩ
Degree Of Protection: IP67
High Light:

Rohs 5 Pin Panel Mount Connector

,

Rigoal Rear Panel Connector

,

Rohs Rear Panel Connector

Basic Infomation
Place of Origin: China
Brand Name: Rigoal
Certification: CE , Rohs
Model Number: M8 panel mount connector
Payment & Shipping Terms
Packaging Details: PE bag and Cartons
Delivery Time: 7-10days
Supply Ability: 10000 per week
Product Description

M8 Waterproof Connector Female 5pins Panel Mount Rear Panel Connector With Soldering



Product description

♦ M8 Series Front Panel Mount Connectors; Water and dustproof to IP67 when mated with compatible connector; Pin or Socket; 3, 4, 5 Pole (3, 4 Pole are A Code, 5 Pole are B Code) Flying Lead Termination with choice of lead lengths, depending on part code

♦ we provide customized service, best lead time and the competitive price as well.

♦ RIGOAL is a professional manufacturer of M8 Waterproof Connectors.



Quick details

1. M8 panel mount connector

2. Connector locking system is bolted

3. Termination is solder

4. Wire gauge(mm) is 0.25mm²

5. Wire gage(AWG) 24

6. Cable outlet can be 3,5 - 5,0 mm

7. Temperature will from -40° to +85°

8. Contacts 3.4.5.6.8pins avaliable



Material Data
Contact material CuZn (brass)
Contact plating Au (gold)
Contact body material PA
Housing material PA



Electrical values

Rated current (40 °C) :1.5A/4 A

Rated voltage :30V/60 V

Rated impulse voltage :1500 V

Pollution degree :3

Overvoltage category :III

Insulating material group :III

Volume resistivity :≤ 3 mΩ

EMC compliance :not shielded

Degree of protection :IP67

Mechanical operation :> 100 Mating cycles



Number of Contacts 3 4 5 6 8
Rated voltage 30V 60V
Contact resistance <5
Insulation resistance <100mΩ
Pollution degree 3
Temperature range 25 °C to 85° C
Degree of protection IP 67 when mated
Mating times 100 cycles
Wire gauge 24AWG 26AWG
Cable jacket PVC or PUR
Material of housing Brass Nickel Plated
Material of insert PA+GF UL9V-0
Material of contact Brass phosohor bronze gold plated




Product photos

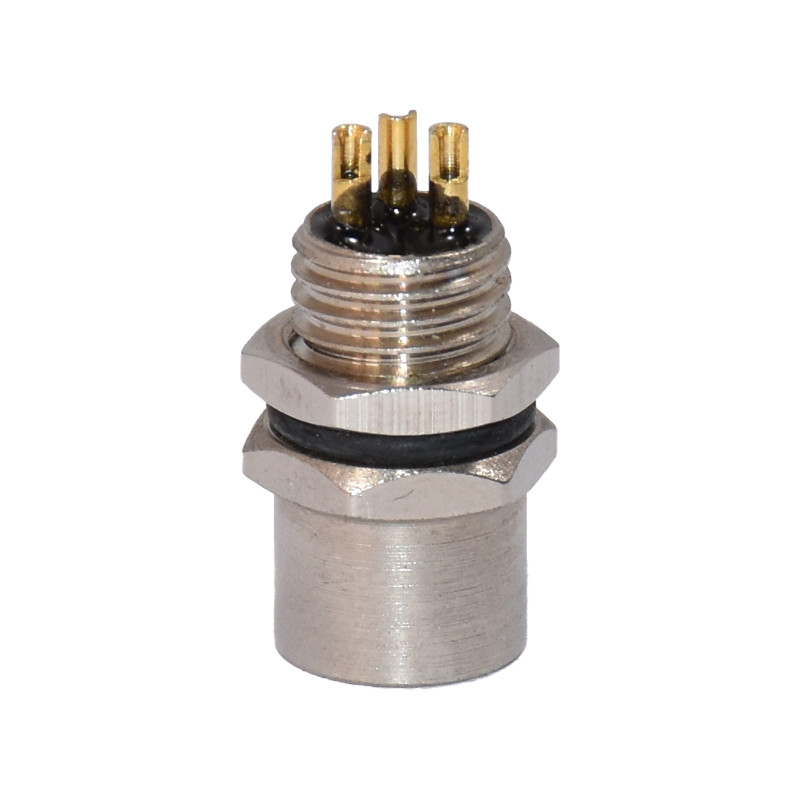

M8 5 Pin Panel Mount Connector , Rear Panel Connector With Soldering 0

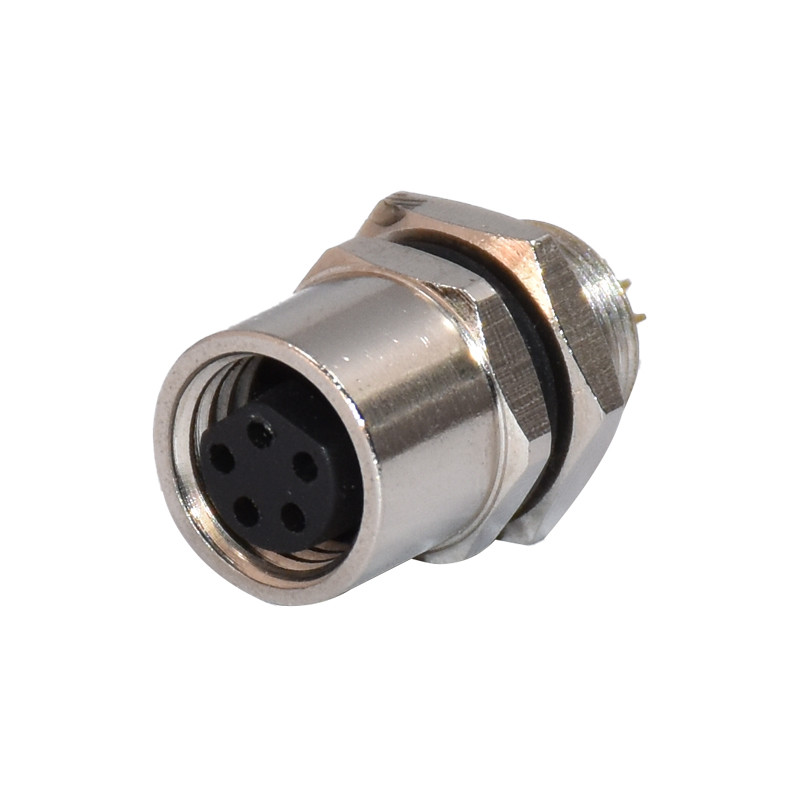

M8 5 Pin Panel Mount Connector , Rear Panel Connector With Soldering 1

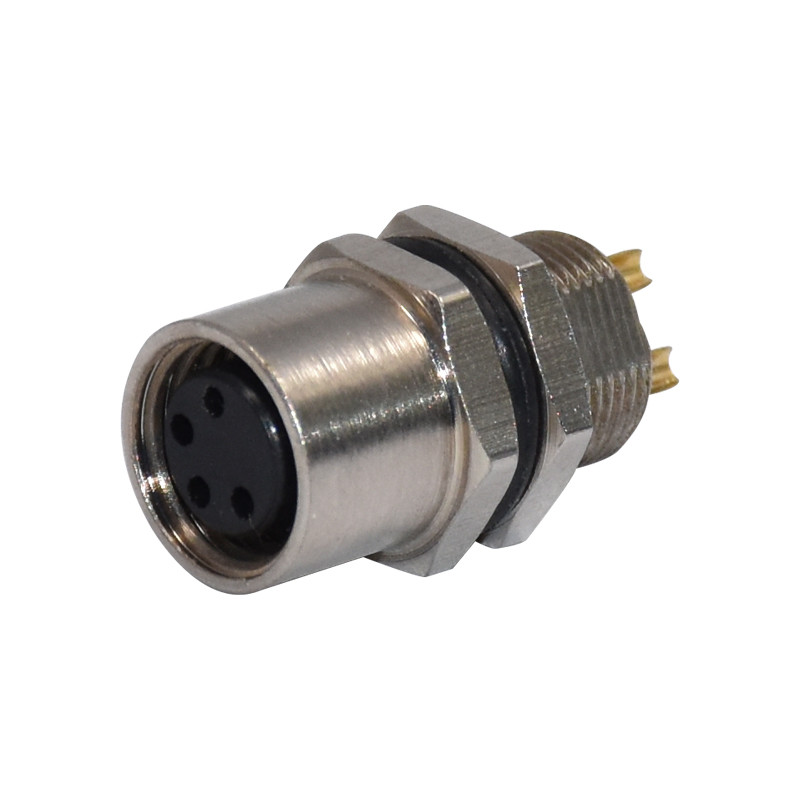

M8 5 Pin Panel Mount Connector , Rear Panel Connector With Soldering 2

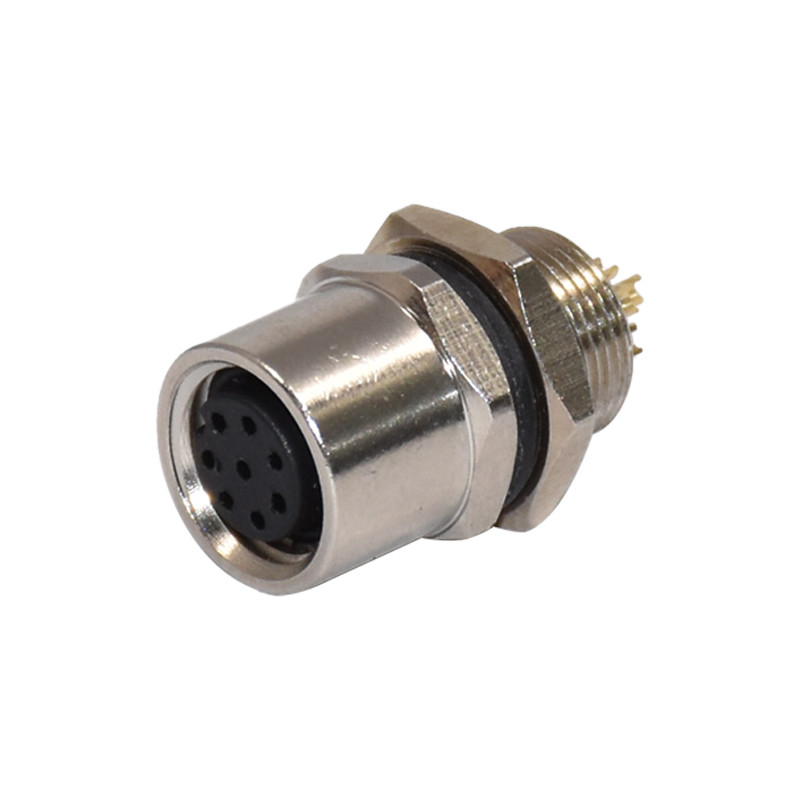

M8 5 Pin Panel Mount Connector , Rear Panel Connector With Soldering 3

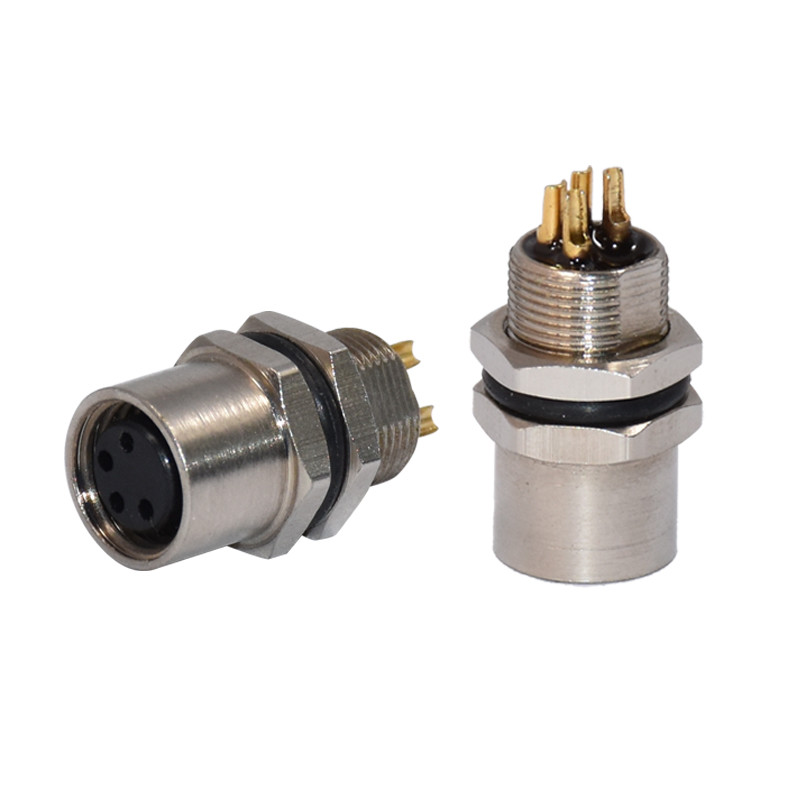

M8 5 Pin Panel Mount Connector , Rear Panel Connector With Soldering 4



M8 5 Pin Panel Mount Connector , Rear Panel Connector With Soldering 5

Packsging & Shipping

1.Our general packing: PE bag and PE bag contons. General Carton size:40*30*30cm

2.Customized according to customer's request

M8 5 Pin Panel Mount Connector , Rear Panel Connector With Soldering 6

M8 5 Pin Panel Mount Connector , Rear Panel Connector With Soldering 7



M8 connector can be used a wide fields like LED, Automation, Sensor, mechanise equipment etc.

• LED lighting , white light , color light etc

• Low current equipement

• Connector be used in narrow environment

• Communication equipement

• Lighting harness

M8 5 Pin Panel Mount Connector , Rear Panel Connector With Soldering 8



M8 5 Pin Panel Mount Connector , Rear Panel Connector With Soldering 9
