Rigoal M8 Waterproof Connector 90 Degree 4 Pin Panel Mount Connector
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Rigoal
Certification: CE,RoHS
Model Number: M8 panel mount connector
High Light:

Rigoal M8 Waterproof Connector

,

1.5A M8 Waterproof Connector

,

TUV 4 Pin Panel Mount Connector

Payment & Shipping Terms
Packaging Details: PE bag and Cartons
Delivery Time: 7-10days
Supply Ability: 10000 per week
Specifications
Connector Design: M8 Male Connector
Termination: Solder
Wire Gauge: 24
Cable Outlet: 3,5 - 5,0 Mm
Lower Limit Temperature: -40 °C
Rated Voltage: 30V / 60 V
Upper Limit Temperature: 85 °C
Rated Impulse Voltage: 1500 V
Volume Resistivity: ≤ 3 MΩ
Rated Current: 1.5A / 4 A
Degree Of Protection: IP67
Product Description

M8 Waterproof Connector 90 Degree 4pins Male Panel Mount Right Angle Connector Sensor



Product description



M8 Series Threaded, Panel Mount, Bulkhead - Rear Side Nut, IP67 - Dust Tight, Waterproof Circular Connectors TE Connectivity AMP Connectors The M8 connector system provides a solution that safely and reliably ensures the communication in industrial environments.

These receptacles can be used to connect cables in sensor, actuator or any other application

Regarding m8 field installable cable connector, the cable outlet has two types of 4-6 and 6-10 optional. As panel mount connectors, they may be classified as front mounting, rear / back mounting type by rear fastening thread and front fastening thread. Their pins have wire solder cup pin and PCB DIP solder pin.



Waterproof M8 panel mount connector

1. M8 panel mount connector

2. Connector locking system is bolted

3. Termination is solder

4. Wire gauge(mm) is 0.25mm²

5. Wire gage(AWG) 24

6. Cable outlet can be 3,5 - 5,0 mm

7. Temperature will from -40° to +85°

8. Contacts 3.4.5.6.8pins avaliable



Material Data
Contact material CuZn (brass)
Contact plating Au (gold)
Contact body material PA
Housing material PA



Connector Type  M8 Panel Mount
Mounting Type  Front
Contact Type Male to Solder
Number of Pins  4
Housing Material Nickel Plated Brass
Mating Thread M8
Switch Fixed Nut SW10
Conductor Size 0.25 mm2
Rated Voltage 60V AC/DC
Rated Current 4 Amps
Contact Material Bronze
Contact Surface Material Nickel
O-Ring Material NBR Rubber



Electrical values

Rated current (40 °C) :1.5A/4 A

Rated voltage :30V/60 V

Rated impulse voltage :1500 V

Pollution degree :3

Overvoltage category :III

Insulating material group :III

Volume resistivity :≤ 3 mΩ

EMC compliance :not shielded

Degree of protection :IP67

Mechanical operation :> 100 Mating cycles



Number of Contacts 3 4 5 6 8
Rated voltage 30V 60V
Contact resistance <5
Insulation resistance <100mΩ
Pollution degree 3
Temperature range 25 °C to 85° C
Degree of protection IP 67 when mated
Mating times 100 cycles
Wire gauge 24AWG 26AWG
Cable jacket PVC or PUR
Material of housing Brass Nickel Plated
Material of insert PA+GF UL9V-0
Material of contact Brass phosohor bronze gold plated




Product photos

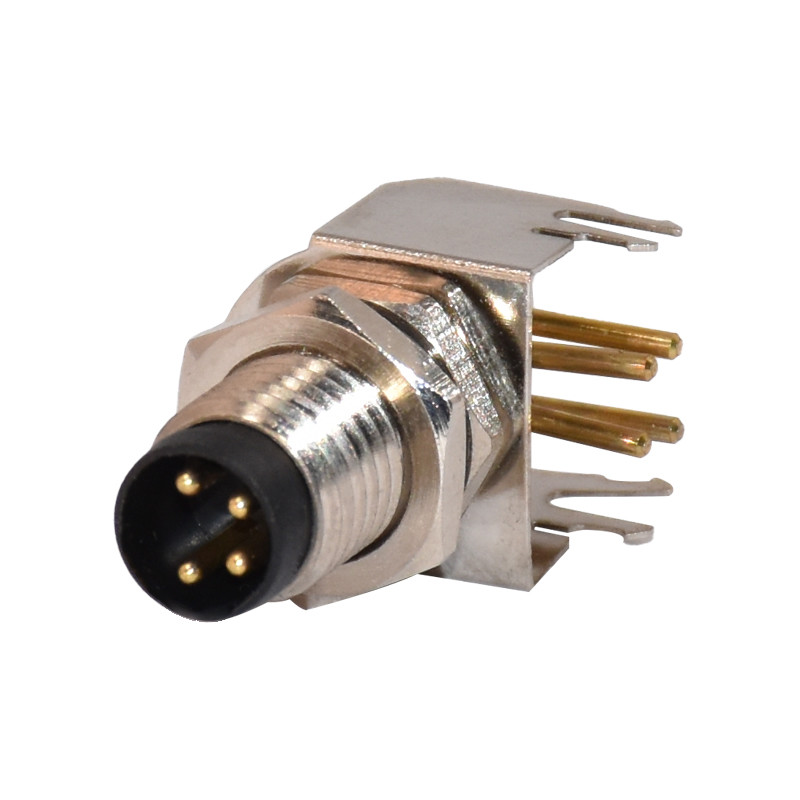

Rigoal M8 Waterproof Connector 90 Degree 4 Pin Panel Mount Connector 0

Rigoal M8 Waterproof Connector 90 Degree 4 Pin Panel Mount Connector 1

Rigoal M8 Waterproof Connector 90 Degree 4 Pin Panel Mount Connector 2

Rigoal M8 Waterproof Connector 90 Degree 4 Pin Panel Mount Connector 3









Packsging & Shipping

1.Our general packing: PE bag and PE bag contons. General Carton size:40*30*30cm

2.Customized according to customer's request

Rigoal M8 Waterproof Connector 90 Degree 4 Pin Panel Mount Connector 4

Rigoal M8 Waterproof Connector 90 Degree 4 Pin Panel Mount Connector 5



M8 connector can be used a wide fields like LED, Automation, Sensor, mechanise equipment etc.

• LED lighting , white light , color light etc

• Low current equipement

• Connector be used in narrow environment

• Communication equipement

• Lighting harness

Rigoal M8 Waterproof Connector 90 Degree 4 Pin Panel Mount Connector 6



Rigoal M8 Waterproof Connector 90 Degree 4 Pin Panel Mount Connector 7
