M8 male 8pins waterproof front panel mount connector for sensor application
100pcs
MOQ
$2.8 per piece
Price
M8 male 8pins waterproof front panel mount connector for sensor application
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Rigoal
Certification: CE,RoHS
Model Number: M8 panel mount connector
Payment & Shipping Terms
Packaging Details: PE bag and Cartons
Delivery Time: 7-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 per week
Specifications
Connector Design: Male Connector
Termination: Solder
Wire Gauge (mm): 0,25 Mm²
Wire Gauge (AWG): 24
Cable Outlet: 3,5 - 5,0 Mm
Upper Limit Temperature: 85 °C
Lower Limit Temperature: -40 °C
Rated Current (40 °C): 4 A
Rated Voltage: 60 V
Rated Impulse Voltage: 1500 V
Volume Resistivity: ≤ 3 MΩ
Degree Of Protection: IP67
Product Description

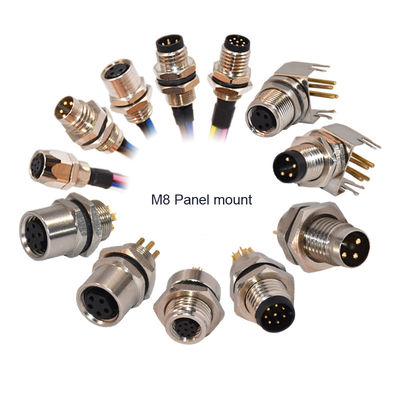

Waterproof M8 panel mount connector



Product description

The M8 is a reference to the thread type used in the connection of this product. The M8 connector (NAN), also known in the industry as Pico connectors, are currently our smallest connector.

M8 to the rescue A system that is connected M8 connectors makes assembling, testing and servicing an industrial control system faster and less expensive.

Panel mounting bases and coupling housings allow you to implement plug-in connections on the device wall or free-hanging connections.



Product data

1. M8 panel mount connector 8pins male gender

2. Connector locking system is bolted

3. Termination is solder

4. Wire gauge(mm) is 0.25mm²

5. Wire gage(AWG) 24

6. Cable outlet can be 3,5 - 5,0 mm

7. Temperature will from -40° to +85°

8. Contacts 3.4.5.6.8pins avaliable



Material Data
Contact material CuZn (brass)
Contact plating Au (gold)
Contact body material PA
Housing material PA



Electrical values

Rated current (40 °C) :4 A

Rated voltage :60 V

Rated impulse voltage :1500 V

Pollution degree :3

Overvoltage category :III

Insulating material group :III

Volume resistivity :≤ 3 mΩ

EMC compliance :not shielded

Degree of protection :IP67

Mechanical operation :> 100 Mating cycles



Number of Contacts 3 4 5 6 8
Rated voltage 30V 60V
Contact resistance <5
Insulation resistance <100mΩ
Pollution degree 3
Temperature range 25 °C to 85° C
Degree of protection IP 67 when mated
Mating times 100 cycles
Wire gauge 24AWG 26AWG
Cable jacket PVC or PUR
Material of housing Brass Nickel Plated
Material of insert PA+GF UL9V-0
Material of contact Brass phosohor bronze gold plated





Product photos

M8 male 8pins waterproof front panel mount connector for sensor application 0

M8 male 8pins waterproof front panel mount connector for sensor application 1

M8 male 8pins waterproof front panel mount connector for sensor application 2

M8 male 8pins waterproof front panel mount connector for sensor application 3

Packsging & Shipping

1.Our general packing: PE bag and PE bag contons. General Carton size:40*30*30cm

2.Customized according to customer's request

M8 male 8pins waterproof front panel mount connector for sensor application 4





M8 connector can be used a wide fields like LED, Automation, Sensor, mechanise equipment etc.

• LED lighting , white light , color light etc

• Low current equipement

• Connector be used in narrow environment

• Communication equipement

• Lighting harness

M8 male 8pins waterproof front panel mount connector for sensor application 5







Rigoal-----Your Best Connection!
