3 Pin Female Solenoid Valve Connector Form B IEC Standard
1000
MOQ
$1.5
Price
3 Pin Female Solenoid Valve Connector Form B IEC Standard
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Rigoal
Certification: CE, TUV , RoSH
Model Number: solenoid valve connector form B
High Light:

RoSH Solenoid Valve Connector

,

IEC Standard Solenoid Valve Connector

,

RoSH 3 pin Female Connector

Payment & Shipping Terms
Packaging Details: PE bag and Carton
Delivery Time: 10-15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000per week
Specifications
Contacts: 2+PE
Degree Of Protection: IP65
Type: Type B With LED
PIN Number: 3PINS
EMC Compliance: Not Shielded
Contact Material: CuSn (bronze)
Contact Body Material: PA
Contact Plating: Ni
Connector Gender: Female
Application: Power
Product Description

Solenoid Valve Connector IEC Standard 3 Pin Female Solenoid Valve Waterproof Connector



Production description

1. Our product lines have covers DIN43650 Form A / B / C and other special styles.

2. The solenoid valve connectors are normally used to supply power to solenoid valves, which are widely used in:
* Hydraulic
* Pneumatic
* Electrical Appliance industry

3. a wide range of solenoid valve connectors with available stock for immediate delivery at extremely favorable prices.

4. Wide range of DIN43650 Industry standard form A/B/C types, special on request

5. A variety shell color: black, brown and transparent, gray

6. A range of options include 24V, 110V and 230V operation, LED indication, and models with or without surge suppression.

7. Solenoid valves are used wherever fluid flow has to be controlled automatically

8. The variety of different designs which are available enables a valve to be selected to specifically suit the application in question

9. We specialize in interconnection devices, electronic timers, proximity sensors, modules and specialty electronic devices



Material

Contact material: CuSn (bronze)

Contact plating: Ni (nickel)

Contact body material: PA

Housing material: PA

Pin number: 2+PE

Coding: B with LED



Product Data
Rated current 10A
Rated voltage 250V
Operating Temperature -30℃~120 ℃
Connector locking system Screw
Mechanical operation >500 mating cycles
Contact resistance ≤15mΩ
Contact material CuSn (bronze)
Housing material PA
EMC compliance not shielded

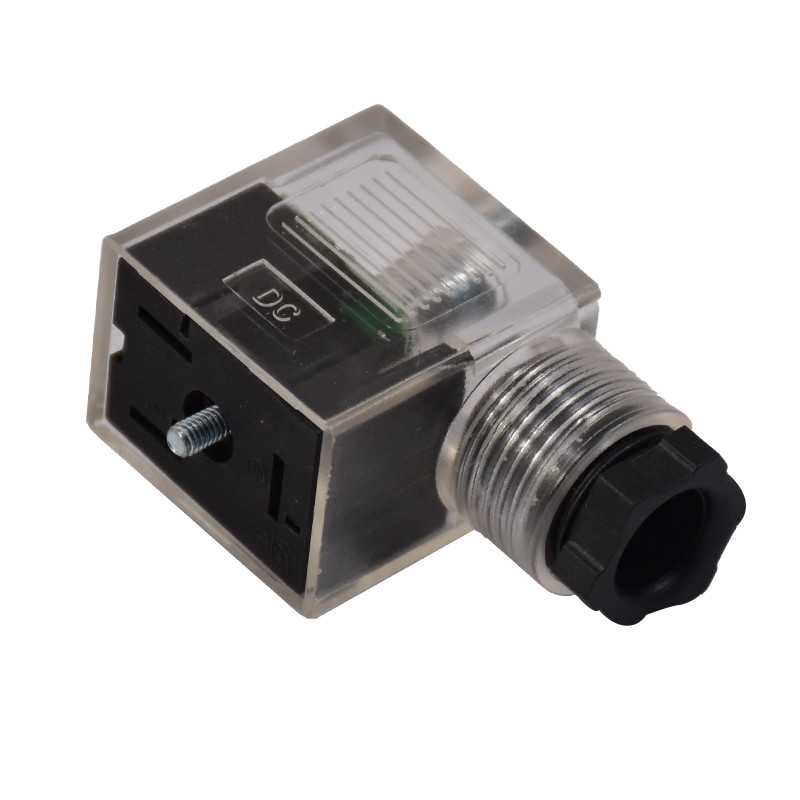

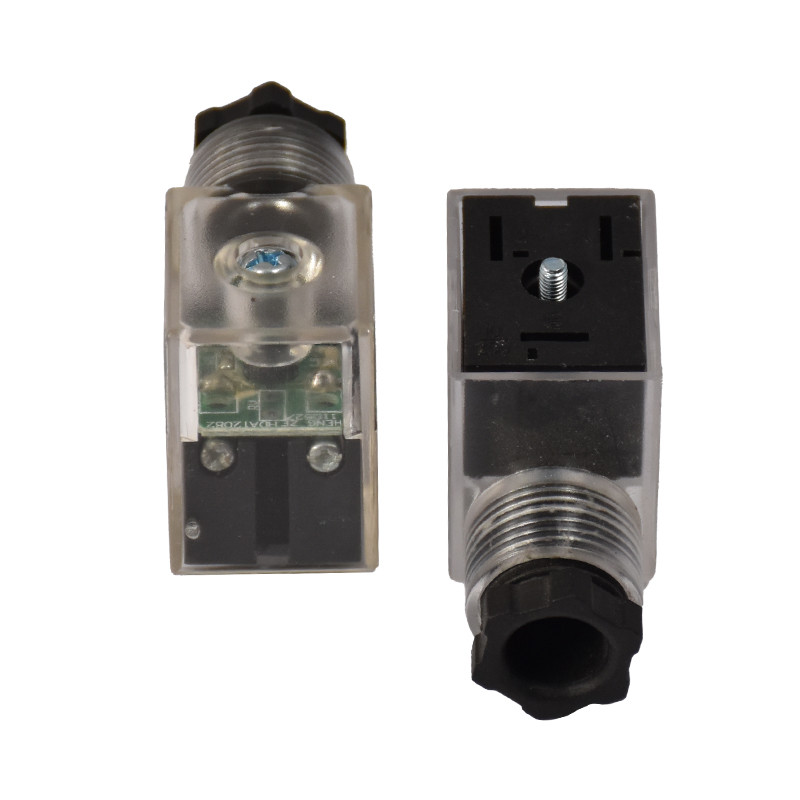

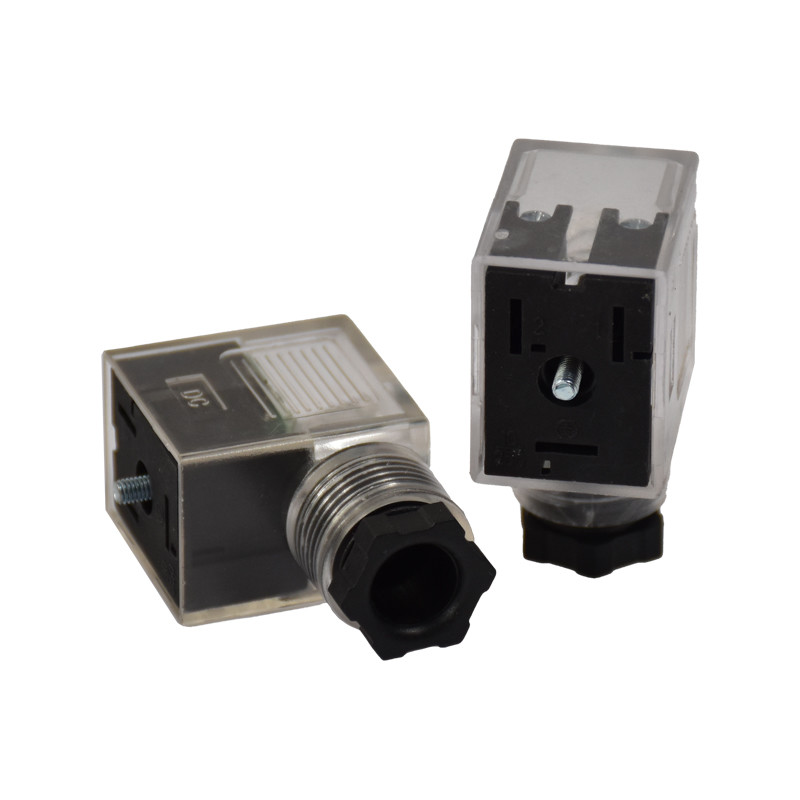

Product photos

3 Pin Female Solenoid Valve Connector Form B IEC Standard 0

3 Pin Female Solenoid Valve Connector Form B IEC Standard 1

3 Pin Female Solenoid Valve Connector Form B IEC Standard 2



3 Pin Female Solenoid Valve Connector Form B IEC Standard 3

Quality statement:

● Screws/nuts materials: brass with nickel plating, CNC parts

● Male contacts materials: brass with gold plating, machined solid pin

● Female contacts materials: phosphor bronze with gold plating, machined solid pin

● Protection degrees: IP67/IP68 in locked status

● RoHS Directive-compliant

 Rigoal-----Your Best Connection!
