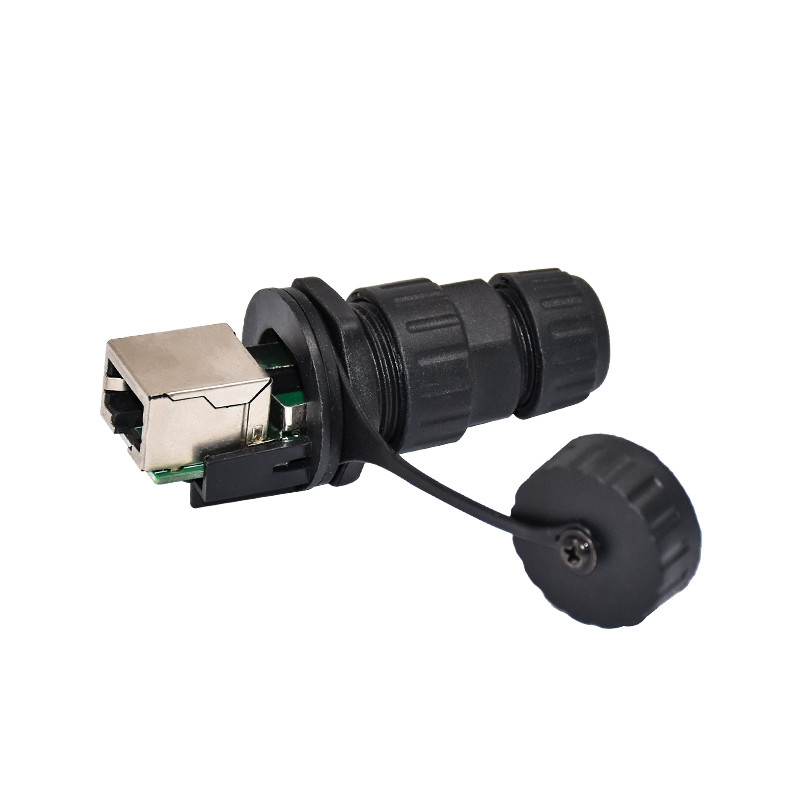

RJ45 Female Connector Panel Mount Waterproof IP68 Plug

100pcs
MOQ
negotiable
Price
RJ45 Female Connector Panel Mount Waterproof IP68 Plug
Features Gallery Product Description Request A Quote
Features
Specifications
Moulding: Polycarbonate
Contact Material: Phosphor Bronze
Contact Plating: 50 Micron Gold
Operating Temperature: –40°C To +70°C
Mating Cycles: 1,000 Cycles Compliant
Current Rating: 1.5A
Voltage Rating: 30V Ac, 42V Dc
Type: RJ45 Panel
Gender: Female
Degree Of Protection: IP68
High Light:

RJ45 Female Connector Panel Mount

,

RJ45 Waterproof Connector

,

Waterproof Rj45 Connector

Basic Infomation
Place of Origin: China
Brand Name: Rigoal
Certification: CE ,T UV , Rohs
Model Number: RJ45 Panel connector
Payment & Shipping Terms
Packaging Details: PE bag and Cartons
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T
Supply Ability: 100000pcs per month
Product Description

Industrial Ethernet Connector RJ45 Male Panel Mount Connector Waterproof IP68 Plug



Product description

Our Circular connectors offer light weight and assure high reliability and durability as well as easy thread lock operation. You may apply our connectors to all kinds of electronic equipment requiring high reliability.
Our connectors are known for their durability,excellent for communication network.

Our waterproof connectors have very high security,use high quality ROHS nylon material and can bear high temperature and low temperature.
Unsafe design may cause the spontaneous combustion or damage of the whole equipment or electronic products,which can also lead the electric shock accident of human and Direct property damage by fire.



Electrical Data
Moulding:Polycarbonate
Contact material: Phosphor Bronze
Contact plating: 50 micron gold
Operating Temperature: –40°C to +70°C
Mating cycles: 1,000 cycles Compliant
No. Conductors: 8
Current rating: 1.5A
Voltage rating: 30V ac, 42V dc
Contact resistance:10mW max.
Performance: Cat 5e
Conductor types: 24-28AWG, solid or multi- stranded
Degree of Protection: IP68


IP68 ratedDust and waterproof sealing when mated
Cat 5e compliantData rate up to 100MHz
PUR jacket on cableGood chemical resistance, flame retardant
Shielded systemHigh noise immunity and EMI protection
Cat 5e shielded couplerMaintains shielding
Shroud on RJ45Protection from abuse and mis-mating
Screw couplingSecure, proven locking system
Rewireable flex connectorAbility to ‘field’ terminate
PCB mounted panel connectorDirect PCB mount panel connector
IDC termination panel connectorSimple termination


RJ45 Female Connector Panel Mount Waterproof IP68 Plug 0


Product Photos
RJ45 Female Connector Panel Mount Waterproof IP68 Plug 1
RJ45 Female Connector Panel Mount Waterproof IP68 Plug 2


Our connectors advantage are as below

High density

Heat resistant

Flame retardant

wear resistant

Waterproof,dustproof and sealed

High security,good perfomance and durability


Our service
1. We are the manufacture, Rigoal is our brand, and has built a great reputation in China even around the world.
2. We guaranteed that 100% in good quality, the price will be reasonal.
3. All the inquiry will be response within 24 hours, the commucation will be effective.
4. Special feature and service can be provided upon requirement.
