4P Right Angle Cable Connector , Automative Shielded Molded Cable Connector
100pcs
MOQ
Negotiable
Price
4P Right Angle Cable Connector , Automative Shielded Molded Cable Connector
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Rigoal
Certification: CE,RoSH
Model Number: M5
High Light:

1A 4P Right Angle Cable Connector

,

60V 4P Right Angle Cable Connector

,

60V 1A Molded Cable Connector

Payment & Shipping Terms
Packaging Details: PE bag and Cartons
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Specifications
Model Type: M5 Molding Connector
Poles: 4P
Connector Gender: Female To Female
Rated Current: 1A
Rated Voltage: 60V
Application: Automotive
Protection Level: IP67 Or IP68
Contact Resistance: ≤10mΩ
Oriental: Right Angle
Pollution Degree: III
Product Description

M5 4 Pin Male Straight Cable Connector Waterproof

Product description
Unique variety of housing designs
Flexibility, thanks to various numbers of positions from 3 to 19 positions
Simplified cabling, thanks to plastic-molded designs
Device connectors with lizt wire or round cables in size m5 is a reliable alternative to permanent connections
Easy positioning, safe mounting, reliable seals and transmission.


Quick details
Wire gauge (AWG): 22AWG / 24AWG
Wire gauge (mm²): 0.34mm² / 0.25mm²
Jacket material: PVC
Ambient Temperature: -25°C ~ +85°C

Insert: PA66+GF
Contacts: Phosphorus copper with gold plated
Screw: Brass with nickel plated
Connector locking system: Screw locking
Mechanical operation: >100 mating cycles
Rated current: 1A
Rated voltag: 60V
Contact resistance: ≤5mΩ
Insulation resistance: ≥100MΩ

Electrical Characteristics
Insulation ≥10 9Ω
Forward resistance ≤5mΩ
Rated current 1A
Rated voltage 60V
Pollution degree 3
Temperature range -40…80 ℃
Mechanical operation ≥100
Maximum cable diameter 3.8mm


Material

Pin contact CuZn
Socket contact CuSn
Contact plating Au
Upper temperature PA66(UL 94V-0)
Female insent PA66(UL 94V-0)
Material of cable jacket PVC or PUR
Screw CuZn
Nut CuZn


Product photos

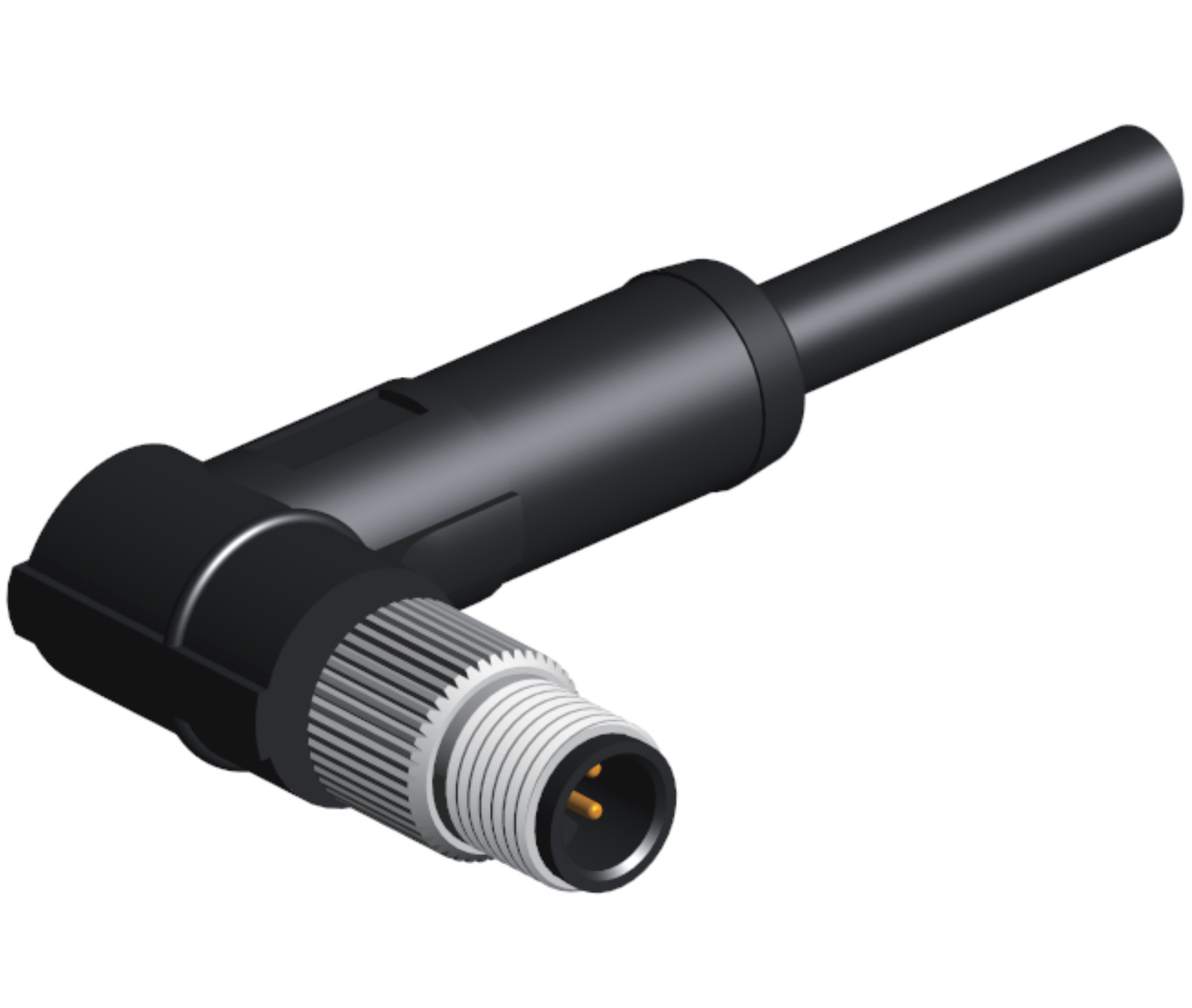

4P Right Angle Cable Connector , Automative Shielded Molded Cable Connector 04P Right Angle Cable Connector , Automative Shielded Molded Cable Connector 1
Our service

1) Low cost but good quality in ip67 waterproof in locked condition with ISO9001 management under efficient service
2) Provide free samples within 3 working days if it is normal product with existing tooling
3) Effective communication and rapid response
4) Early design-in capability,OEM, ODM are available
5) Globalization, localization of operation and management
6) 7 years quality assurance.
