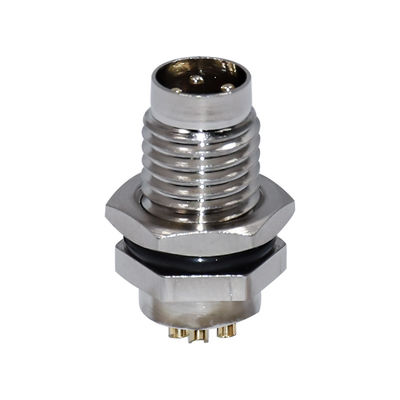

Waterproof M8 Front Panel Mount Connector 3pins Male Fastened IP67 Connector Automotive

100pcs
MOQ
negotiable
Price
Waterproof M8 Front Panel Mount Connector 3pins Male Fastened IP67 Connector Automotive
Features Gallery Product Description Request A Quote
Features
Specifications
Connector Design: PCB Connector
Termination: Solder
OD Cable: 0,25 Mm²
Wire Gauge: 24 Or 26 AWG
Cable Jacket: PVC Or PUR
Upper Limit Temperature: 85 °C
Lower Limit Temperature: -40 °C
Current Rating: 4 A
Rated Voltage: 60 V
Rated Impulse Voltage: 1500 V
Volume Resistivity: ≤ 3 MΩ
Degree Of Protection: IP67
Basic Infomation
Place of Origin: China
Brand Name: Rigoal
Certification: CE,Rohs
Model Number: M8 panel mount connector
Payment & Shipping Terms
Packaging Details: PE bag and Cartons
Delivery Time: 7-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 per week
Product Description

M8 Front Panel Mount Connector 3pins Male Waterproof Fastened Connector Automotive
Waterproof M8 Front Panel Mount Connector 3pins Male Fastened IP67 Connector Automotive 0Waterproof M8 Front Panel Mount Connector 3pins Male Fastened IP67 Connector Automotive 1Waterproof M8 Front Panel Mount Connector 3pins Male Fastened IP67 Connector Automotive 2
Waterproof M8 Front Panel Mount Connector 3pins Male Fastened IP67 Connector Automotive 3

Quick details
1. M8 panel mount connector male 3pins solder connector
2. Connector locking system is bolted
3. Termination is solder
4. Wire gauge(mm) is 0.25mm²
5. Wire gage(AWG) 24
6. Cable outlet can be 3,5 - 5,0 mm
7. Contacts 3.4.5.6.8pins avaliable

Electrical values
Rated current (40 °C) :4 A
Rated voltage :60 V
Rated impulse voltage :1500 V
Pollution degree :3
Overvoltage category :III
Insulating material group :III
Volume resistivity :≤ 3 mΩ
EMC compliance :not shielded
Degree of protection :IP67
Mechanical operation :> 100 Mating cycles


Connector Type M8 Panel Mount
Mounting Type Front
Contact Type Male
Number of Pins 3
Housing Material Nickel Plated Brass
Mating Thread M8
Switch Fixed Nut SW10
Conductor Size 0.25mm2
Rated Voltage 60V AC/DC
Rated Current 4AMPS
Contact Material Bronze
Contact Surface Material Nickel
O-Ring Material NBR Rubber
Temperature Range -25℃ to 90℃
Number of Contacts 3 4 5 6 8
Rated voltage 30V 60V
Contact resistance <5
Insulation resistance <100mΩ
Pollution degree 3
Temperature range 25 °C to 85° C
Degree of protection IP 67 when mated
Mating times 100 cycles
Wire gauge 24AWG 26AWG
Cable jacket PVC or PUR
Material of housing Brass Nickel Plated
Material of insert PA+GF UL9V-0
Material of contact Brass phosohor bronze gold plated


Product photos
Waterproof M8 Front Panel Mount Connector 3pins Male Fastened IP67 Connector Automotive 4
Waterproof M8 Front Panel Mount Connector 3pins Male Fastened IP67 Connector Automotive 5
Packsging & Shipping

1.Our general packing: PE bag and PE bag contons. General Carton size:40*30*30cm

2.Customized according to customer's request
Waterproof M8 Front Panel Mount Connector 3pins Male Fastened IP67 Connector Automotive 6

M8 connector can be used a wide fields like LED, Automation, Sensor, mechanise equipment etc.

• LED lighting , white light , color light etc

• Low current equipement

• Connector be used in narrow environment

• Communication equipement

• Lighting harness
Waterproof M8 Front Panel Mount Connector 3pins Male Fastened IP67 Connector Automotive 7
