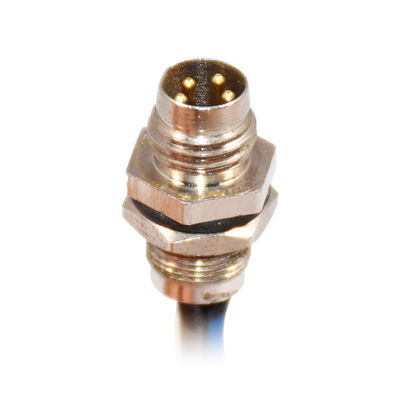

Waterproof Solder Type 3 4 5 8 12 Pin Panel Mount M8 Connector With Wire Pigtail
100
MOQ
Negotiable
Price
Waterproof Solder Type 3 4 5 8 12 Pin Panel Mount M8 Connector With Wire Pigtail
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Shenzhen
Brand Name: RIGOAL
Certification: CE,RoHS
Model Number: M8 panel mount with wire
Payment & Shipping Terms
Packaging Details: 1.Plastic bag;2.Carton;3.As per customer's requirements
Delivery Time: 10-15 work days
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/day
Specifications
Place Of Origin: Guangdong, China
Contact Pin: 3/4/5/6/8 Etc Pin
Current Rating: 4A
Model Number: M8 Panel Mount With Pigtail
Connector Locking System: Solder
IP Rated: IP67/IP68
Application: Industrial,Mobile Automation Equipment
Type: ADAPTER
Mechanical Operation: >500 Mating Cycles
Operating Temperatur: -25℃~85 ℃
Contact Resistance: ≤10mΩ
Material Of Connector: CuZn
Contact Plating: Au(gold Plating)
Product Description

M8 Socket Industrial Wiring Harness 3-8 Core Hole Socket Bullet Type 4 Pin connector Wiring Harness Processing



Application:



The shell is made of copper / zinc alloy, the insulation material is nylon PA66, the insulation resistance is greater than or equal to 100 megohms, the contact resistance is less than or equal to 100 milliohms, the molding material is PVC / TPU, the terminal material is phosphor copper, and the applicable temperature is from -20 +80 degrees Celsius, waterproof grade of IP67, IP68. Can be used for industrial equipment in various fields.



Parameters:



Place of Origin Guangdong,China
Brand Name RIGOAL
Model Number M8 panel mount
Application Industrial equipment in various fields.
Connectors M8
Wire 22awg
Wire length Customized
Wire Color black or Customized
Certification ISO9001, T/S16949, Rohs
MOQ Small quantity can be accepted
Sample Sample can be provided for evaluating
Sevice OED ODM accepted
Delivery Time 3-15 days upon receipt of payment
Packaging Outside carton
Test Professional breakover and pulling force test before goods sent out



Before sales:


The connection wire is one of the types of electronic wiring harnesses, which are widely used in different industry electronic equipment fields, such as electric vehicles, household appliances, communication equipment, automation equipment and other electronic equipment. The electronic wiring harness connection wires with different functions have different production standards The details include wire specifications, thickness of connecting wires, material of electronic wiring harness, etc.



1. Some irregular manufacturers use recycled PVC for the insulation layer and recycled copper, copper-clad aluminum, steel wire or several kinds of hybrids for the core conductor. The large internal resistance of these types of conductors is very harmful to electronic equipment, so you must pay attention when choosing.



2. The insulation layer of the regular connecting wire must be made of brand new anti-oxidation PVC plastic. The core conductor is made of oxygen-free copper, tinned copper or silver-plated copper, etc., which must be manufactured through multiple processes and precision equipment.



3. The high-quality connecting wire must not only have good insulation and heat resistance, but also the core conductor must be twisted or braided in order to have enough density to reduce the resistance value, capacitance and inductance, and output enough electricity flow.



4. Judgment of the quality of the connection wire can not only look at the appearance size, more importantly, look at the thickness of the copper core inside. Because some connecting wires make the rubber skin extremely thick and the copper core is very thin, it is mainly necessary to confirm from the size of the copper core cut surface.

Waterproof Solder Type 3 4 5 8 12 Pin Panel Mount M8 Connector With Wire Pigtail 0Waterproof Solder Type 3 4 5 8 12 Pin Panel Mount M8 Connector With Wire Pigtail 1Waterproof Solder Type 3 4 5 8 12 Pin Panel Mount M8 Connector With Wire Pigtail 2Waterproof Solder Type 3 4 5 8 12 Pin Panel Mount M8 Connector With Wire Pigtail 3Waterproof Solder Type 3 4 5 8 12 Pin Panel Mount M8 Connector With Wire Pigtail 4Waterproof Solder Type 3 4 5 8 12 Pin Panel Mount M8 Connector With Wire Pigtail 5
