Aviation M8 socket auto waterproof 3 4 pins pcb panel mount connector IP67/68 waterproof connector
100
MOQ
negotiations
Price
Aviation M8 socket auto waterproof 3 4 pins pcb panel mount connector IP67/68 waterproof connector
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Shen zhen, China
Brand Name: RIGOAL
Certification: CE,RoSH
Model Number: M8 waterproof connector
Payment & Shipping Terms
Packaging Details: 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.
Delivery Time: 14
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000
Specifications
Connector Insert: TPU/PA
Keywords: M8 Waterproof Connector
Connector Contacts: Brass With Gold Plated
Product Name: 3pin/4pin/5pin/6pin/8pin M8 Circular Connector
Orientation: Straight

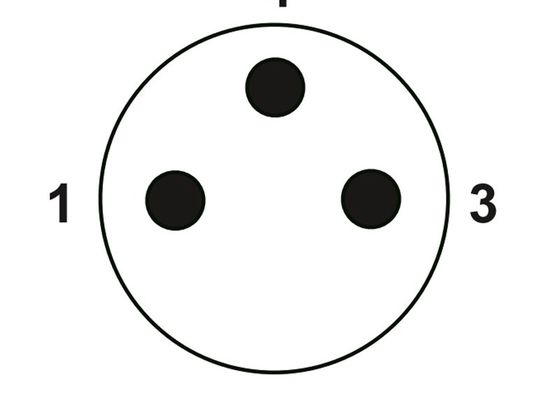

Pins: 3pin
Type: M8 Panel Mount Connector
Model Number: M8 Series Sensor Connectors
Waterproof Rating: IP67/IP68/NEMA6P
Product Description

Aviation M8 Socket Auto Waterproof 3 4 Pins Pcb Panel Mount Connector IP67/68 Waterproof Connector

Aviation M8 socket auto waterproof 3 4 pins pcb panel mount connector IP67/68 waterproof connector 0Aviation M8 socket auto waterproof 3 4 pins pcb panel mount connector IP67/68 waterproof connector 1Aviation M8 socket auto waterproof 3 4 pins pcb panel mount connector IP67/68 waterproof connector 2

Aviation M8 socket auto waterproof 3 4 pins pcb panel mount connector IP67/68 waterproof connector 3

Aviation M8 socket auto waterproof 3 4 pins pcb panel mount connector IP67/68 waterproof connector 4Aviation M8 socket auto waterproof 3 4 pins pcb panel mount connector IP67/68 waterproof connector 5 ISO14001, IP68, IP69K, CE, UL,TUV, NMEA2000, RoHs, etc.



Product Description



Characteristics of M8 Series

General Characteristics
Nunmber of contact 3 4 5 6 8
Locking system screw M8*1.0
Termination solder, moulded on cable or screw clamp
Wire gauge in mm² 0.14/0.25/0.34
Wire gauge in AWG 26/24/22
Shell protection IP67/IP68
Mechanical operation >500 mating cycles
Upper temperature +85℃
Lower temperture -25℃
Electrical Characteristics
Rated voltage 60V 30V
Rated current(40℃) 40V 2A 1.5A
Pollution degree III
Test voltage 500V±15V
Contact resistance ≤10mΩ
Insulation resistance ≥100MΩ
Materials
Pin contact CuZn
Socket contact CuSn
Contact plating Au
Upper temperature PA66(UL 94V-0)
Female insert PA66(UL 94V-0)
Material of cable jacket PVC or PUR
