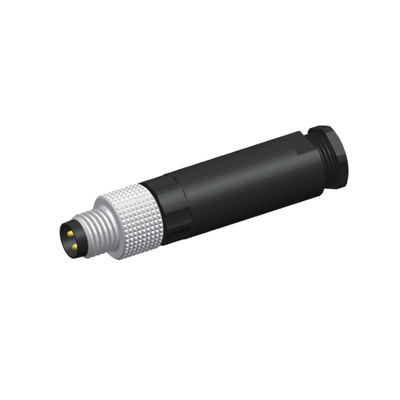

M8 circular 2 3 4 5 pin cable sensor plug IP67 straight cable plug panel front mount socket connector
| Product types | M8 circular 2 3 4 5 pin cable sensor plug IP67 straight cable plug panel front mount socket connector |
| Design Standard | IEC/EN 61984 |
| Cable diameter | Ф 3.5mm~ Ф 5.6mm |
| Shell material | plastic and brass alloy |
| Contact material | copper( silver/ gold plated) |
| Insert material | PA66+GF20% |
| Assemble way | assemble board |
| Crimp mouth diameter | 2.0mm |
| Solder inter diameter | 1mm |
| Rated current/voltage | 4A |
| Operation limit voltage(AC.V.rms) | 30V~60V |
| Withstanding voltage( AC.V.rms) 1minute | 800, 1500 |
| Insulation resistance (MΩ MIN) at DC 500V | 800, 1500 |
