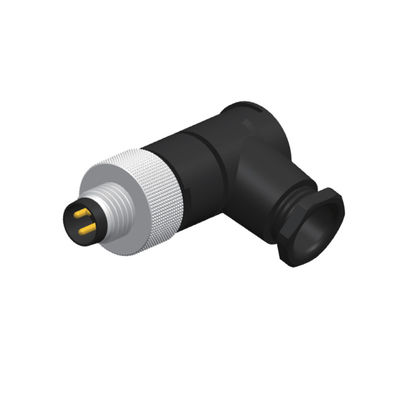

M8 Male 90degree Plastic Screw Assembly Connector ,A/B/D Coded 3pin 4pin 5pin 6pin 8pin
M8 connector provides a pratical economy and flexiable solution for mechanical engineering for small or special industrial field, and meets the requirments of rapid and seamless connectivity within a limited space.
They can reach excellent envoironmental protection at IP65~IP67 in locked condition, these products offer with 3~8pins contacts.
There are many kind of types, such as molding type and panel type, assembly type, splitter type, terminal type and so on.
| Series | M8 |
| Coding | A/B |
| Connection Type | Panel Mount |
| Number of Contacts | 3/4/5/6/8 Pin |
| Gender | Male/Female |
| Orientation | Straight/Angled |
| Termination | Soldering/PCB |
| Rated Current | 3A/1A |
| Operating Voltage | 60V/30V |
| Temperature Range | -25°C ~ + 80°C |
| IP Rating | IP67 |
