3A 60V TPU GF M8 Waterproof Connector 3 PIN Soldering PCB
100
MOQ
5.5
Price
3A 60V TPU GF M8 Waterproof Connector 3 PIN Soldering PCB
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China ShenZhen
Brand Name: Rigoal
Certification: CE , ROSH , IP68
Model Number: Panel mounting
High Light:

TPU GF M8 Waterproof Connector

,

3A 60V M8 Waterproof Connector

,

Soldering PCB M8 Circular Connector

Payment & Shipping Terms
Packaging Details: 46x30x30
Delivery Time: 30work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000
Specifications
Product Name: M8 3PIN Board Rear Mounted Flange Waterproof Connector
Termination: Solder
Insert Material: TPU+GF
Contact Material: Brass With Gold Plated
Overmold Material: Transparent TPU
Coupling Material: Brass With Nickel Plated
Number Of Pole: 3pins
Operate Temperature: -20℃~+80℃
Degree Of Protect: IP67/IP68
Standard: IEC 61076-2-101
Product Description

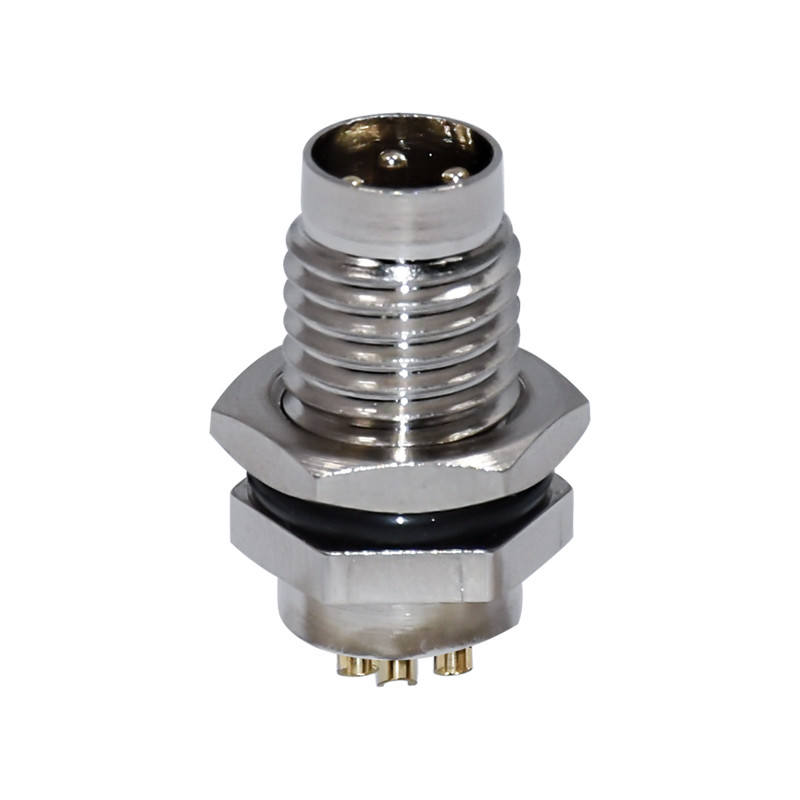

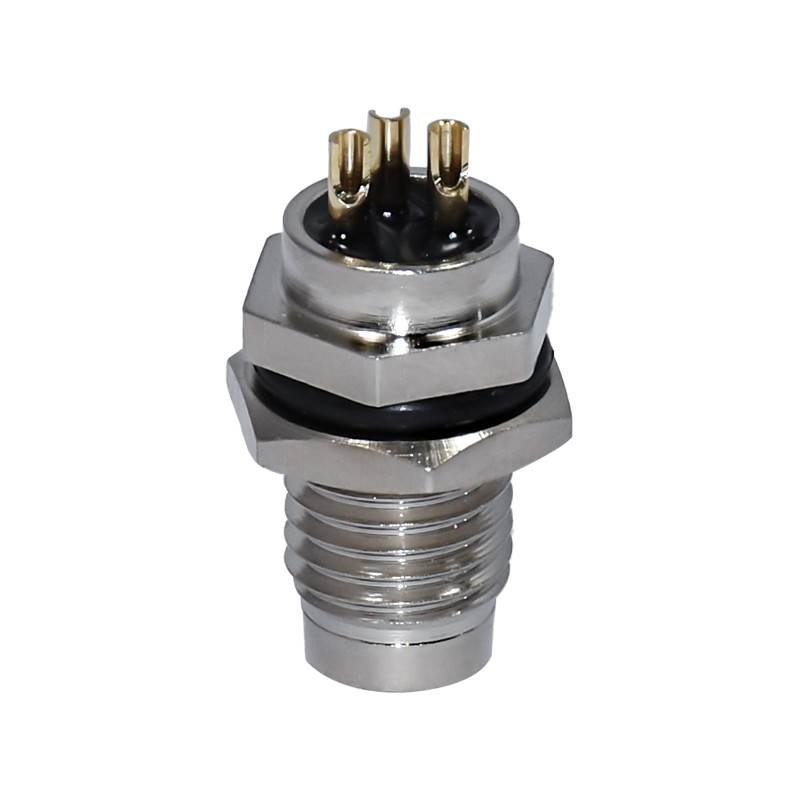

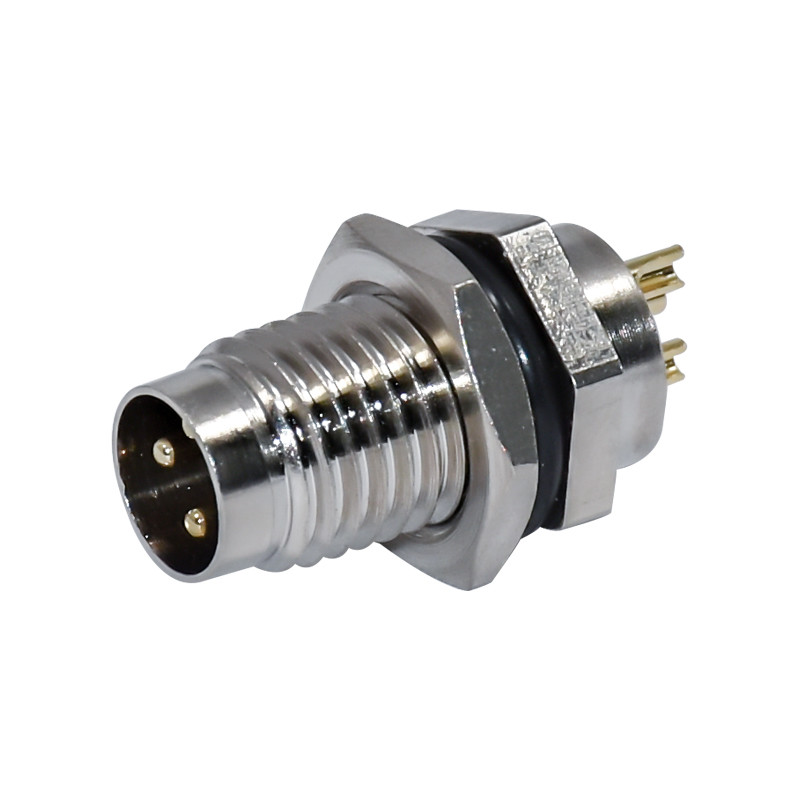

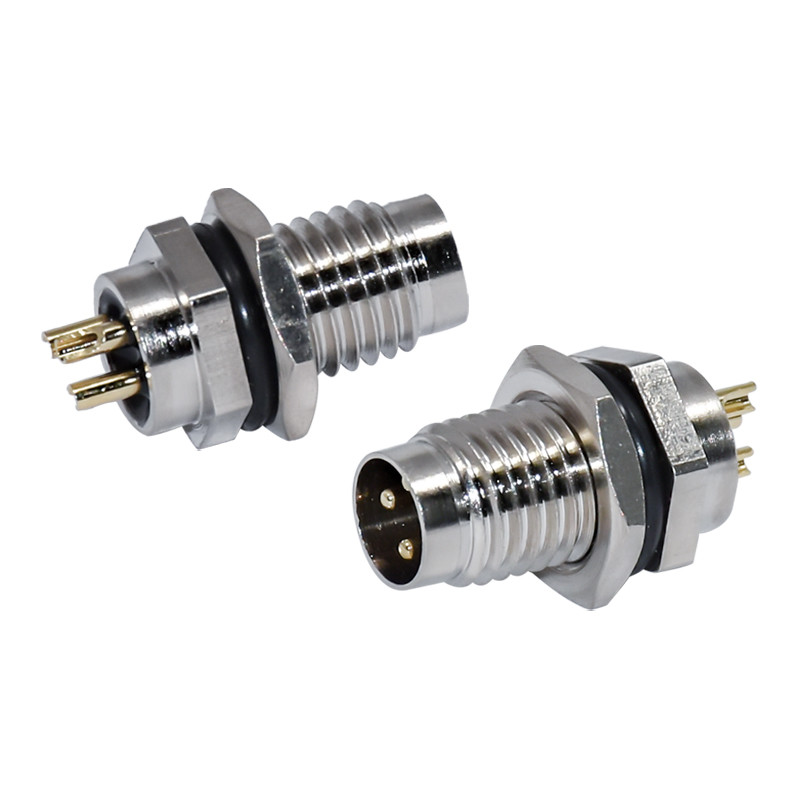

M8 3PIN board rear mounted flange waterproof connector

About M8 connectors:

M8 connector provides a pratical economy and flexiable solution for mechanical engineering for small or special industrial field, and meets the requirments of rapid and seamless connectivity within a limited space.

They can reach excellent envoironmental protection at IP65~IP67 in locked condition, these products offer with 3~8pins contacts.

There are many kind of types, such as molding type and panel type, assembly type, splitter type, terminal type and so on.

Series M8
Coding A/B
Connection Type Panel Mount
Number of Contacts 3/4/5/6/8 Pin
Gender Male/Female
Orientation Straight/Angled
Termination Soldering/PCB
Rated Current 3A/1A
Operating Voltage 60V/30V
Temperature Range -25°C ~ + 80°C

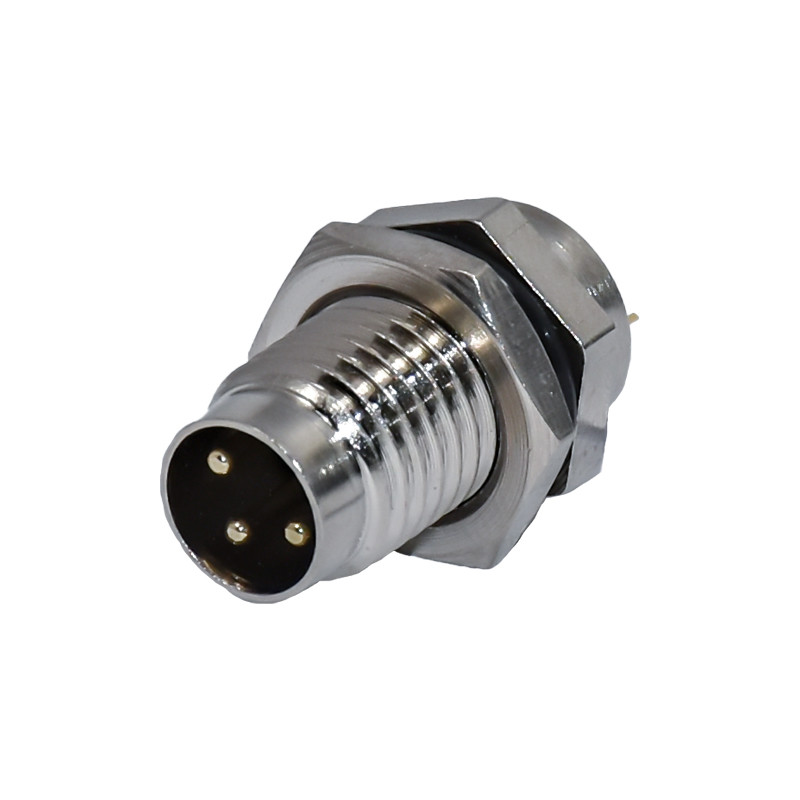

M8  3-pos male .jpg





FAQ

1. Q: What is the necessary information needed for quotation?
A:The series(M5/M8/M10/M12/M23),coding,male or female,pin number,cable length.

2. Q: What is the minimum order quantity(MOQ)?
A:100 pcs or negotiatable.

3. Q: What do the Finecables certifications have?
A: ISO9001:2008


4. Q:What does Finecables can provide for the product’ certification?
A: IP67, IP68, UL, CE and RoHS.

5. Q: Sample lead time?
A: One week.

6. Q: Volume order lead time?
A: 4-5 weeks.

7. Q: Do you provide inspection on the incoming materials before production and inspect the finished products shipment?
A: Yes. We have Incoming material inspection, In process quality check and Outgoing goods quality check.

8. Q: How do you ship the finished product?
A: Based on the customer request.
