Straight Angled 1.5A Solder M8 Waterproof Connector Plastic Vertical 22AWG
100
MOQ
5.5
Price
Straight Angled 1.5A Solder M8 Waterproof Connector Plastic Vertical 22AWG
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China ShenZhen
Brand Name: Rigoal
Certification: CE , ROSH , IP68
Model Number: Plastic vertical
High Light:

Straight Angled M8 Waterproof Connector

,

1.5A Solder M8 Waterproof Connector

,

22AWG M8 Panel Mount Connector

Payment & Shipping Terms
Packaging Details: 46x30x30
Delivery Time: 30work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000
Specifications
Series: M8
Connector Type: Plastic Vertical
Number Of Conntacts: 3/4/5/6/8 Pin
Gender: Female/Male
Orientation: Straight/Angled
Code: A/B Code
Termination: Solder
Rated Current: 4A/2A/1.5A
Operating Voltage: 250V/60V/30V
Temperature Range: -25℃~+80℃
Product Description

M8 connectors of different types wholesale

Product Description

Connector Series: M8
Standard: IEC 61076-2-104
Coding: A
Pins: 3 pin, 4 pin, 5 pin, 8 pin
Gender: Male / Female
Connector Design: Cable plug
Connector Locking System: Fix screw

Waterproof Rating: IP67/IP68
Ambient Temperature: -10~+80



Connector Specification:

Connector Body: TPU


Male Contacts: Brass with gold plated
Screw/Nut: Brass with nickel plated


Waterproof 0-ring: FKM



Electrical Data:
Contact Resistance: ≤5mΩ
Insulation Resistance: ≥100MΩ
Rated Current: 3A~1A
Rated Voltage: 60V~30V




Cable/Wire Specification:
Wire gauge (AWG): 22AWG / 24AWG
Wire gauge (mm²): 0.34mm² / 0.25mm²
Jacket material: PVC
Ambient Temperature: -25°C ~ +85°C

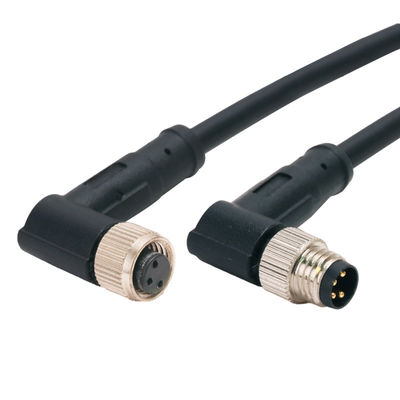

Straight Angled 1.5A Solder M8 Waterproof Connector Plastic Vertical 22AWG 0





Straight Angled 1.5A Solder M8 Waterproof Connector Plastic Vertical 22AWG 1

Packaging & Shipping

Packaging: Individual packed in transparent PE bag with label.

OEM/ODM Packaging: Yes, we can do your own packaging, like do your logo on the PE bag.



Shipping: by DHL, UPS, FeDex, TNT door to door service, by normal air freight, by normal sea freight.



Our Services

• Low cost but good quality in ip67/ip68 waterproof in locked condition with ISO9001 management under efficient service.
• Provide free samples within 2 working days if it is the normal product with existing tooling.
• OEM & ODM is available.





Quality Control

• All materials conform to RoHS, REACH without any harmful substance comprising strickly checked by QC.
• 100% testing for open circuit and short circuit and 100% smooth operation before shipping.
