M8 board end connector, PCB board end connector
M8 board end connectors can be installed in front of the board or rear of the board. PCB DIP pins and solder cup pins are
M8 PCB end connector has A code and B code two kinds. The connection mode of power supply, signal and PCB includes through-holeconnection and plug mode, welding cup jumper connection and immersion brazing of single electronic wire and connector.

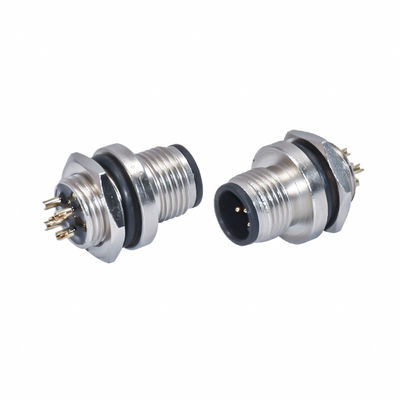

The connection mode of M8 connector and board has front mounting type and rear mounting type. There is also a flanged M8 connector
that locks the connector tightly to the plate with screws and nuts.
