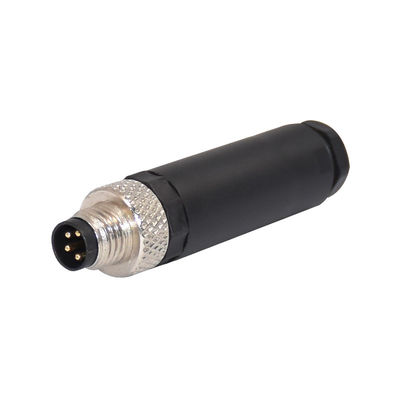

Straight Plastic M8 Waterproof Connector TPU DIN Male M8 Assembly Plug

100
MOQ
negotiable
Price
Straight Plastic M8 Waterproof Connector TPU DIN Male M8 Assembly Plug
Features Gallery Product Description Request A Quote
Features
Specifications
Place Of Origin: Shen Zhen,China
Model Number: M8 Assembly
Application: Automotive
Waterproof Degree: IP67/IP68
Rated Voltage: 60/30 V
Temperature Range: -40~+80
Brand Name: RIGOAL
Type: DIN
Gender: Male
Connector Insert: TPU
High Light:

Straight Plastic M8 Waterproof Connector

,

DIN M8 Waterproof Connector

,

TPU M8 assembly Plug
Basic Infomation
Place of Origin: China ShenZhen
Brand Name: Rigoal
Certification: CE ， Rohs , IP68
Model Number: assembly type
Payment & Shipping Terms
Packaging Details: 46x30x30
Delivery Time: 30work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000
Product Description
Straight Plastic M8 Waterproof Connector TPU DIN Male M8 Assembly Plug 0
Straight Plastic M8 Waterproof Connector TPU DIN Male M8 Assembly Plug 1
Straight Plastic M8 Waterproof Connector TPU DIN Male M8 Assembly Plug 2
Title goes here.
Available Description:
Stainless steel screw is available
IP67/IP68, RoHS, certificate

Generally Description:
Connector Series: M8
Standard: IEC 61076-2-101
Coding: A
Pins: 3 / 4 pins
Gender:Male&Female
Connector Locking System: Fix screw
Waterproof Rating: IP67/IP68
Ambient Temperature: -25°C~+85°C
Title goes here.
Material:
Connector Body: PA66+GF
Contacts: Phosphorus copper with gold plated
Screw/Nut: Brass with nickel plated
Waterproof 0-ring: FKM
Glue: Black epoxy resin
Wire Jacket: PVC

Electrical data:
Rated Current: 1A
Rated Voltage: 60V
Contact Resistance: ≤3mΩ
Insulation Resistance: ≥100MΩ
Straight Plastic M8 Waterproof Connector TPU DIN Male M8 Assembly Plug 3
Specification
item
value
Place of Origin
Shen zhen,China
Brand Name
RIGOAL
Model Number
M8 assembly
Type
DIN
Application
Automotive
Gender
male
Pins
4p, 5P, 3P, 8P, 6P
Coded
A/B
Rated Current
3/1 A
Insert material
PA66+30%GF
Waterproof degree
IP67/IP68
Certification
CE ROHs
Rated Voltage::
60/30 V
Contact material
copper (gold-plated)
Temperature range
-40~+80
Connector insert
TPU
Connector A Housing Gender:
Socket
Packing & Delivery
Straight Plastic M8 Waterproof Connector TPU DIN Male M8 Assembly Plug 4
Straight Plastic M8 Waterproof Connector TPU DIN Male M8 Assembly Plug 5
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
