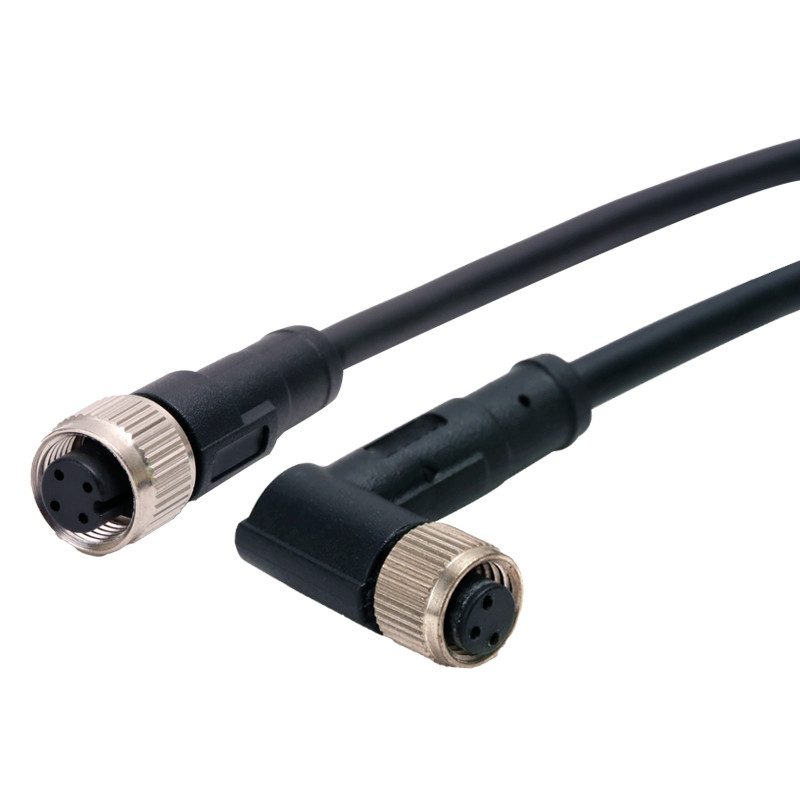

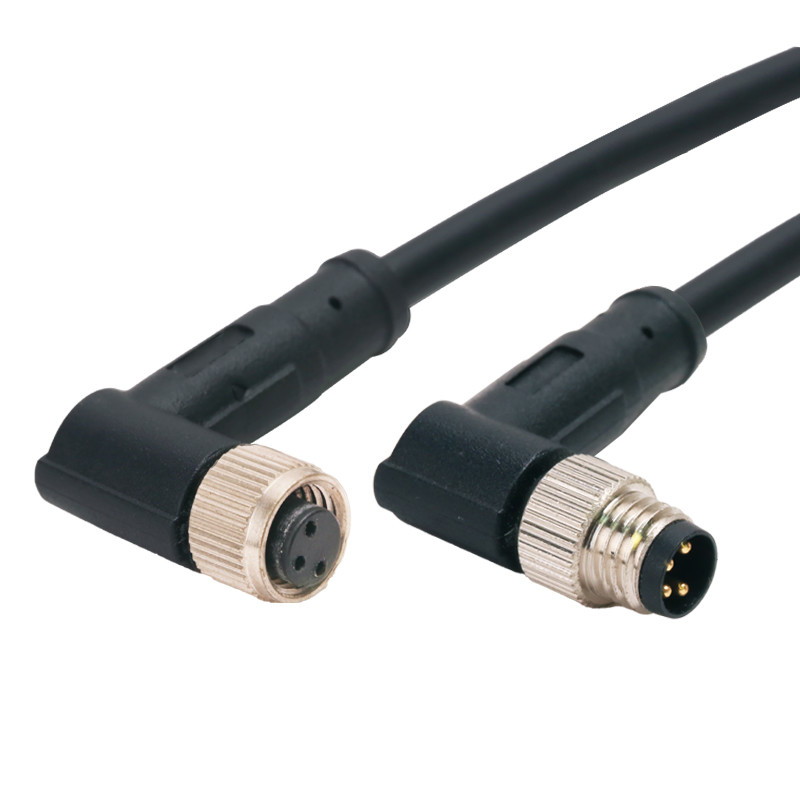

M8 Waterproof Connector is a reliable assembly connector designed for M8 sensors. It features an 8PIN configuration and is made of high-performance materials, such as copper and plastic, with a nickel-plated connector shell. It is rated up to 5A and can operate in a wide temperature range from -40℃ to +105℃. Moreover, it is IP67 rated, which is perfect for harsh environmental conditions. With these features, M8 Waterproof Connector is ideal for applications in industrial, automotive, and commercial sectors.
| Connector Terminal | Connector Insert | Product Name | Connector Shell | Gender | Wire Gauge | Temperature Range | Material | Connector Type | IP Rating |
|---|---|---|---|---|---|---|---|---|---|
| Phosphor Bronze | PA66 | M8 Waterproof Connector | Nickel Plated | Male & Female | 24-20AWG | -40℃~+105℃ | Copper, Plastic | M8 | IP67 |
| M8 Industrail connector | Assembly connector | Molded connector | - | - | - | - | - | - | - |
Rigoal Connector's M8 Waterproof Connector is a highly reliable and durable industrial connector with an IP rating of IP67. It is made of durable copper and plastic materials, and features a nickel plated connector shell. The M8 Waterproof Connector has a minimum order quantity of 100 pieces and is available with 2, 3, 4, 5, 7, 8, 9, 12, 14, 15, 17, and 19 pins. It is certified by IP67, IP68, CE, RECP, and ROSH, and is available at a negotiable price. Delivery times are generally 7-15 days, and the connectors are packaged in boxes. With a supply ability of 1000000, the M8 Waterproof Connector is suitable for a wide range of industrial applications, including M8 industrial connector, M8 adapter, molded connector, and waterproof connector.
Brand Name: Rigoal connector
Model Number: M8
Place of Origin: Shenzhen,China
Certification: IP67;IP68;CE;RECP;ROSH.
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: BOX
Delivery Time: 7-15 days
Payment Terms: EXW
Supply Ability: 1000000
Pin Number: 2/ 3/ 4/ 5/ 7/ 8/ 9/ 12/ 14/ 15/ 17/ 19
Voltage Rating: 250V
IP Rating: IP67
Cable Outer Diameter: 4.0-8.0mm
Material: Copper, Plastic
Molded connector, M8 4PIN connector, M8 Waterproof Connector
We offer technical support and services for M8 Waterproof Connectors, including:
If you have any questions or need assistance with your M8 Waterproof Connector, please contact us at support@example.com.
