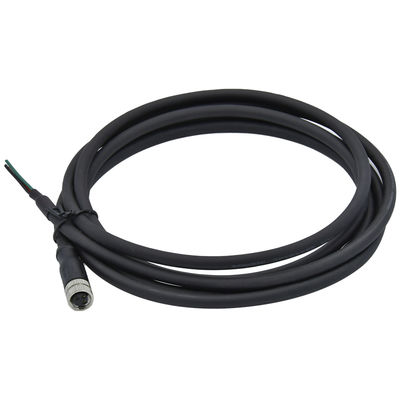

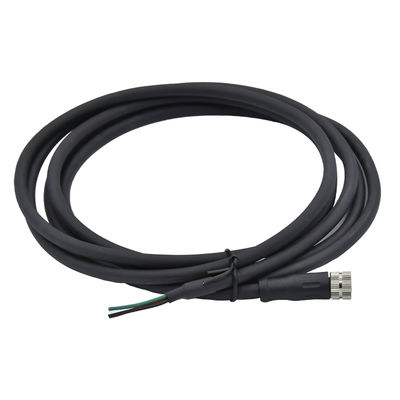

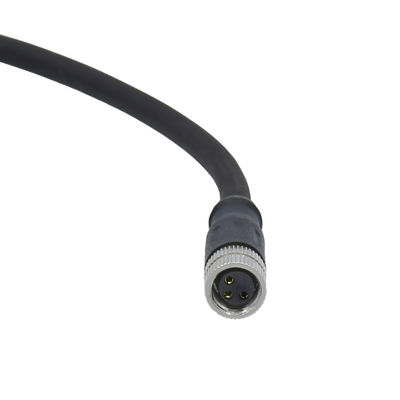

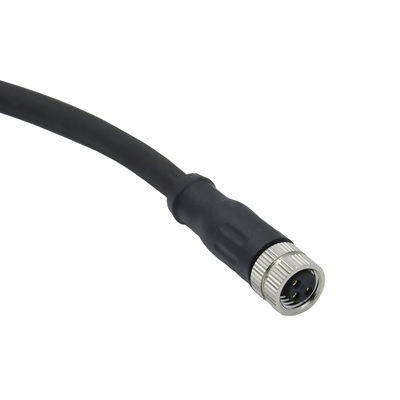

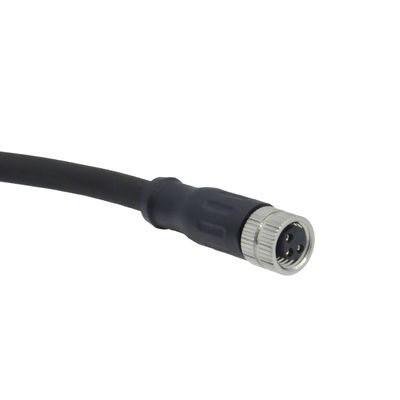

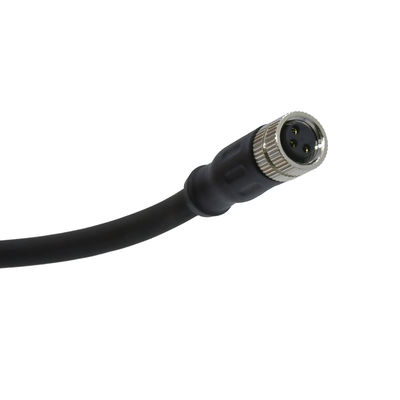

M8 Waterproof Extension Cable Connector 3 4 5 6 8pin Straight Male Plug M8 Overmolded Connector to Open
Product Features
- M8 circular connector with M8*1.0 screw locking
- Connector over-moulded on cable
- Threaded ring with vibration resistance
- 2, 3, 4, 5, 6, 8 poles available
- 2 m and 5 m cable length (PVC/PUR) - Other lengths customizable
- Shield and Un-shield versions available
- Meets IP67/IP68 waterproof requirements
- M8 extension cable or flying leads (open cable ends) with good oil/chemical resistance
General Specifications
| Products name | Waterproof M8 Circular Connector Cable |
| Color | Regular: Blue/Green/Black or OEM Color |
| Code | A/B/D Code |
| Orientation | Straight / Right Angle |
| Contact material | CuZn, TPU or PVC |
| Mechanical operation | >500 mating cycles |
| Rated Voltage | 30V for 5/6/8 pin, 60V for 3/4 pin |
| Rated Current | 1.5A/2A/3A/4A |
| Protection level | IP67/IP68 Waterproof |
| Contact resistance | ≤10mΩ |
| Certificate | ISO9001/CE/ROHS |
| Temperature Range | -25℃~85 ℃ |
Technical Data
Packaging & Delivery
Packaging: Each piece is placed in a small waterproof PE bag, then packed in a carton (approximately 200 pieces per carton, size: 46×30×30 cm). OEM/ODM packaging available upon request.
Shipping: Various shipping methods available according to customer requirements.
About Rigoal
Founded in 2013, Rigoal specializes in producing various waterproof cables and connectors (M8, M12, M16, M23, D-SUB) for applications in sensors, industrial equipment, transportation, medical devices, LED displays, and more. Our products are equivalent to world-famous brands and are exported globally.
Customer Foremost, Service First, Quality First is our company philosophy. We have agents and customers worldwide and are highly regarded for our products and service.
