M8 Waterproof Circular Connector with IP67/IP68 Protection 3-8 Pin Configurations and PA66+GF Material for Industrial Sensors

20
MOQ
CN¥4.53-8.36
Price
M8 Waterproof Circular Connector with IP67/IP68 Protection 3-8 Pin Configurations and PA66+GF Material for Industrial Sensors
Features Gallery Product Description Request A Quote
Features
Specifications
Gender: Male & Female
Connector Type: Soldering
Rated Current: 1.5A-4A
Rated Voltage: 30-60V
Number Of Cores: 3/4/5/6/8 Pin
Temperature Range: -25℃~85 ℃
Protection Level: IP68/IP67 Waterproof
Screw Locking: M8*1.0

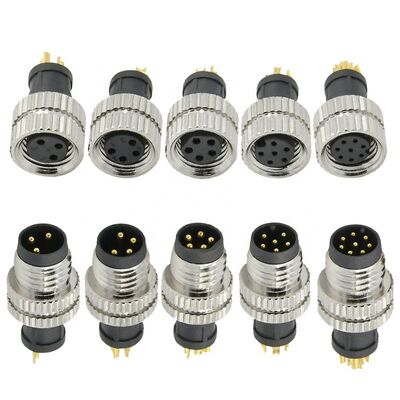

Pin Configurations: 3, 4, 5, 6, 8 Positions
Connector Body: PA66+GF
Contact Material: Phosphorus Copper With Gold Plated
Shell Material: Plastic(TPU)/Metal(CuZn)
Screw/Nut Material: Brass With Nickel Plated
Cable Jacket: PVC/PUR
Contact Resistance: ≤10mΩ
Highlight:

IP67/IP68 Waterproof M8 Connector

,

3-8 Pin M8 Circular Connector

,

PA66+GF M8 Sensor Connector

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: RIGOAL
Model Number: M8
Payment & Shipping Terms
Product Description
Product Description
M8 Waterproof Circular Connector with IP67/IP68 Protection 3-8 Pin Configurations and PA66+GF Material for Industrial Sensors 0

Product Features:
- M8 circular connector with M8*1.0 screw locking
- Easy quick connect and disconnect coupling - Pin configurations: 3, 4, 5, 6, 8, positions - A, B, D coding available - Shield and un-shield Version Available with metal or plastic housing - Meets IP67/IP68 waterproof requirements - Temperature Range: -25°C ~ + 85°C
General Information
Product name
Waterproof M8 Circular Connector
Gender
Male and Female
Pin
3/4/5/6/8 pin
Orientation
Straight/Right Angle/Y T type
Connector Body
PA66+GF
Contact Material
Phosphorus copper with gold plated
Shell Material
Plastic(TPU)/Metal(CuZn)
Screw/Nut Material
Brass with nickel plated
Cable Jacket
PVC/PUR
Rated Voltage
30V for 5/6/8 pin
60V for 3/4 pin
Rated Current
1.5A/2A/3A/4A
Certificate
ISO9001,CE,IP68,ROHS
Protection level
IP67/IP68 waterproof
Temperature Range
-25℃~85 ℃
Contact Resistance
≤10mΩ
Mechanical Operation
>500 mating cycles
M8 Waterproof Circular Connector with IP67/IP68 Protection 3-8 Pin Configurations and PA66+GF Material for Industrial Sensors 2

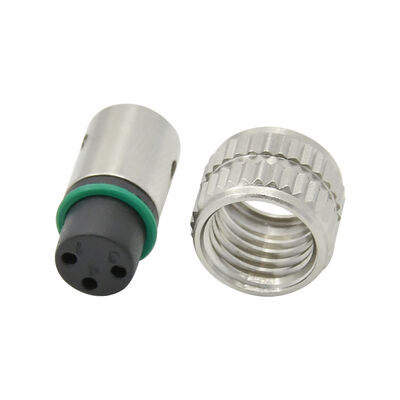

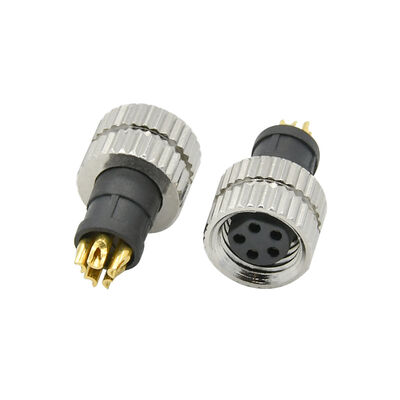

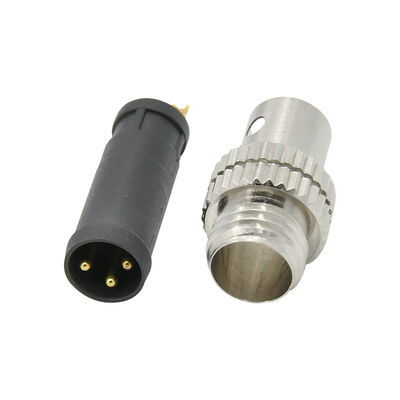

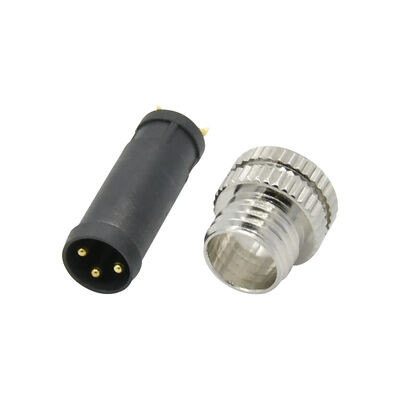

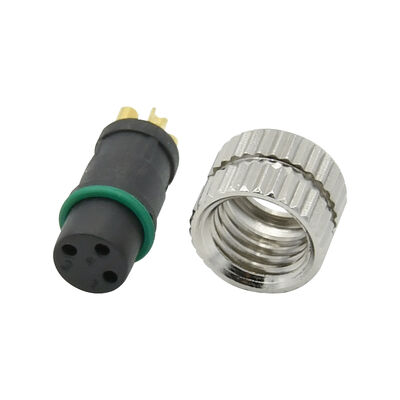

Details Images
M8 Waterproof Circular Connector with IP67/IP68 Protection 3-8 Pin Configurations and PA66+GF Material for Industrial Sensors 4
M8 Waterproof Circular Connector with IP67/IP68 Protection 3-8 Pin Configurations and PA66+GF Material for Industrial Sensors 6
M8 Waterproof Circular Connector with IP67/IP68 Protection 3-8 Pin Configurations and PA66+GF Material for Industrial Sensors 8
M8 Waterproof Circular Connector with IP67/IP68 Protection 3-8 Pin Configurations and PA66+GF Material for Industrial Sensors 10
Packing & Delivery
M8 Waterproof Circular Connector with IP67/IP68 Protection 3-8 Pin Configurations and PA66+GF Material for Industrial Sensors 12
M8 Waterproof Circular Connector with IP67/IP68 Protection 3-8 Pin Configurations and PA66+GF Material for Industrial Sensors 14
Packaging:
1.Our standard packaging: * About 50pcs put in a plastic box
* Wrap the product with thin film along with the plastic box
* Put all boxes in a small carton,the size of carton is 46*30*30 cm
2.OEM/ODM package is available.

Shipping:
According to customer request, we can choose different convenient shipping way.
Application
M8 Waterproof Circular Connector with IP67/IP68 Protection 3-8 Pin Configurations and PA66+GF Material for Industrial Sensors 16
Why Choose Us
M8 Waterproof Circular Connector with IP67/IP68 Protection 3-8 Pin Configurations and PA66+GF Material for Industrial Sensors 18
M8 Waterproof Circular Connector with IP67/IP68 Protection 3-8 Pin Configurations and PA66+GF Material for Industrial Sensors 20
M8 Waterproof Circular Connector with IP67/IP68 Protection 3-8 Pin Configurations and PA66+GF Material for Industrial Sensors 22
Company Profile
M8 Waterproof Circular Connector with IP67/IP68 Protection 3-8 Pin Configurations and PA66+GF Material for Industrial Sensors 24

Rigoal was founded in 2013, and devoted ourselves to be the high quality & efficient manufacturer. We specialized in producing waterproof cables & waterproof connectors such as M8, M12, M16, M23, D-SUB. Mainly applied in sensors, industrial equipment, transportation facilities, medical devices, LED displays, outdoor advertisements, communication devices,wind energy devices, vessel industrial and Surrounding the car electronics industry and so on , they are equivalent to some world-famous brands.
Our products mainly exported to developed industrial countries such as America, Austria, Sweden, Belgium, Germany, Netherlands, British, Spain and Asian, Israel. Meanwhile, we have agents and customers all over the world and speaking highly of by our customers. Our philosophy and purpose is: Customer Foremost, Service First,Quality First.
FAQ
Q1: Are you a factory?
A: Yes, we are the professional manufacturer of connectors and precision mold since 2013

Q2: How about the certificates?
A:ISO 9001, ISO14001, TUV, UL, RoHS, REACH etc.

Q3: How about the payment terms?
A: we can do 30% deposit , 70% deposit before shipment and balance against shipment

Q4: How long is the delivery time?
A: We ensure the fast delivery. Generally, it will take 2-5 days for small order or the stock goods; 10 to 15 for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.

Q5:what can you buy from us?
waterproof cables, waterproof connectors, power connectors, signal connectors, network connectors, etc., such as, M5, M8,M12,M16,M23, D-SUB, RJ45, AISG,SP series connectors, etc.

Q6: what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,CPT,DDP,DDU;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
