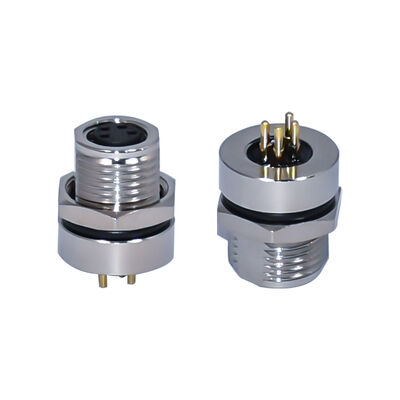

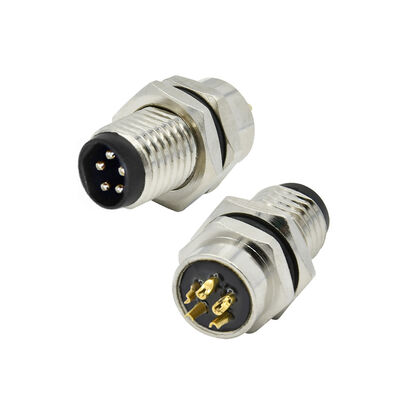

Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors

100
MOQ
CN¥12.41-24.13
Price
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Automotive
Contact Material: Copper Gold Plating
Rated Current: 3A
Rated Voltage: 60 V
Gender: Male/Female
Type: Adapter
Pin: 3 4 5 6 8 Pin
Coding: A B Coding
Rated Current: 1.5A For 6 8 Pin/3A For 3 4 5 Pin
Rated Voltage: 30V For 5 6 8 Pin/60V For 3 4 Pin
Operating Temperature: -25°C~85°C
Degree Of Protection: IP67/IP68
Connector Locking System: Solder/Pcb/Wire
Mechanical Operation: >500 Mating Cycles
Contact Resistance: ≤10mΩ
Material Of Connector: CuZn,PA
Highlight:

M8 waterproof connector male female

,

M8 metal panel mount socket

,

M8 waterproof receptacle 3-8 pins
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Rigoal
Model Number: M8-PM
Payment & Shipping Terms
Product Description
Product Paramenters
Place of Origin
China
Operating Temperature
-25°C~85°C
Guangdong
Degree of protection
IP67/IP68
Brand
Rigoal
Connector locking system
Solder/Pcb/Wire
Connector name
M8 Panel mount
Mechanical operation
>500 mating cycles
Pin
3 4 5 6 8 pins
Contact resistance
≤10mΩ
Coding
A B coding
Material of connector
CuZn,PA
Gender
Male/Female
Contact plating
Au(gold plating)
Rated current
1.5A for 6 8 pin/3A for 3 4 pin
Filling material
Epoxy resin
Rated voltage
30V for 5 6 8 pin/60V for 3 4 pin
Custom-made model
Acceptable
Product Introduction
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 0




M8 Panel Mount
* We can provide you M8 solder panel mount,M8 PCB panel mount and M8 panel mount with wire.
* A or B code can be chosen and number of pins are 3 4 5 6 8.
* If you need customization, please provide enough detailed customization requirements, or you can tell us the effect you want to
achieve, and our engineering department will give suggestions.
Panel mounting product
classification
All the pictures take the 3 pins as an example

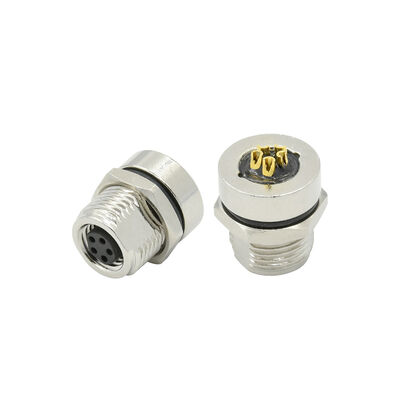

Solder type
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 2
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 4
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 6
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 8
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 10
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 12
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 14
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 16

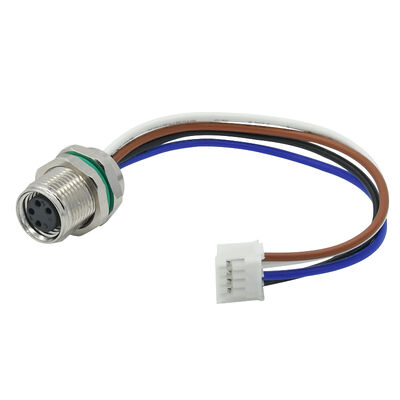

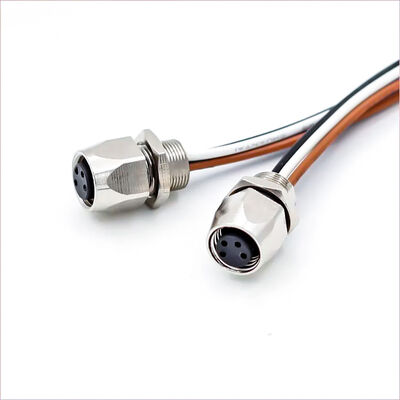

With wire type
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 18
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 20
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 22
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 24
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 26
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 28
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 30
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 32

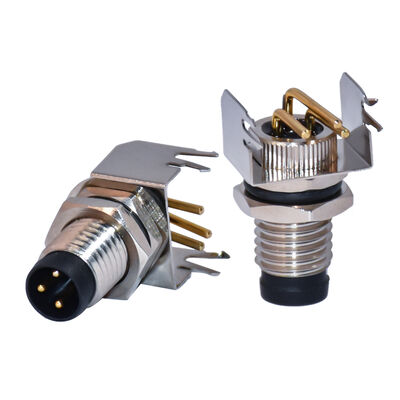

PCB type
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 34
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 36
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 38
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 40
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 42
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 44
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 46
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 48
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 50
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 52
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 54
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 56
We also have other structural panels.
For more details,please feel free to contact us and we will share you our catalog.

Product Structure
detailed
We strictly control every detail and provide you with high-quality products
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 58

Panel installation
Choose front or rear lock according to your needs
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 60
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 62
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 64
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 66

Interface standard
and number of cores
We can support A/B interface standards and 3/4/5/6/8 pins customization
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 68

Any interest,pls no hesitate to contact us at any time.
We will share you more details and quote for you asap after confirming the specifications

Packing&Shipping
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 70

1.Panel without wire:Put dozens of pieces on a tray,wrap the tray tightly with protective film. 2.Panel with wire:Put dozens of pieces in a bag. 3.Put the trays or the bags in the carton. 4.According to customer needs
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 72

We will choose different transportation modes according to customers' needs,which more convenient ,which we will choose! Usually is DHL ,Fedex ,TNT,UPS ,Air shipping ,sea shipping ,training shipping etc.
Company Profile
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 74
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 76
Rigoal was founded in 2013, and devoted ourselves to be the high quality & efficience manufacturer. We specialized in producing waterproof cables & waterproof connectors such as M8, M12, M16, M23, D-SUB. Mainly applied in sensors, industrial equipments,transportation facilities, medical devices, LED displays, outdoor advertisements, communication devices,wind energy devices,vessel industrial and Surrounding the car electronics industry and so on.

Our products mainly exported to developed industrial countries such as America, Austria, Sweden, Belgium, Germany,Netherlands, British, Spain and Asian, Israel. Meanwhile, we have agents and customers all over the world and speaking highly of by our customers.

Our philosophy and purpose is: Customer Foremost, Service First. Quality first. Warmly welcome you join in us,your support will be always our motivation. Let's go forward hand in hand to create a brilliant future.

Rigoal----Your Best Connection!
Certifications
Waterproofing m8 receptacle 3 4 5 6 8 pins socket male female wall panel mount m8 metal connectors 78
FAQ
Q1: Are you a factory? A: Yes, we are a professional manufacturer of waterproof connectors,welcome to visit our factory. Q2: How about the certificates? A:ISO 9001,CE, RoHS, IP68 etc. Q3: How about the payment terms? A: we can do 30% deposit , 70% deposit before shipment and balance against shipment. Q4: How long is the delivery time? A: Often within two weeks, more often within a few days. Q5: How can you guarantee quality? A: Always a pre-production sample before mass production;Always final inspection before shipment. Q6: What can you buy from us? A: Waterproof cables, waterproof connectors, power connectors, signal connectors, network connectors, etc., such as M5, M8,M9,M12,M16,M23,M12 to Rj45, DSUB, USB, SP series,7/8'',K series,GX series,Solenoid valve connector and so on.
