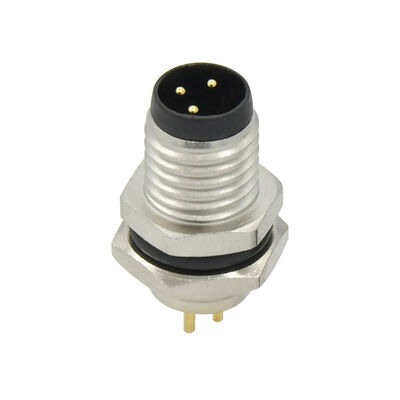

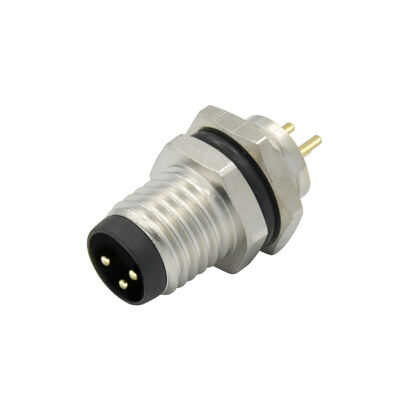

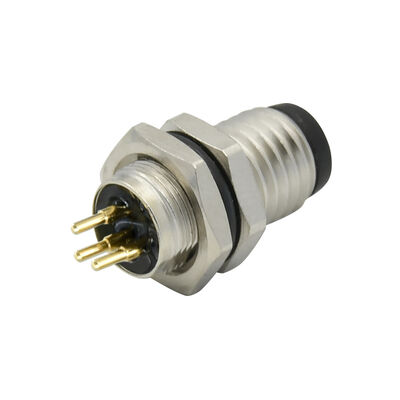

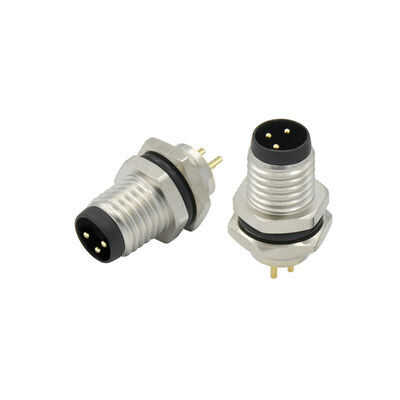

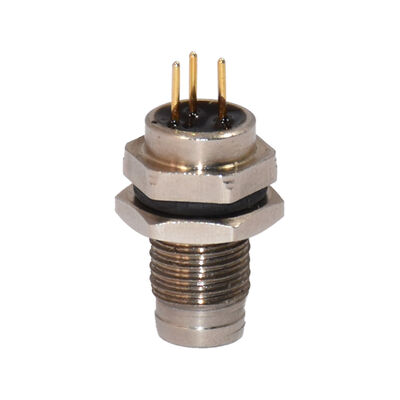

M8 4PIN 5PIN 8PIN Right Angled PCB Type Connector 90 Degree Panel Mount Connector

20
MOQ
CN¥26.88-40.67
Price
M8 4PIN 5PIN 8PIN Right Angled PCB Type Connector 90 Degree Panel Mount Connector
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Electric Bike
Contact Material: Copper Gold Plating
Rated Current: 1.5 A, 3A, 4 A, 1.5A-4A
Rated Voltage: 30/60V, 30-60V
Gender: Female / Male
Type: Adapter
Coding: A B D
Operating Temperature: -25℃~85 ℃
Degree Of Protection: IP67/IP68
Connector Locking System: Solder
Mechanical Operation: >500 Mating Cycles
Contact Resistance: ≤10mΩ
Material Of Connector: CuZn,PA
Contact Plating: Au(gold Plating)
Highlight:

M8 right angled PCB connector

,

M8 waterproof panel mount connector

,

90 degree M8 8PIN connector

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Rigoal
Model Number: M8
Payment & Shipping Terms
Product Description
Specification
Product Description
M8 4PIN 5PIN 8PIN Right Angled PCB Type Connector 90 Degree Panel Mount Connector 0


Connector Series: M8
* M8 Panel mount waterproof according to IEC 61076-2-104
* M8 circular connector with M8*1.0/M16*1.0 screw locking
* Waterproof rating is IP67/IP68

* Coding: A/B/D
* Gender:Female and Male
* Connector Design: panel mount
* Color: Brass/Zinc or customized
* Operation Temperature: -25℃~+85℃

Specification
General Information
Product name
M8 waterproof panel mount connector
Gender
Male and Female
Code
A/B/D coded
Locking way
Front/Rear fastened
Termination
PCB/Solder with wire/cable
Color
Black or custom
Rated Current
3/4 pin:4A, 5pin:3A, 6pin:2A, 8pin:1.5A
Rated Voltage
30V for 5/6/8 pin,60V for 3/4 pin
Material of contacts
Au(gold plating)
Wire material
PVC/PUR
Material of housing
Brass/Zinc diecasting nickel plated
Protection level
IP67/IP68 Waterproof
Temperature Range
-25℃~85 ℃
Mechanical operation
>500 mating cycles
M8 4PIN 5PIN 8PIN Right Angled PCB Type Connector 90 Degree Panel Mount Connector 2
M8 4PIN 5PIN 8PIN Right Angled PCB Type Connector 90 Degree Panel Mount Connector 4
M8 4PIN 5PIN 8PIN Right Angled PCB Type Connector 90 Degree Panel Mount Connector 6
M8 4PIN 5PIN 8PIN Right Angled PCB Type Connector 90 Degree Panel Mount Connector 8
M8 4PIN 5PIN 8PIN Right Angled PCB Type Connector 90 Degree Panel Mount Connector 10
M8 4PIN 5PIN 8PIN Right Angled PCB Type Connector 90 Degree Panel Mount Connector 12
M8 4PIN 5PIN 8PIN Right Angled PCB Type Connector 90 Degree Panel Mount Connector 14
Packing & Delivery
M8 4PIN 5PIN 8PIN Right Angled PCB Type Connector 90 Degree Panel Mount Connector 16
M8 4PIN 5PIN 8PIN Right Angled PCB Type Connector 90 Degree Panel Mount Connector 18
Packaging:
1.Our standard packaging: * About 50pcs put in a plastic box
* Wrap the product with thin film along with the plastic box
* Put all boxes in a small carton,the size of carton is 46*30*30 cm
2.OEM/ODM package is available.

Shipping:
According to customer request, we can choose different convenient shipping way.
