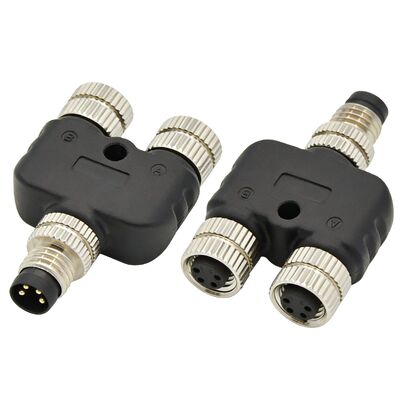

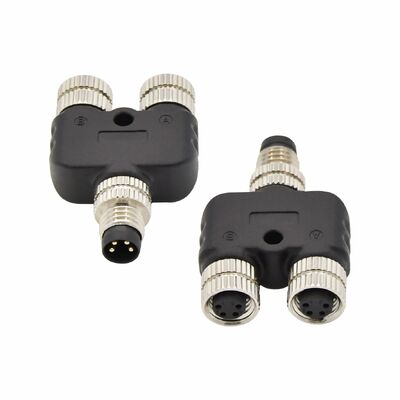

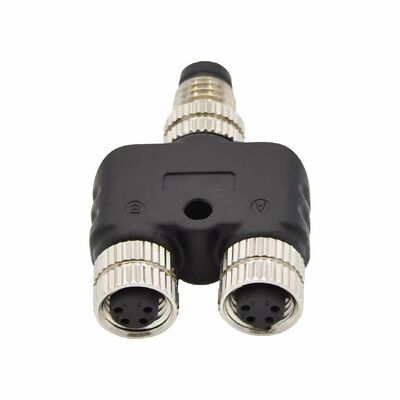

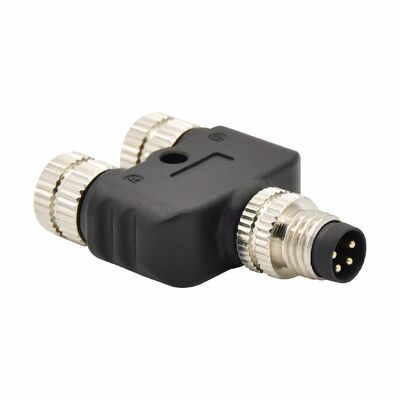

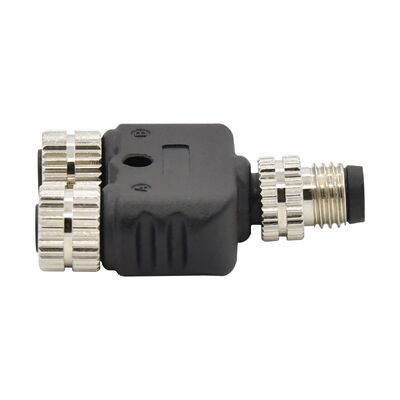

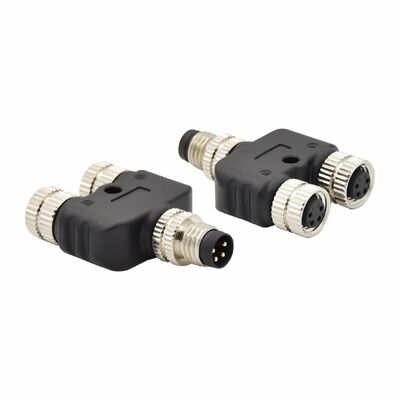

Rigoal Y Type 34568pin M8 Waterproof Connector Socket Header ABD Port Male and Female IP68 Connector Factory

10
MOQ
$1.30-1.50
Price
Rigoal Y Type 34568pin M8 Waterproof Connector Socket Header ABD Port Male and Female IP68 Connector Factory
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Automotive
Contact Material: Copper Gold Plating
Rated Current: 1.5 A, 3A, 4 A, 1.5-4A
Rated Voltage: 60 V, 30-60V
Gender: Male/Female
Type: Adapter
Product Name: M8 Panel Mount With Wire
Color: Regular Color
Material: PVC;PUR
PIN: 3 ,4 ,5,6, 8 PIN
Coding: A Code, B Code D Code
Temperature Range: -25C ~ 85C
Waterproof Level: IP67/IP68
Certificate: CE/ISO9001/RoHS/IP68
Highlight:

M8 waterproof connector Y type

,

M8 waterproof connector IP68

,

M8 waterproof connector male female

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Rigoal
Model Number: M8
Payment & Shipping Terms
Product Description
Product Description
Rigoal Y Type 34568pin M8 Waterproof Connector Socket Header ABD Port Male and Female IP68 Connector Factory 0

Product Features:
- M8 circular connector with M8*1.0 screw locking
- Easy quick connect and disconnect coupling - Pin configurations: 3, 4, 5, 6, 8, positions - A, B, D coding available - Shield and un-shield Version Available with metal or plastic housing - Meets IP67/IP68 waterproof requirements - Temperature Range: -25°C ~ + 85°C
General Information
Product name
Waterproof M8 Circular Connector
Gender
Male and Female
Pin
3/4/5/6/8 pin
Orientation
Straight/Right Angle/Y T type
Connector Body
PA66+GF
Contact Material
Phosphorus copper with gold plated
Shell Material
Plastic(TPU)/Metal(CuZn)
Screw/Nut Material
Brass with nickel plated
Cable Jacket
PVC/PUR
Rated Voltage
30V for 5/6/8 pin
60V for 3/4 pin
Rated Current
1.5A/2A/3A/4A
Certificate
ISO9001,CE,IP68,ROHS
Protection level
IP67/IP68 waterproof
Temperature Range
-25℃~85 ℃
Contact Resistance
≤10mΩ
Mechanical Operation
>500 mating cycles
Rigoal Y Type 34568pin M8 Waterproof Connector Socket Header ABD Port Male and Female IP68 Connector Factory 2
Details Images
Rigoal Y Type 34568pin M8 Waterproof Connector Socket Header ABD Port Male and Female IP68 Connector Factory 4
Rigoal Y Type 34568pin M8 Waterproof Connector Socket Header ABD Port Male and Female IP68 Connector Factory 6
Rigoal Y Type 34568pin M8 Waterproof Connector Socket Header ABD Port Male and Female IP68 Connector Factory 8
Rigoal Y Type 34568pin M8 Waterproof Connector Socket Header ABD Port Male and Female IP68 Connector Factory 10
Packing & Delivery
Rigoal Y Type 34568pin M8 Waterproof Connector Socket Header ABD Port Male and Female IP68 Connector Factory 12
Rigoal Y Type 34568pin M8 Waterproof Connector Socket Header ABD Port Male and Female IP68 Connector Factory 14
Packaging:
1.Our standard packaging: * About 50pcs put in a plastic box
* Wrap the product with thin film along with the plastic box
* Put all boxes in a small carton,the size of carton is 46*30*30 cm
2.OEM/ODM package is available.

Shipping:
According to customer request, we can choose different convenient shipping way.
Application
Rigoal Y Type 34568pin M8 Waterproof Connector Socket Header ABD Port Male and Female IP68 Connector Factory 16
Why Choose Us
Rigoal Y Type 34568pin M8 Waterproof Connector Socket Header ABD Port Male and Female IP68 Connector Factory 18
Rigoal Y Type 34568pin M8 Waterproof Connector Socket Header ABD Port Male and Female IP68 Connector Factory 20
Rigoal Y Type 34568pin M8 Waterproof Connector Socket Header ABD Port Male and Female IP68 Connector Factory 22
Company Profile
Rigoal Y Type 34568pin M8 Waterproof Connector Socket Header ABD Port Male and Female IP68 Connector Factory 24

Rigoal was founded in 2013, and devoted ourselves to be the high quality & efficient manufacturer. We specialized in producing waterproof cables & waterproof connectors such as M8, M12, M16, M23, D-SUB. Mainly applied in sensors, industrial equipment, transportation facilities, medical devices, LED displays, outdoor advertisements, communication devices,wind energy devices, vessel industrial and Surrounding the car electronics industry and so on , they are equivalent to some world-famous brands.
Our products mainly exported to developed industrial countries such as America, Austria, Sweden, Belgium, Germany, Netherlands, British, Spain and Asian, Israel. Meanwhile, we have agents and customers all over the world and speaking highly of by our customers. Our philosophy and purpose is: Customer Foremost, Service First,Quality First.
