Waterproof Female Solenoid Cable Connector With Molded Onlead
100pcs
MOQ
$0.7-$1.5
Price
Waterproof Female Solenoid Cable Connector With Molded Onlead
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Rigoal
Certification: CE
Model Number: Type B
High Light:

9.0mm Solenoid Cable Connector

,

6.0mm Solenoid Cable Connector

,

din43650b connector

Payment & Shipping Terms
Packaging Details: 55*43*33CM/CTN, 100PCS/CTN
Delivery Time: 7-10days
Supply Ability: 30000pcs per week
Specifications
Contacts: 2+PE
Connector Design: Female Connector
Termination: Screw Clamp
Degree Of Protection: IP65
Contact Material: CuSn (bronze)
Contact Plating: Ni (nickel)
Housing Material: PA
Rated Current (40 °C): 10A
Connector Type: DIN 43650 B
Usage: Solenoid Valves, Automotive, Machines
Product Description

Solenoid Valve Connectors Waterproof Female Valve Cable Socket With Molded-Onlead



Product information



1. Form A connectors are currently available in PG 9, PG 11, M16, or 1/2" NPT thread sizes.

2. Form B features PG 9 or 1/2" NPT threads, while Form C connectors are only available with PG 7 thread.

3. DIN 43650 refers to the set of standards made by DIN (Deutsches Institut fur Normung), which is the German standard setting organization.

4. High quality solenoid valve connectors and over-molded solenoid cables for pneumatic solenoid air valves

5. DIN 43650A standard connectors can be rotated in 90 degree intervals according to the coil pin orientation



General Details

Contacts: 2+PE

Connector design: female connector (panel mount)

Connector locking system: central bolt

Termination: screw clamp

Wire gauge (mm): min. 0,34 mm², max. 1,5 mm²

Wire gauge (AWG): min. AWG 22, max. AWG 16

Cable outlet: 6.0 - 8.0 mm

Upper limit temperature: 120 °C

Lower limit temperature: -30 °C



Electrical values

Rated current (40 °C): 10 A

Rated voltage: 250 V

Rated impulse voltage: 4000 V

Pollution degree: 3

Overvoltage category: III

Insulating material group: III

Volume resistivity: ≤ 15 mΩ

Insulation resistance: ≥ 10¹⁰Ω

EMC compliance: not shielded

Degree of protection: IP65

Mechanical operation: > 50 Mating cycles



Material

Contact material: CuSn (bronze)

Contact plating: Ni (nickel)

Contact body material: PA (UL 94 HB)

Housing material: PA



Cable gland PG9 PG11
Suitable cable size 4.5-7.0mm 6.0-9.0mm
Conduct size Max. 1.5mm²
Screw  Stell with Zn plated
Contact  PS with silver plated

Component part drawing

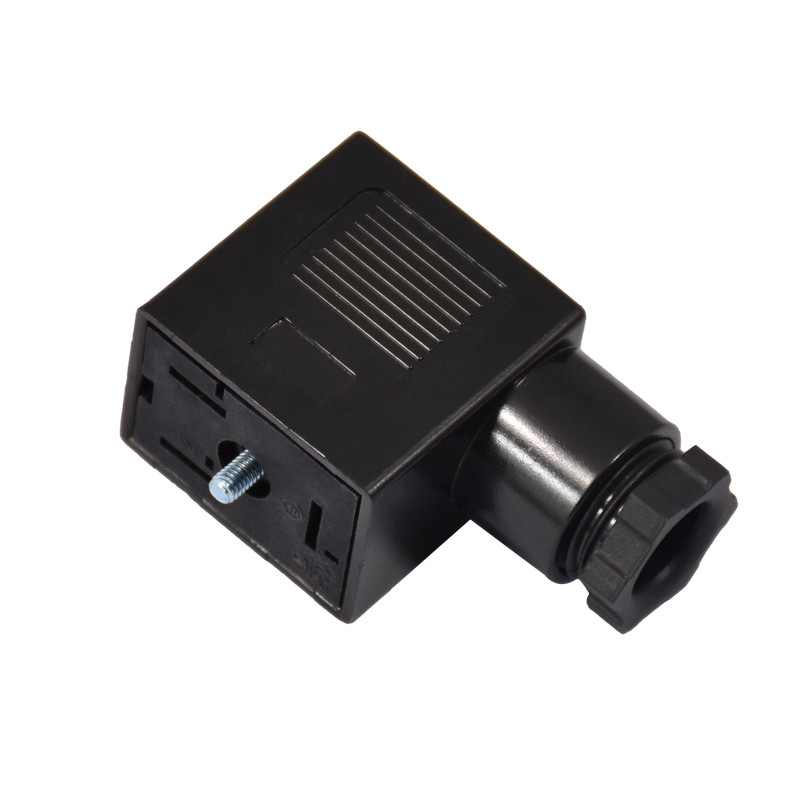

Waterproof Female Solenoid Cable Connector With Molded Onlead 0

Product Photos

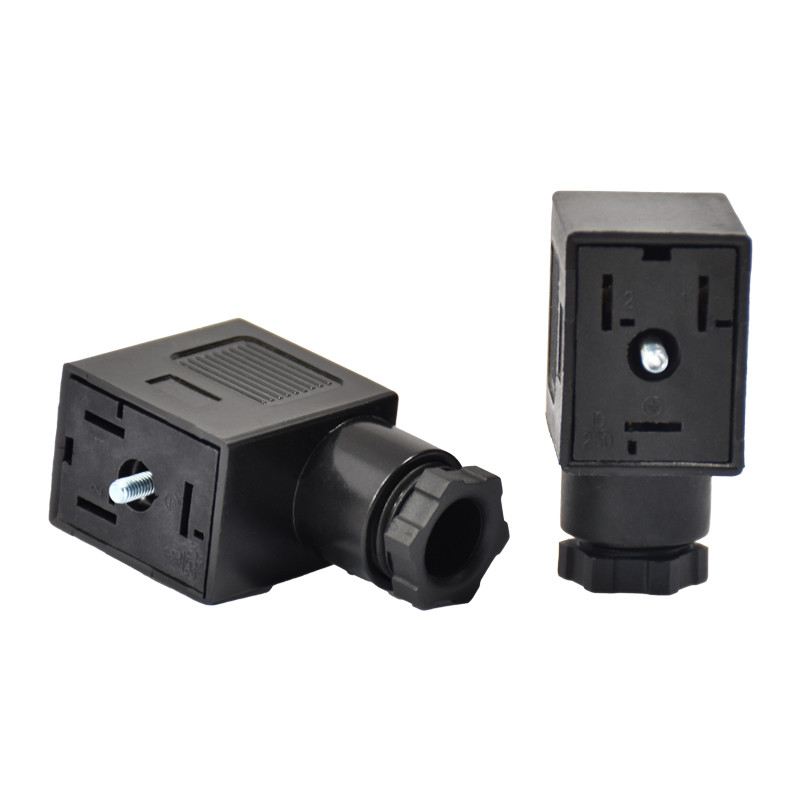

Waterproof Female Solenoid Cable Connector With Molded Onlead 1

Waterproof Female Solenoid Cable Connector With Molded Onlead 2

Waterproof Female Solenoid Cable Connector With Molded Onlead 3



Waterproof Female Solenoid Cable Connector With Molded Onlead 4

Waterproof Female Solenoid Cable Connector With Molded Onlead 5



     Rigoal is now manufacturing the whole range of M5,M8,M12,M16,M23 7/8" waterproof connector and normalized Din 43650 rectangular connectors type A,B,C, both to be cabled and molded,with or without electrinic components.The connection products are widely sed in field bus components,Ethernet,solenoid valves,pressure sitches,motors-control,protoelectric barries,flow monitoring devices,proximity switches,and sensors in the hydraulic,pneumatic and automation industries.
