UCU Circular Plastic Connectors Electrical IP68 2 Pin Female Plastic Connector
100pcs
MOQ
$3
Price
UCU Circular Plastic Connectors Electrical IP68 2 Pin Female Plastic Connector
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Rigoal
Certification: CE,RoSH,TUV
Model Number: UCU FUS-1
High Light:

UCU Circular Plastic Connectors

,

10A IP68 Circular Plastic Connectors

,

UCU 2 Pin Plastic Connector

Payment & Shipping Terms
Packaging Details: PE bag and Cartons
Supply Ability: 100000pcs per day
Specifications
Product Name: UCU Waterproof Connector
Gender: Female
Current Rating: 10A
Number Of Contacts: 2poles
Connector Type: Without SR
Mating Style: Screw
Shell: Straight
Waterproof Rating: IP68
Seal For Cable OD: Φ3mm~Φ7mm
Product Description

Waterproof Plastic Connector Electrical IP68 Waterproof 2 Pin Female Plastic Connector

♦ IP68 Waterproof Plastic Connector has two connection modes of the solder type and thread type

♦ its features has good flexibility anti-vibration resistant,waterproof ect

♦ The anti-UV level of the plastic material used on our waterproof connector is F1 or above,which can adapt to the extreme environment

♦ Besides the screw type waterproof connector, we also provide the push-pull connector to make the assembly easier and more quickly.

♦ We would be your trustworthy business partner with our best quantity assurance



Quick Details

Product name:UCU waterproof connector

Gender:Female

Current Rating:10A

Number of contacts:2poles

connector type:without SR

Mating style:Screw

Back Shell:Circular

Waterproof Rating:IP68

Seal for cable OD:Φ3mm~Φ7mm

Contact resistance:<5mΩ

Insulation resistance:≥500MΩ at DC500V

Breakdown voltage: ≥1000v/1minute

Assembly Style: Field Installable(Solder)



Material

Connector body: Flame Retardant Nylon

Contact:Brass C2680 and C17200 gold plated

Sealing:EPDM



Male Size 19*47.3mm
Female Size 19*47.5mm
Contact Cores 3pin
Male Pin Diameter 1.5mm
Male Pin Material Copper/Copper Alloy (Gold plating/Nickel plating)
Over-Mold Material PA66
Insulator Material PA66+30% fibre
Wire Specifications 28AWG---14AWG
Wire Diameter 3.5-7.2



Product Photos

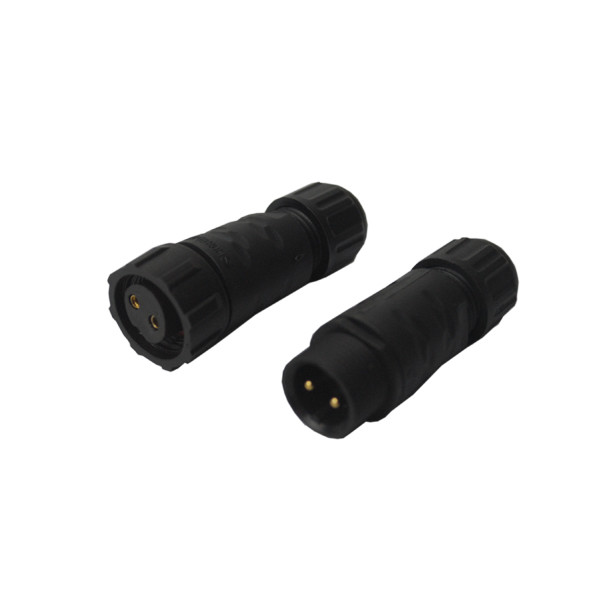

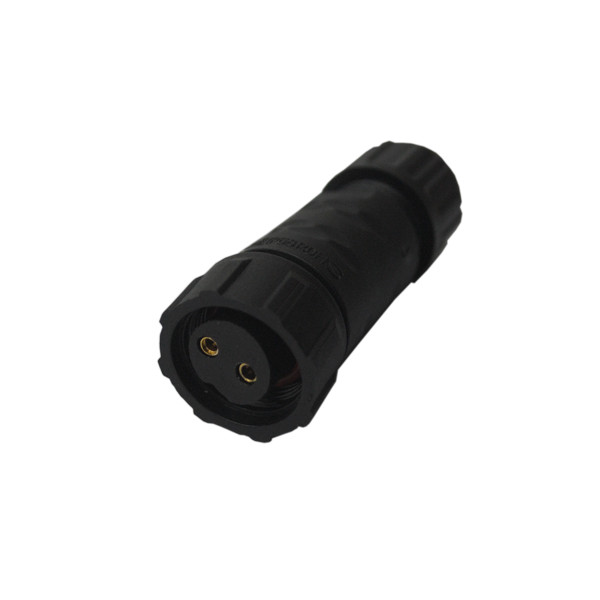

UCU Circular Plastic Connectors Electrical IP68 2 Pin Female Plastic Connector 0

UCU Circular Plastic Connectors Electrical IP68 2 Pin Female Plastic Connector 1

UCU Circular Plastic Connectors Electrical IP68 2 Pin Female Plastic Connector 2

UCU Circular Plastic Connectors Electrical IP68 2 Pin Female Plastic Connector 3

Packaging & Shipping

Approval customized based on customers' requirements

MOQ: 100pcs each item

Delivery time: 5-7days after the payment received

Shipment: by Express,by Air, by Sea

Payment terms: 100% TT in Advance

Payment method: T/T, Western Union, Paypal

UCU Circular Plastic Connectors Electrical IP68 2 Pin Female Plastic Connector 4



Our service

1. We are the manufacture, Rigoal is our brand, and has built a great reputation in China even around the world.
2. We guaranteed that 100% in good quality, the price will be reasonal.
3. All the inquiry will be response within 24 hours, the commucation will be effective.
4. Special feature and service can be provided upon requirement.
