10A Circular Plastic Waterproof Connectors High Power 7pins Assembly Female To Panel Mount Connector
100pcs
MOQ
$3.5/pc
Price
10A Circular Plastic Waterproof Connectors High Power 7pins Assembly Female To Panel Mount Connector
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Rigoal
Certification: CE , RoSH
Model Number: UCU connector
High Light:

Rigoal Circular Plastic Connectors

,

7pins Circular Plastic Connectors

,

7pins panel mount electrical connector

Payment & Shipping Terms
Packaging Details: PE bag and Cartons
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per day
Specifications
Product Name: UCU Connector
Gender: Male To Female
Current Rating: 10A
Poles: 7pins
Connector Type: UCU FUS-1
Mating Style: Screw
Shell: Straight
IP Level: IP68
Seal For Cable OD: Φ3mm~Φ7mm
Contact Type: Panel And Assembly Connector
Product Description

Waterproof Plastic Connector High-Power 7pins Assembly Female To Panel Mount Connector



Product description

♦ Waterproof plastic connectors custom service is workable for us. Like color, materials, packing quantity, packages, logo etc.

♦ Mainly used for outdoor display screens and other upscale products.

♦ Waterproof connectors typically involve an encasing, often plastic or mechanized plastic depending on the application, that is at a specific IP rating.

♦ Waterproofing is required on cable assemblies when connectors and ports are going to come into contact with moisture.

♦ The anti-UV level of the plastic material used on our waterproof connector is F1 or above,which can adapt to the extreme environment



Quick Details

Product name:UCU waterproof connector

Gender: female to male

Current Rating:10A

Number of contacts:7pins

connector type:without SR

Mating style:threaded

Back Shell:Circular

Waterproof Rating:IP68

Seal for cable OD:Φ3mm~Φ7mm

Contact resistance:<5mΩ

Insulation resistance:≥500MΩ at DC500V

Breakdown voltage: ≥1000v/1minute

Assembly Style: Field Installable(Solder)



Material

Connector body: Flame Retardant Nylon

Contact:Brass C2680 and C17200 gold plated

Sealing:EPDM



Connector size UCU FUS-1
Contacts  7pins
Gender female to male
Seal for cable OD Φ3mm~Φ7mm
Current Rating 10A





Product Photos

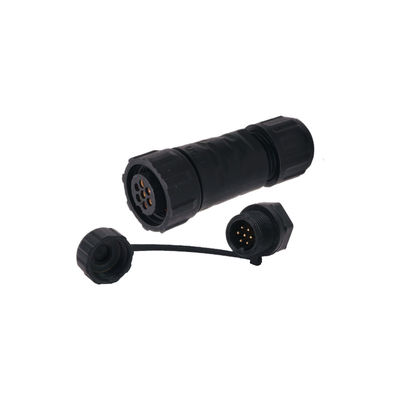

10A Circular Plastic Waterproof Connectors High Power 7pins Assembly Female To Panel Mount Connector 0

10A Circular Plastic Waterproof Connectors High Power 7pins Assembly Female To Panel Mount Connector 1







10A Circular Plastic Waterproof Connectors High Power 7pins Assembly Female To Panel Mount Connector 2



1. Q: What type waterproof connector do you have?

We have a lot of types connector,most of our connector is customized.

We foucs on LED Waterproof connector, Assembly waterproof connector,Over-mold waterproof connector,Sensor connector etc, also customized according to your requirements.

Main waterproof connectors we have M8,M12,M16,M23,Weipu Connector, waterproof plastic connector



2. Q: How to contact with us?

Please email,whatsapp,skype Wechat are avaliable,we have worked for this industry more than 7 years,So we can catch your problem,and solve it in a short time.



3. Q: How to order our products?

* Confirm the type of connector

* Confirm the Number of Connector

* Confirm Cable Wire guage

* Confirm Cable Length and shipping way

* Customized based on your demand

                                                                  Rigoal-----Your Best Connection!
