IP67 Waterproof Straight M12 5 Pins Female Shielded Plug Connectors For Electrical
100pcs
MOQ
$2..5
Price
IP67 Waterproof Straight M12 5 Pins Female Shielded Plug Connectors For Electrical
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Rigoal
Certification: CE,RoSH,TUV
Model Number: M12 Molding connector
Payment & Shipping Terms
Packaging Details: PE bag and CARONS
Delivery Time: 10-15days
Payment Terms: L/C, T/T
Supply Ability: 100000pcs per month
Specifications
Contacts: 2/3/4/5/6/8/12/17pins
Code Type: A/B/C/D
Gender: Female/male
Cable Material: PVC/PUR
Degree Of Protection: IP67/IP68
Mating Cycle: >500times
Core Material: PA
Shell Material: Copper/Zinc
Terminal Material: Phosphor Copper
Cable Size AWG: 22
Product Description

IP67 Waterproof Straight M12 5 Pins Female Shielded Plug Connectors For Electrical



Description

M12 Field wireable /installable connectors permit high flexibility for wiring cables in the field. It enables quick assembly and disassembly of differing cable lengths.

The wire connection normally use soldering termination, crimping and screw termination.

The materials with UL 94V-0 flammability rating are high/low temperature resistant from 85 to 105 degree and also UV resistant

a variety of connector types, such as A-code, B-code, D-code, X-code, Y-code, and L-code so on

There are 180 degrees and 90 degrees two types to choose, with the cable side also provide you dip and smt two types to choose.

Solutions that safely and reliably ensure the communication in industrial application are approved,such as automotive machine, automatic system, outdoor devices, remote process sensors.



Quick details

Core type: A.B.C.D

Contacts:3.4.5.8.12pins

Rated current: 4A

Rated AC/DC: 350V

Cable size: 0.34mm

Cable size AWG:22

Mating Cycle:500times

Temperature:-40°C~+80°C

Degree of protection: IP67/68

IP67 Waterproof Straight M12 5 Pins Female Shielded Plug Connectors For Electrical 0



Material

Cable material: PUR/PVC

Shell material: copper/Zinc

Core material:PA

Insert/ Housing: TPU

Overmold material:PVC/TPU

Terminal material:Phosphor copper

Coupling nut/screw: Brass with nickel plated screw



Electrical Data

Rated Current 1.5A/2A/4A
Rated Voltage 30V/60V/250V
Sealing O-ring
Insolution resistance 100mΩ
Contact resistance ≦100mΩ
Cable diameter ∅4~mm∅8mm
Shielding Available
Gender

Female





Product Photos

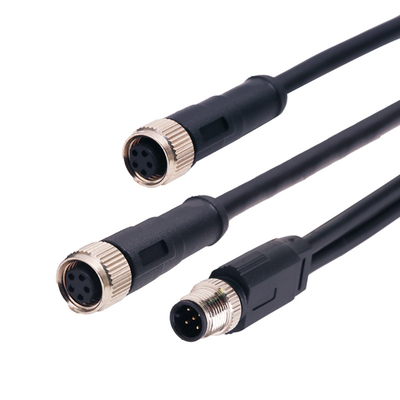

IP67 Waterproof Straight M12 5 Pins Female Shielded Plug Connectors For Electrical 1

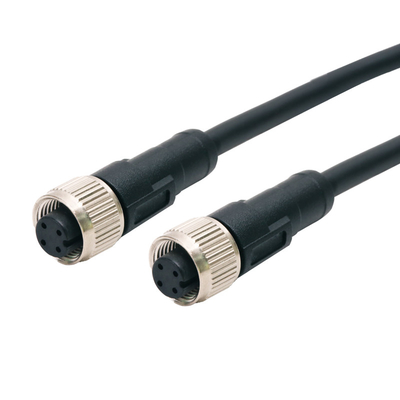

IP67 Waterproof Straight M12 5 Pins Female Shielded Plug Connectors For Electrical 2

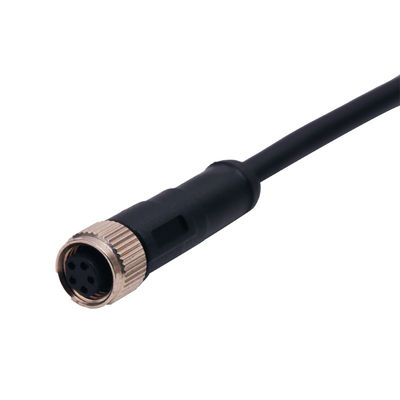

IP67 Waterproof Straight M12 5 Pins Female Shielded Plug Connectors For Electrical 3



Applications

● Standard sensor, actuator, encoder, servo motors

● Factory automation and process control

● Industrial instrumentation

● Commercial electronics PCBA

● Industrial safety light curtain, light grid, switches

● Power supply

● Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000

● LED display panel & outdoor LED lighting

IP67 Waterproof Straight M12 5 Pins Female Shielded Plug Connectors For Electrical 4

Packsging & Shipping

1.Our general packing: PE bag and PE bag contons. General Carton size:40*30*30cm

2.Customized according to customer's request

IP67 Waterproof Straight M12 5 Pins Female Shielded Plug Connectors For Electrical 5

IP67 Waterproof Straight M12 5 Pins Female Shielded Plug Connectors For Electrical 6

IP67 Waterproof Straight M12 5 Pins Female Shielded Plug Connectors For Electrical 7
