Automotive M12 Waterproof Connector A Coding Female 4pins To RJ45 Adapter
100pcs
MOQ
Negotiable
Price
Automotive M12 Waterproof Connector A Coding Female 4pins To RJ45 Adapter
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Rigoal
Certification: CE , TUV , RoSH
Model Number: M12 to RJ45
High Light:

TUV M12 Waterproof Connector

,

4P M12 Waterproof Connector

,

M12 to RJ45 Adapter

Payment & Shipping Terms
Packaging Details: PE bag and Cartons
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Specifications
Type: Sensor Adapter
Gender: Female
Pins: 4P
Connection Type: M12 To RJ45 Connector
Orientation: Straight
Rated Voltage: 60V
Degree Of Protection: IP67
Application: Automotive And Sensor
Rated Current(V): 4A
Coding: A Code
Product Description

M12 Waterproof Connector M12 A Coding Female 4pins To RJ45 Adapter Circular Connector


Description

M12 to RJ45 Adapter for mating Panel Mount Recetacle, Field Wireable Plug & Molding Cable High degree of protection IP67, safe to use on site
High quality gold-plated solid phosphor bronze contacts , ≥ 600 times mating life
Anti-vibration locking screw design
Support samples, retail and bulk orders


Electrical data



Gender: female

Type:  m12 to RJ45 adapter

Rated voltage: 60 V

Body shell:PA + GF Housing / Metal shell

Terminal: Threaded

Material: Brass

Insulation resistance: ≥ 10 GΩ

Connector:DC Power Jack Plug Connector

Mechanical operation : > 100 Mating cycles

Rated voltage : 60V

Rated impulse voltage : 1500V



Material



Flammability rating according to UL 94: HB

Contact material: CuZn

Contact surface material: Ni/Au

Contact carrier material: TPU GF

Material of grip body: TPU, hardly inflammable, self-extinguishing

Material, knurls: Zinc die-cast, nickel-plated

Sealing material: NBR


General Characteristics
Number of contact 3 4 5 8 12 17
Locking system screw M12*1.0
Termination solder, moulded on cable, crimp or screw clamp
Wire guage in mm² 0.14 / 0.25 / 0.34 / 0.5 etc
Wire guage in AWG 26 / 24 / 22 / 20 etc
Shell protection IP67 / IP68
Mechanical operation > 500 mating cycles
Upper temperature +85℃
Lower temperature -25℃

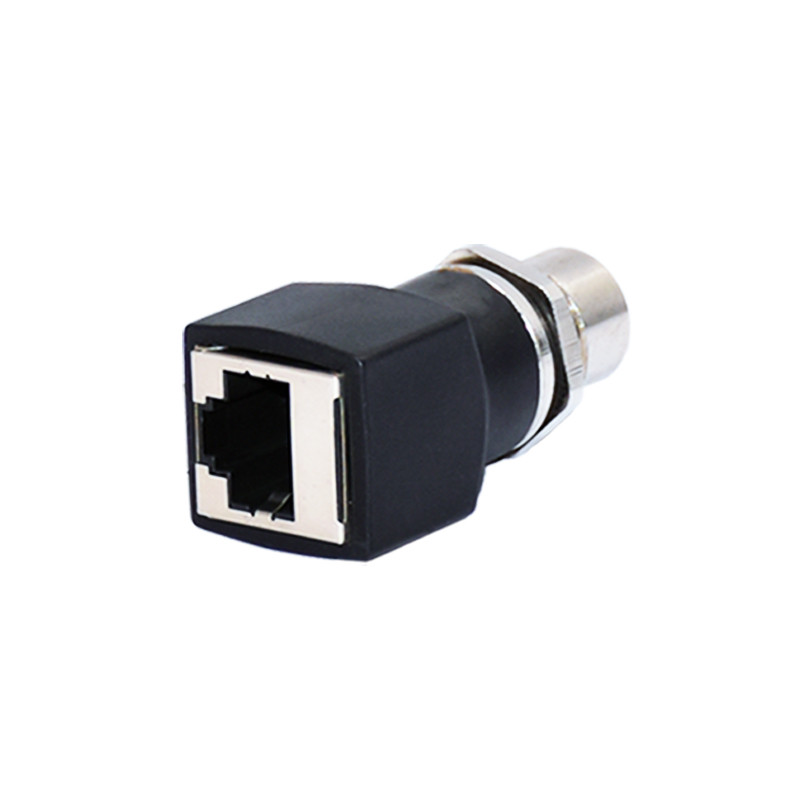

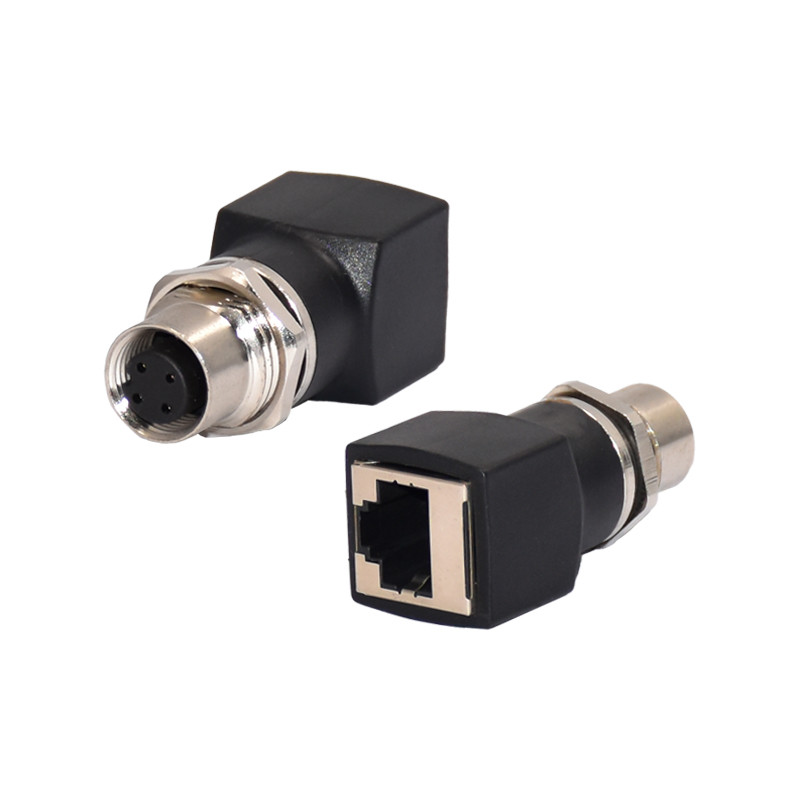

Product photos
Automotive M12 Waterproof Connector A Coding Female 4pins To RJ45 Adapter 0Automotive M12 Waterproof Connector A Coding Female 4pins To RJ45 Adapter 1Automotive M12 Waterproof Connector A Coding Female 4pins To RJ45 Adapter 2
Application
Automotive M12 Waterproof Connector A Coding Female 4pins To RJ45 Adapter 3
