Rigoal Weipu SP17 Connector Male 3pins IP68 Power Connector
100pcs
MOQ
$2-$2.5
Price
Rigoal Weipu SP17 Connector Male 3pins IP68 Power Connector
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Rigoal
Certification: CE
Model Number: SP17 power connector
High Light:

Rigoal Connector

,

IP68 Power Connector

,

SP17 Connector

Payment & Shipping Terms
Packaging Details: 38*32*32cm/CTN, 1000pcs/CTN
Delivery Time: 10-15days
Supply Ability: 3000pcs per week
Specifications
Cores: 2.3.4.5.6.7.9pins
Gender: Male
Termination: Solder
IP Level: IP68
Shell Material: PC,Nylon66,fire Resistance: V-0
Cable Outer Diameter Range: GM13: A (4-6.5mm) B (5-8mm)
Mating Cyclc: >500 Times
Temperature Range: -25°C~+85°C
Insulation Resistancem M Ω: 2000
Current Rating: 10A
Product Description

Waterproof Power Connector Weipu IP68 SP17 Male 3pins Straight Assembly Connector



Weipu SP13 17 21 Connectors

1: Solder type

2: Have 2,3,4,5,6,7,9 poles for option.

3: Small bulk with light weight,easy and simple to operating

4: This aviation plug is IP68 sealing type,can provide secure and connectivity in harsh environment.

5: If there is a require about dustproof and waterproof,this product can be used a lot.

6: Can do process with cable(18awg,20awg,22awg,) if you have requiements.

Harsh environmental tests,environmental tests performed during design and qualification of IP68 Connectors are standardised to IP68 at a depth of 2 m and duration of 24 hours.



General Details

Coupling:Threaded coupling

Shell material: Nylon66

Fire resistance: V0
Termination: Solder/Screw
Cable outer diameter range: GM13: A (4-6.5mm) B (5-8mm)
IP rating: IP68
Mating cyclc: >500times
Temperature range: -25°C~~+85°C
Current Rating:5A-10A
Rated Voltage: 500v
Contact Gender:Male/female
Housing Material:Plastic



Material

Shell material: Nylon66
Insert material: PPS man temperature 260°
Contact material: Brass with gold plating
Housing Material:Plastic

Number of contacts 2-9 POLES
Gender male to female
Mounting type butting cable connector
Connector size standard
Current Rating 5A-10A
IP Rating IP68
Contact Gender male/female
Mating Type Threaded
Body Orientation Straight
Housing Material Plastic
Maximum Operating Temperature ‘+85°C
Minimum Operating Temperature ’-25°C
Contact Material Brass
Contact plating gold-plated
Panel hole cutout diameter 13mm
Cable outer diameter I 4-6.5MM
Cable outer diameter II 5-8MM


Number of Contacts

Rigoal Weipu SP17 Connector Male 3pins IP68 Power Connector 0

Product photos

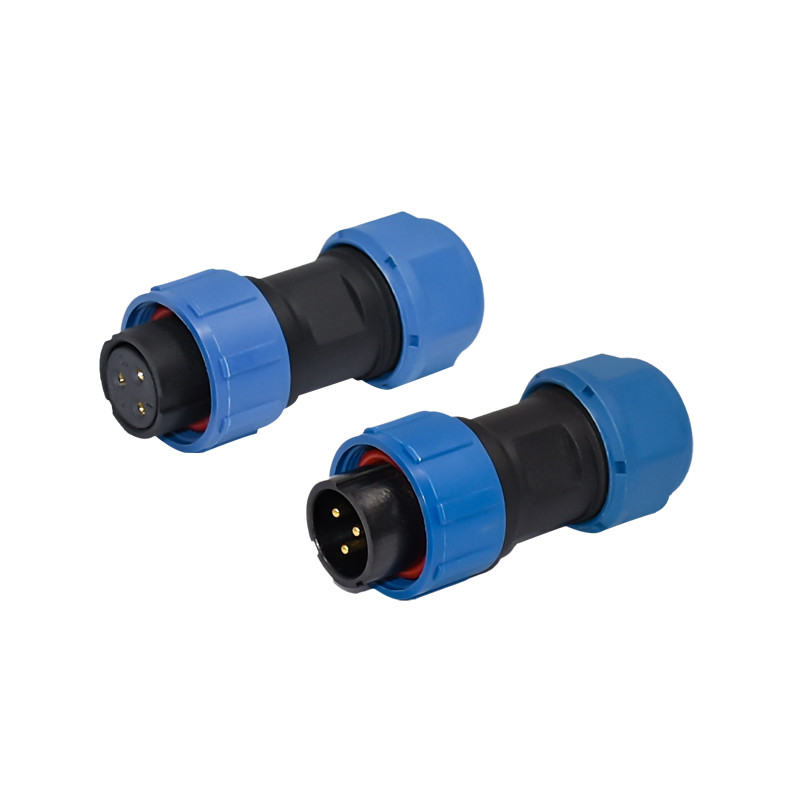

Rigoal Weipu SP17 Connector Male 3pins IP68 Power Connector 1

Rigoal Weipu SP17 Connector Male 3pins IP68 Power Connector 2

FAQ



Q1: Are you trading company or manufacturer ?

A: We are the manufacture

Q2: How long is your delivery time?
A: It is 15 days after payment successful.

Q3: Do you provide samples ? is it free or extra ?
A: Yes,we provide samples for free,but you will pay for the shipping fee.

Q4: What is your terms of payment ?
A: If the payment<=$1000, 100% in advance.
Payment>=$1000, we accept 50% T/T in advance
