Panel Mount Waterproof Power Connector SP21 5 Pins Male To Female
100pcs
MOQ
$2-$2.5
Price
Panel Mount Waterproof Power Connector SP21 5 Pins Male To Female
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Rigoal
Certification: CE
Model Number: SP21 male to female
High Light:

SP21 Waterproof Power Connector

,

Rigoal Waterproof Power Connector

,

SP21 Male To Female Power Connector

Payment & Shipping Terms
Packaging Details: 38*32*32cm/CTN, 1000pcs/CTN
Delivery Time: 10-15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000pcs per week
Specifications
Contacts: 5pins
Connector Gender: Male To Female
Termination: Screw
Type: PS21 Assembly To Panel Connector
Contact Material: Brass With Gold Plating
Rated Current: 5A
Insert Material: PPS Max Temperature260℃
Mating Cyclc: >500 Times
Temperature Range: -25°C~+85°C
Shell Material: PC,Nylon66,fire Resistance: V-0
Product Description

Waterproof Power Connector SP21 5pins Male Assembly Connector To Female Panel Mount



Weipu SP13 17 21 Connectors

SP series of threaded IP68 connectors has a bigger and stronger shell. With its IP68 rating

That coupled with the IP68 rating excels in harsh environments. And it's very flexible

When choosing a female connector, the robust connectors can be used for both cable to cable (inline) and cable to panel-mount connections.

All models are highly reliable and excellent quality.

Our weipu sp series can meet of requirements and harsh working environments

With our strong R&D capabilities, we can develop different connectors according to customer’s requirements.

1. Shell size: 0to size 2(0K/1K/2K)

2. Smart push-pull self-latching system

3. Shell style: Free recepatcle, cable collet and nut for fitting a bend relief

4. Multi-pole types: 2 to26contacts

5. Solder ,print or crimp contacts



General Details

Coupling:Threaded coupling

Fire resistance: V0
Termination: Solder
Cable outer diameter range: GM13: A (4-6.5mm) B (5-8mm)
IP rating: IP68
Mating cyclc: >500times
Temperature range: -25°C~~+85°C
Current Rating:5A
Contact Gender: female to male
Insulator : PPS



Material

Shell material: Nylon66
Insert material: PPS man temperature 260°
Contact material: Brass with gold plating
Housing Material:Plastic

Connector type SP21 series
Gender  female to male
Contacts of Connector 5pins
Current rated 5A
Contact diameter ø1.0*5







Number of Contacts

Panel Mount Waterproof Power Connector SP21 5 Pins Male To Female 0

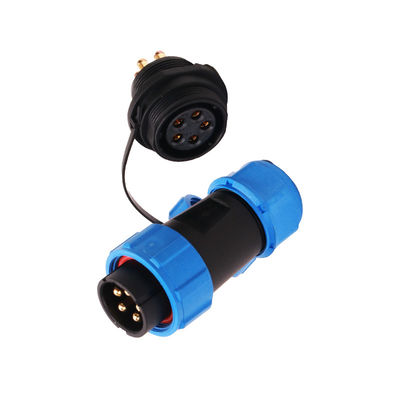

Product photos



Panel Mount Waterproof Power Connector SP21 5 Pins Male To Female 1

Panel Mount Waterproof Power Connector SP21 5 Pins Male To Female 2





Panel Mount Waterproof Power Connector SP21 5 Pins Male To Female 3



FAQ



Q1: Why choose us?

A: 100% homemade, competitive price and fast delivery

Strictly quality control, connectors certified by TUV/CE/ROHS.



Q2: How can I get a connector’s sample?

Sample in stock is free; you just need to pay shipping cost.



Q3: How long is your delivery time?

A: Sample is 1-3 work days; Mass is 5-15 work days.



Q4: What’s the connector made of?

Material ot contact: CuZn

Contact plating: Au (Gold/gold)

Material of contact body: PBT (UL 94 V-0)

Material of housing: CuZn (brass, nickel plated)



Q5: How to contact us?

A: Email, Whatsapp, wechat, telephone all are avaliable.
