D-Sub Female 9pins To M12 Waterproof Right Angle 9pins Molding Male Connector Sensor
100pcs
MOQ
Negotiable
Price
D-Sub Female 9pins To M12 Waterproof Right Angle 9pins Molding Male Connector Sensor
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Rigoal
Certification: CE,TUV,RoSH
Model Number: m12 to D-sub
Payment & Shipping Terms
Packaging Details: PE bag and Cartons
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Specifications
Type: Molding Connector
Gender: Male To Female
Cable Jacket: PUR Or PVC
Contacts: 9pins
Connection Type: M12 To D-sub
Orientation: 90 Degree
IP Rating: IP67
Wire Cross Section: 0.25mm2
Rated Current: 3A
Coding: A Code
Product Description

D-Sub Female 9pins To M12 Waterproof Right Angle 9pins Molding Male Connector Sensor


Product Description
M12 to D-sub Adapter for mating Panel Mount Recetacle, Field Wireable Plug & Molding Cable High degree of protection IP67, safe to use on sit
Support samples, retail and bulk orders


Electrical data

Gender: female to male

Type: m12 to D-sub connector

Rated voltage: 30 V

Body shell:PA + GF Housing / Metal shell

Terminal: Screw joint

Pollution degree: 3

IP rating: IP67

Insulation resistance: ≥ 10 GΩ

Mechanical operation :>100 Mating cycles

Conductor structure:32x0.1mm



Material

Flammability rating according to UL 94: HB

Contact material: CuZn

Contact surface material: Ni/Au

Contact carrier material: TPU GF

Material of grip body: TPU, hardly inflammable, self-extinguishing

Material, knurls: Zinc die-cast, nickel-plated

Cable Jacket: PUR or PVC


Plastic Housing Engineering Thermoplastic Flammability Rating UL 94V-0.
Contacts Copper Alloy
Plating Gold Plating Over Nickel in Contact
O-Ring Silicone Rubber Black Color
Cable UL 2464 22AWG, OD 5.4mm, Color Black
Shielded Brass with Nickel Plated
Current Rating 4A (2 to 5Pin), 2A (6 to 8Pin), 1.5A (9 to 12Pin)
Rated Voltage 250V AC/DC (2 to 4Pin), 60V AC/DC (5Pin), 30V AC/DC (6 to 8Pin), 30V AC/DC (9 to 12Pin)
Insulation Resistance 10⁸ MΩ

Product photos

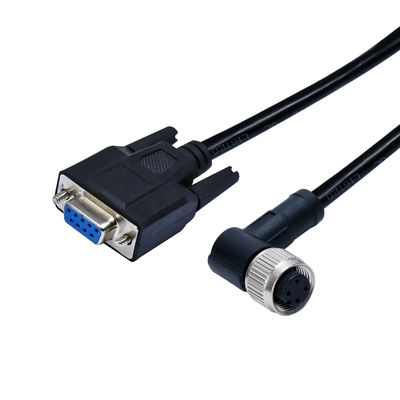

D-Sub Female 9pins To M12 Waterproof Right Angle 9pins Molding Male Connector Sensor 0
D-Sub Female 9pins To M12 Waterproof Right Angle 9pins Molding Male Connector Sensor 1


D-Sub Female 9pins To M12 Waterproof Right Angle 9pins Molding Male Connector Sensor 2

FAQ



Q1. What kind of connectors you could supply?

A: M8, M12, M16, M23, Industrial waterproof connector, weipu connector, solenoid valve connector etc, also can customized based on buyer's requirements as long as tell us your details



Q2: How can I get a connector’s sample?

Sample in stock is free; you just need to pay shipping cost.



Q3: How long is your delivery time?

A: Sample is around 5 working days; Mass is 5-15 work days.



Q4: Is it OK to print my Logo on the product?

A: Yes, OEM/ODM service is available.



Q5: How to deliver the goods?
A: DHL, UPS, TNT, FedEx, Aramex, Postal parcel and forwarder are acceptable.



Q7: How to contact us?

A: contact us with email/whatsapp/wechat
