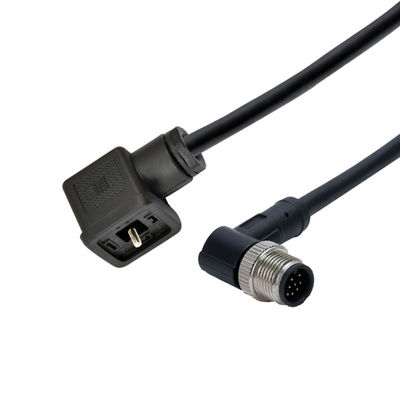

PG11 M12 Male Connector 9pins A Code Solenoid Connector Plugs
100pcs
MOQ
$0.7-$1.5
Price
PG11 M12 Male Connector 9pins A Code Solenoid Connector Plugs
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Rigoal
Certification: CE
Model Number: m12 to solenoid valve connector
High Light:

PG11 M12 Male Connector

,

9pins M12 Male Connector

,

PG11 Solenoid Connector Plugs

Payment & Shipping Terms
Packaging Details: 55*43*33CM/CTN, 100PCS/CTN
Delivery Time: 7-10days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30000pcs per week
Specifications
Contacts: 3+PE
Connector Design: M12 Molded Connector
Termination: Screw
Colour: Transparent
Cable Gland Size: PG11
Contact Plating: Ni (nickel)
Housing Material: PA
Current Rating: 10 A
Voltage Rating: 24 V Dc
Connector Type: M12 To DIN43650 A
Product Description

M12 Male 9pins A Code Molded Connector Cable To Solenoid Valve 3+PE Connector Plug

Product description
1. A range of options include 24V, 110V and 230V operation, LED indication, and models with or without surge suppression. Field-wireable connectors are also available.
2. All solenoid connector cable models are available in five sizes based on DIN 43650
3. The 230V AC/DC models are rated for straight wired products
4. 8mm, 9.4mm, 10mm, 11mm and 18mm square DIN style valve connectors
5. Fits most popular solenoid valves and sensors
6. Suppression and LED indication available in 24V or 110V AC/DC models
7. PVC jacketed cables in 1, 3 or 5 meter lengths on select valve connectors
8. Field-wireable solenoid connectors on select cable models

General Details
Contacts: 3+PE
Connector design: solenoid valve connector without LED
Connector locking system: central bolt
Termination: screw
Wire gauge (mm): min. 0,34 mm², max. 1,5 mm²
Wire gauge (AWG): min. AWG 22, max. AWG 16
Cable outlet: 6,0 - 8,0 mm
Upper limit temperature: 120 °C
Lower limit temperature: -30 °C

Electrical values
Rated current (40 °C): 10 A
Rated voltage: 250 V
Rated impulse voltage: 4000 V
Pollution degree: 3
Overvoltage category: III
Insulating material group: III
Volume resistivity: ≤ 15 mΩ
Insulation resistance: ≥ 10¹⁰Ω
EMC compliance: not shielded
Degree of protection: IP65
Mechanical operation: > 50 Mating cycles

Material
Contact material: CuSn (bronze)
Contact plating: Ni (nickel)
Contact body material: PA (UL 94 HB)
Housing material: PA


Connector typem12 to selnoid valve connector
SeriesME-311/SL
Indicator Lightavaliable
Degree of protectionIP65
Size of tailPG7 or PG9


Component part drawing
PG11 M12 Male Connector 9pins A Code Solenoid Connector Plugs 0
Product photos

PG11 M12 Male Connector 9pins A Code Solenoid Connector Plugs 1
PG11 M12 Male Connector 9pins A Code Solenoid Connector Plugs 2
PG11 M12 Male Connector 9pins A Code Solenoid Connector Plugs 3


FAQ



Q1. What kind of connectors you could supply?

A: M8, M12, M16, M23, Industrial waterproof connector, weipu connector, solenoid valve connector etc, also can customized based on buyer's requirements as long as tell us your details



Q2: How can I get a connector’s sample?

Sample in stock is free; you just need to pay shipping cost.



Q3: Is it OK to print my Logo on the product?

A: Yes, OEM/ODM service is available.



Q4: How to contact us?

A: contact us with email/whatsapp/wechat
