LED Solenoid Valve Type C To M12 Waterproof 3pins 90 Degree Molded Female Connector Cable
100pcs
MOQ
Negotiable
Price
LED Solenoid Valve Type C To M12 Waterproof 3pins 90 Degree Molded  Female Connector Cable
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Rigoal
Certification: CE
Model Number: m12 to solenoid valve connector C
Payment & Shipping Terms
Packaging Details: 55*43*33CM/CTN, 100PCS/CTN
Delivery Time: 7-10days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30000pcs per week
Specifications
Pins: 3pins And 2+PE 3+PE
Connector Name: M12 And Solenoid Valve C
Termination: Threaded
IP Rating: IP65
Gender: Female
Contact Plating: Ni (nickel)
Housing Material: PA
Rated Current (40 °C): 4 A
Rated Voltage: 250 V
Connector Type: Right Angle
Product Description

LED Solenoid Valve Type C To M12 3pins 90 Degree Molded Female Connector Cable

Product description
♦ M12 molded cordsets have a yellow connector head with gray PVC cable
♦ The female M12 cordsets are available in straight or right angle versions
♦ M12 Connector System for industrial automation and control applications provides a full solution that safely and reliably ensures communication in industrial environments
♦ We provide International Protection Marking IP65, IP66, IP67, IP68 and IP69K rated connectors and cable assemblies which are easy to install.
♦ a variety of connector types, such as A-code,B-code, D-code, X-code, Y-code

Quick details

1. M12 molding connector 3pins female gender
2. 2, 3, 4, 5, 8 poles per connector are available
3. PUR/PVC cable accessories available upon customer requesting
4. Operating voltage 30V, Rated current 4A
5. UL94 V-0 PA66+GF plastic Housing / Metal shell
6. Degree of protection IP67

7. Temperature will from -40° to +80°

8. Connector locking system is bolted

9. Wire gauge(mm) is 0.34mm²

10. Wire gage(AWG) 22


Material Data
Shell material copper/Zinc
Core material PA
Overmold material PVC/TPU
Terminal material Phosphor copper


Electrical values
Rated current : 4 A
Rated voltage :250 V
Rated impulse voltage :1500 V
Pollution degree :3
Contact resistance:≤10mΩ
Overvoltage category :III
Insulating material group :III
Volume resistivity :≤ 3 mΩ
Insolution resistance:≧100mΩ
EMC compliance :not shielded
Degree of protection :IP65
Mechanical operation :> 100 Mating cycles

LED Solenoid Valve Type C To M12 Waterproof 3pins 90 Degree Molded  Female Connector Cable 0

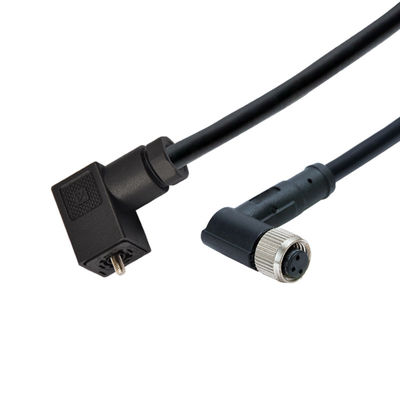

Product photos
LED Solenoid Valve Type C To M12 Waterproof 3pins 90 Degree Molded  Female Connector Cable 1LED Solenoid Valve Type C To M12 Waterproof 3pins 90 Degree Molded  Female Connector Cable 2

LED Solenoid Valve Type C To M12 Waterproof 3pins 90 Degree Molded  Female Connector Cable 3


FAQ



Q1. What kind of connectors you could supply?

A: M8, M12, M16, M23, Industrial waterproof connector, weipu connector, solenoid valve connector etc, also can customized based on buyer's requirements as long as tell us your details



Q2: How can I get a connector’s sample?

Sample in stock is free; you just need to pay shipping cost.



Q3: Is it OK to print my Logo on the product?

A: Yes, OEM/ODM service is available.



Q4: How to contact us?

A: contact us with email/whatsapp/wechat
