M12 8pins A code Molded Male Waterproof Connector Cable To LED Solenoid Valve Type C Plug

100pcs
MOQ
negotiable
Price
M12 8pins A code Molded  Male Waterproof Connector Cable To LED Solenoid Valve Type C Plug
Features Gallery Product Description Request A Quote
Features
Specifications
Pins: 8pins And 3+PE
Connector Name: M12 And Solenoid Valve C
Termination: Threaded
IP Rating: IP65
Gender: Male
Contact Plating: Ni (nickel)
Housing Material: PA
Rated Current (40 °C): 2 A
Rated Voltage: 30 V
Connector Type: Right Angle
Basic Infomation
Place of Origin: China
Brand Name: Rigoal
Certification: CE
Model Number: m12 to solenoid valve connector C
Payment & Shipping Terms
Packaging Details: 55*43*33CM/CTN, 100PCS/CTN
Delivery Time: 7-10days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30000pcs per week
Product Description

M12 8pins A Code Molded Male Connector Cable To LED Solenoid Valve Type C Plug



M12 connectors are designed for washdown and corrosive environments. They are available with 3, 4, 5, 8, and 12 pins.



Product description

1. M12 molding connector 8pins male gender
2. 2, 3, 4, 5, 8 poles per connector are available
3. PUR/PVC cable accessories available upon customer requesting
4. Operating voltage 30V, Rated current 4A
5. UL94 V-0 PA66+GF plastic Housing / Metal shell
6. Degree of protection IP67

7. Temperature will from -40° to +80°

8. Connector locking system is bolted

9. Wire gauge(mm) is 0.34mm²

10. Wire gage(AWG) 22

11. IP68 waterproof connectors to cable assemblies.

12. Plastic Housing: Engineering Thermoplastic Flammability Rating UL 94V-0.



Material Data
Shell material copper/Zinc
Core material PA
Overmold material PVC/TPU
Terminal material Phosphor copper



Electrical values

Rated current : 2A

Rated voltage :30 V

Rated impulse voltage :1500 V

Pollution degree :3

Contact resistance:≤10mΩ

Overvoltage category :III

Insulating material group :III

Volume resistivity :≤ 3 mΩ

Insolution resistance:≧100mΩ

EMC compliance :not shielded

Degree of protection :IP65

Mechanical operation :> 100 Mating cycles



M12 8pins A code Molded  Male Waterproof Connector Cable To LED Solenoid Valve Type C Plug 0

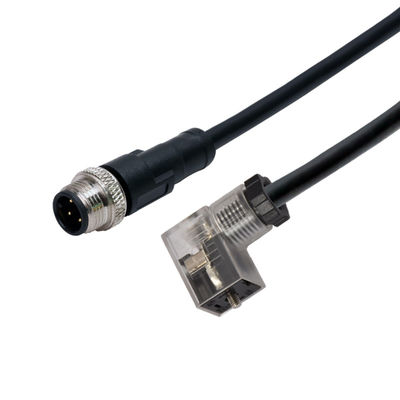

Product photos

M12 8pins A code Molded  Male Waterproof Connector Cable To LED Solenoid Valve Type C Plug 1

M12 8pins A code Molded  Male Waterproof Connector Cable To LED Solenoid Valve Type C Plug 2

M12 8pins A code Molded  Male Waterproof Connector Cable To LED Solenoid Valve Type C Plug 3



FAQ



Q1. What kind of connectors you could supply?

A: M8, M12, M16, M23, Industrial waterproof connector, weipu connector, solenoid valve connector etc, also can customized based on buyer's requirements as long as tell us your details



Q2: How can I get a connector’s sample?

Sample in stock is free; you just need to pay shipping cost.



Q3: Is it OK to print my Logo on the product?

A: Yes, OEM/ODM service is available.



Q4: How to contact us?

A: contact us with email/whatsapp/wechat
