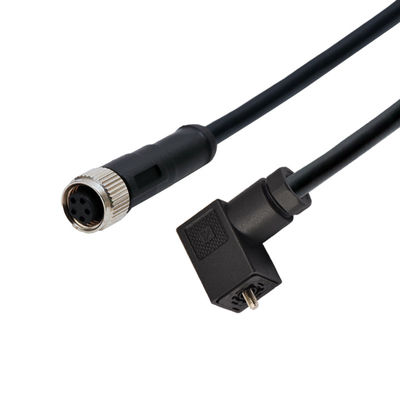

Rigoal Solenoid Valve Plug Type C To M12 5 Pin Female Connector Waterproof Molding

100pcs
MOQ
negotiable
Price
Rigoal Solenoid Valve Plug Type C To M12 5 Pin Female Connector Waterproof Molding
Features Gallery Product Description Request A Quote
Features
Specifications
Contacts: 5pins And 3+PE
Connector Design: M12 And Solenoid Valve C
Termination: Screw
Protect Level: IP65
Contact Material: Copper
Contact Plating: Ni (nickel)
Housing Material: PA
Rated Current: 2A
Rated Voltage: 24V
Standard: DIN EN 175-301-803-A
High Light:

Rigoal Solenoid Valve Plug

,

24V 2A Solenoid Valve Plug

,

M12 5 Pin Female Connector

Basic Infomation
Place of Origin: China
Brand Name: Rigoal
Certification: CE
Model Number: m12 to DIN C
Payment & Shipping Terms
Packaging Details: 55*43*33CM/CTN, 100PCS/CTN
Delivery Time: 7-10days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30000pcs per week
Product Description

Solenoid Valve Type C To M12 Waterproof Molding 5pins Female Connector Cable​



1. M12 90 degree and Straight type for all
2. 2, 3, 4, 5, 8 poles per connector are available
3. Cable length customized(PVC,PUR,TPU etc)
4. Operating voltage 30V, Rated current 2A
5. UL94 V-0 PA66+GF plastic Housing / Metal shell
6. Degree of protection IP67

7. Temperature will from -40° to +80°

8. Connector locking system is bolted

9. Wire gauge(mm) is 0.34mm²

10. Wire gage(AWG) 22

11. Solenoid valve connector can be easily connected to,flow moitoring devices and field bus components sensor devices

12. Satisfy all the requirements in automation technology



M12 Material Data
Coding A
Insulating material PPA/TPU
Overmold material PVC/TPU
Terminal material Phosphor copper
Contact surface material Ni/Au
Material of grip body TPU



Electrical values(Solenoid valve)

Rated current : 8 A

Rated voltage: 24 V

Rated impulse voltage: 800 V

Pollution degree: 3

Contact resistance: ≤4mΩ

Cable gland: PG7 / PG9

Overvoltage category: III

Insulating material group: III

Volume resistivity: ≤ 3 mΩ

Insolution resistance: ≧100mΩ

EMC compliance: not shielded

Degree of protection: IP67

Mechanical operation: >100 Mating cycles



Rigoal Solenoid Valve Plug Type C To M12 5 Pin Female Connector Waterproof Molding 0



Product photos

Rigoal Solenoid Valve Plug Type C To M12 5 Pin Female Connector Waterproof Molding 1

Rigoal Solenoid Valve Plug Type C To M12 5 Pin Female Connector Waterproof Molding 2









Rigoal Solenoid Valve Plug Type C To M12 5 Pin Female Connector Waterproof Molding 3



FAQ



Q1. What kind of connectors you could supply?

A: M8, M12, M16, M23, Industrial waterproof connector, weipu connector, solenoid valve connector etc, also can customized based on buyer's requirements as long as tell us your details



Q2: How can I get a connector’s sample?

Sample in stock is free; you just need to pay shipping cost.



Q3: Is it OK to print my Logo on the product?

A: Yes, OEM/ODM service is available.



Q4: How to contact us?

A: contact us with email/whatsapp/wechat
