TUV Mechanical Cable Connectors Higher Currents Mini Signal Waterproof Connector
100pcs
MOQ
Negotiable
Price
TUV Mechanical Cable Connectors Higher Currents Mini Signal Waterproof Connector
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Rigoal
Certification: CE , TUV , RoSH
Model Number: 7/8'' connector
High Light:

TUV 9A Mechanical Cable Connectors

,

TUV IP67 Mechanical Cable Connectors

,

TUV Signal Waterproof Connector

Payment & Shipping Terms
Packaging Details: PE bag and Cartons
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Specifications
Connector: 7/8" Connector
Wire Gauge (AWG): 16
Type: Assembly
IP Rating: IP67
Contacts: 3+PE
Rated Current: 9A
Termination: Screw
Cable Outlet: 8 - 10mm
Rated Voltage: 250V
Application: Automotive / Sensor
Product Description

Mini 7/8 Inch Assembly Connectors Carry Higher Currents Mini Signal/Power Connectors



Product Description

7/8'' connectors are often used on conveyors, cooling fans, and grinders. Rated NEMA 6P and IP68, they protect against washdowns.

They also resist abrasion, oil, and welding slag. When mating connectors, both the gender and housing thread location must be opposite.



1. 2/3/4/5/6/7/8 Poles available
2. 360° EMC Shielded
3. Over-molding type, straight or right angled version
4.  IP67/IP68 in locked condition
5. Cable length customized, rubber/PVC cable jacket

Electrical Data

Shell material: PBT(UL 94 V-0)

Matreial of contact body: PUR/PA(UL 94 HB)

Contact material: CuZn(brass)

Pin contact: CuZn

Socket contact: CuSn

Termination: screw

Rated current: 9A

Temperature range:-40°C~+85°C

Rated voltage: 300v

Rated impluse voltage : 4000v

Overvoltage categorie: three

Cable outlet: 6-8mm,10-12mm, 12-14mm,14-18mm



Contact numbers 4pins
Type gender male to female
Termination screw
Contact material CuZn(brass)
Rated cerrent 9A
Locking system screw 7/8'' - 16UNF
Wire guage in mm² max.1.5
Wire guage in AWG max.16
Mechanical operation >500 mating cycles
Female insent PA66(UL 94V-0)
Material of cable jacket

PVC or PUR

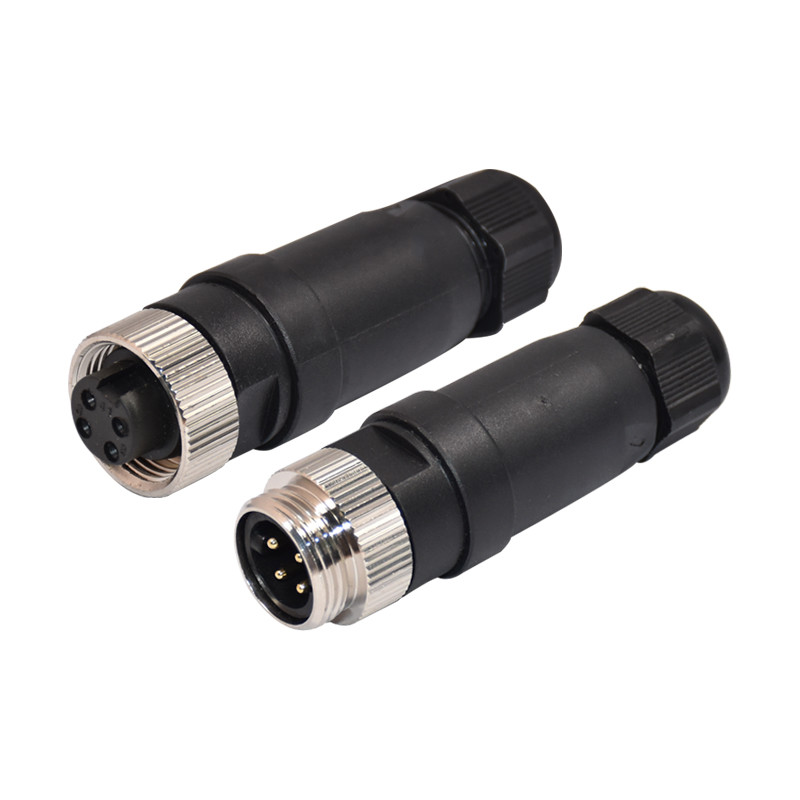

Product photos

TUV Mechanical Cable Connectors Higher Currents Mini Signal Waterproof Connector 0TUV Mechanical Cable Connectors Higher Currents Mini Signal Waterproof Connector 1

Application

• New energy
• LED lighting
• Industrial control product
• Automotive
• Security product
• Power Supply
• Electric Vehicle
• Solar Energy



FAQ



Q1. What kind of connectors you could supply?

A: M8, M12, M16, M23, Industrial waterproof connector, weipu connector, solenoid valve connector etc, also can customized based on buyer's requirements as long as tell us your details



Q2: How can I get a connector’s sample?

Sample in stock is free; you just need to pay shipping cost.



Q3: How long is your delivery time?

A: Sample is around 5 working days; Mass is 5-15 work days.



Q4: Why choose us?

A: 100% homemade, competitive price and fast delivery



Q5: Is it OK to print my Logo on the product?

A: Yes, OEM/ODM service is available.
