7/8'' Solder Waterproof Male Rear Panel Mount Connector 5pins For Signal

100pcs
MOQ
negotiable
Price
7/8'' Solder Waterproof Male Rear Panel Mount Connector 5pins For Signal
Features Gallery Product Description Request A Quote
Features
Specifications
Gender: Male
Product: 7/8'' Connector
Degree Of Protection: IP67
Poles: 5pins
Rated Current: 9A
Termination: Screw
Temperature Range: -40°C~+85°C
Type: Panel Mount Connector
Rated Voltage: 300V
Application: Signal
High Light:

5P Waterproof Panel Mount Connector

,

300V Rear Panel Mount Connector

,

9A Rear Panel Mount Connector

Basic Infomation
Place of Origin: China
Brand Name: Rigoal
Certification: CE,RoHS
Model Number: 7/8'' connector
Payment & Shipping Terms
Packaging Details: PE bag and Cartons
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Product Description

7/8'' Solder Waterproof Male Rear Panel Mount Connector 5pins For Signal





Product Description

Mini-change7/8'' panel mount connector



Electrical Data

Shell material: PBT(UL 94 V-0)

Matreial of contact body: PUR/PA(UL 94 HB)
Wire gauge: max.1.5mm(max.awg16)

Contact material: CuZn(brass)
Termination: threaded

Rated current: 9A
Temperature range:-40°C~+85°C
Rated voltage: 250v
Rated impluse voltage : 4000v
Overvoltage categorie: three

Cable outlet: 6-8mm,10-12mm, 12-14mm,14-18mm



Materials
Pin contact CuZn
Socket contact CuSn
Contact plating Au
Upper temperature PA66 (UL 94V-0)
Female insent PA66 (UL 94V-0)
Material of cable jacket PVC or PUR
Screw CuZn
Nut CuZn



General Characteristics
Number of contact 5
Locking system screw 7/8''-16UNF
Termination solder, moulded on cable, screw clamp
Wire guage in mm² max.1.5
Wire guage in AWG max.16
Shell protection IP67
Mechanical operation >500 mating cycles
Upper temperature +85℃
Lower temperature -25℃

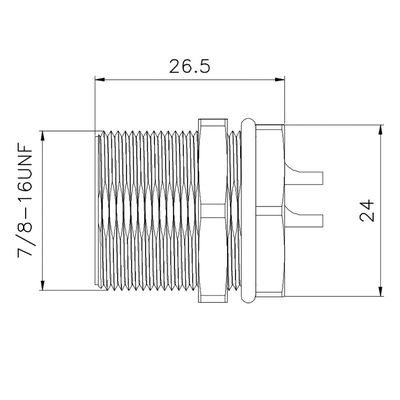

7/8'' Solder Waterproof Male Rear Panel Mount Connector 5pins For Signal 0




Product photos

7/8'' Solder Waterproof Male Rear Panel Mount Connector 5pins For Signal 17/8'' Solder Waterproof Male Rear Panel Mount Connector 5pins For Signal 2



FAQ

Q1. Are you a factory?

A: Yes, we are a 100% factory.

Q2. Can you produce customized product orders? OEM or ODM orders?
A: Sure, with 7+years of OEM and ODM manufacturing experience, we can provide you with one-stop connector solutions.

Q3. What's your regular production time after order is placed and confirmed?

A: Generally 3~5 days for standard products. If customized products,lead time is about 10~12 Days. If your project involves new molds to make, lead time is subject to custom product complex.
