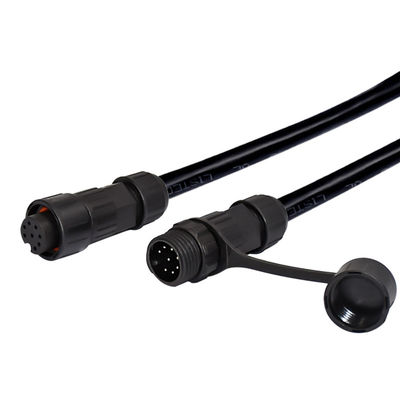

M16 Screw Terminal Wire UL IP67 Electric Power Cable Molded LED Waterproof Connector
Product description
1/. 2 3 4 5 6 8 10 12 pin for choice.
2/. M16 connector is male female cable over molding type, with favorable waterproof level IP67.
3/. Widely apply in power, driver, controler, signal, led lighting, electrical equipment, and outdoor exploration equipment, etc.
4/. Rigoal Connectors, also called waterproof connector, IP connector, led connector, power connector, cable connector, electrical connector, electric connector, waterproof plug, power plug, wire connector, circular connector, nylon connector.
Product details
Temination: Screw
Type: assembly connector
Contacts: 2pins 3pins 4pins
Voltage rating: 250V
Current rating: 20A or 15A
Wire gague: <=1.0mm²
Cable OD: Max.5.5mm/7.5mm/10.0mm
Withstand voltage: 1000V
Contact resistance: 5
Waterproof level: IP67
Electrical data
| Connector Body | Nylon(PA66)+GF UL94V-0 1/16'' |
| Contact | Brass with Gold Plated |
| Sealing | Silica Gel |
| Current Rating | 15AMP |
| Voltage Rating | 250V |
| Contact Resistance | <10mΩ |
| Insulation Resistance | 1000MΩ at DC 500V |
| Breakdown Voltage | 1.5KV/1minute |
| Temperature Rating | -45°C~+105°C |
| Durability(Plug/Unplug) | 3000 times |
| Waterproof Rating | IP67 |
| Cable Max. Diameter | 8.5 mm |
| Pins Range | 2, 3, 4, 5, 6, 7, 8, 9, 10,11,12 |
| Certificate | CE; RoHS |
Product photos
Why Choose us
(1). We are China prosfessional waterproof connectors manufacturer.
(2). 100% QC inspection before delivery.
(3). Best Quality& Best Service with a relative low price.
(4). Alibaba assessed 7+ years of experience.
(5). Advanced production equipment&strong technical strength ensure high-quality and creative products.
