Waterproof LED Connectors Convenient Assemble Screw Waterproof 3 Pin Connector
100pcs
MOQ
Negotiable
Price
Waterproof LED Connectors Convenient Assemble Screw Waterproof 3 Pin Connector
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Rigoal
Certification: CE,RoSH
Model Number: L20
High Light:

CCC Waterproof LED Connectors

,

RoHS Waterproof LED Connectors

,

CCC Waterproof 3 Pin Connector

Payment & Shipping Terms
Packaging Details: PE bag and Cartons
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union
Specifications
Type: L20 Waterproof Connector
Gender: Female
Contacts: 3pinsA
Max Cable OD: 7.5MM
IP Rating: IP68
Contactor Material: Phosphor Copper With Gold Plated
Connector Type: 4 Ways
Withstand Voltage: 1000V
Wire Gague(mm): <=1.0mm²
Current Rating(A): 15A
Product Description

LED Waterproof Connector 4ways 2pins L20 IP67 Screw T Type Assembly Solar Connector



Product description

1. Our connector can be used outdoor during harsh winter or sweat summer, the endurance temperature range is -40℃-105℃.

2. Every product will be inspected strictly, we guarantee its good quality before delivery.

3. Advanced production equipment & strong technical strength ensure high quality and competitive products.



Product details

♦ IP67 protection level

♦ Current rating: 25A per contact

♦ Voltage rating: 500V

♦ Accepted Max.Cable OD: 9.0 mm

♦ Field installable,Welding connection

♦ CCC, CE,RoHS
♦ High quality with 12 months waranty

♦ Pin range: 2, 3,4.

♦ Customer's drawings and designs are welcome, as we have our own professional R&D team to provide

you various solutions

♦ Application: our products are widely used in LED lighting, outdoor display, elctrical equipments,

automation machines, electrical vehicle and etc...

Pin Number Voltage Rating Current Rating Contact Resistance Insulation Resistance IP Code Cable Diameter Breakdown Voltage
2 300V 20A <=10mMΩ 1000MMΩ IP67 <=11mm 1.5KV/1 minute
3 300V 20A <=10mMΩ 1000MMΩ IP67 <=11mm 1.5KV/1 minute
4 300V 15A <=10mMΩ 1000MMΩ IP67 <=11mm 1.5KV/1 minute



Material

Connector Body: Nylon

Max cable OD: 7.5MM

Contact material: phosphor copper with Ni plated

Breakdown Voltage:1.5KV/1minute

Temperature Rating: -45°C~+105°C

Durability(Plug/Unplug): 3000 times



Gender female
Contacts 2Pins 4ways
Current Rating(A) 15A
Voltage rating(V) 250V



Product photos

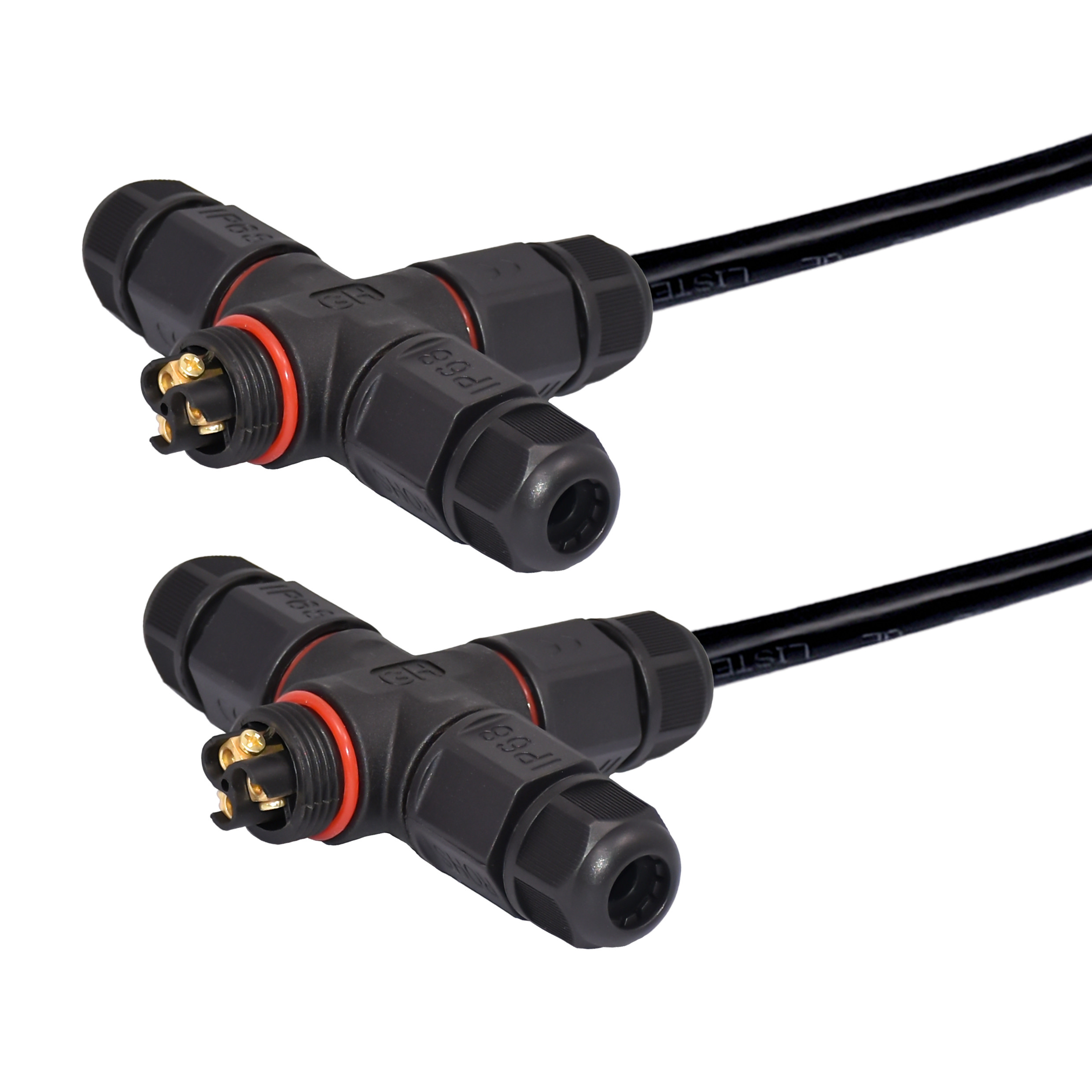

Waterproof LED Connectors Convenient Assemble Screw Waterproof 3 Pin Connector 0



Waterproof LED Connectors Convenient Assemble Screw Waterproof 3 Pin Connector 1Waterproof LED Connectors Convenient Assemble Screw Waterproof 3 Pin Connector 2

Waterproof LED Connectors Convenient Assemble Screw Waterproof 3 Pin Connector 3

IP68 Circular connector

1. Resistance to water submersion

2. L20 waterproof connector of Rigoal is designed to guarantee highest reliability under severe application conditions

3. Resistance to water, damp,dust

4. ODM / OEM are avaliable

5. 100% QC inspection before delivery
