Sensor Waterproof Connector M12 A Code Male Or Femle Assembly Plug metal case PA66 nickel 4A
100PCS
MOQ
USD2-6/PCS
Price
Sensor Waterproof Connector M12 A Code Male Or Femle Assembly Plug metal case  PA66 nickel 4A
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: RIGOAL
Certification: CE.ROHS.IP68
Model Number: RG-M12AM0403
Payment & Shipping Terms
Packaging Details: PE bag
Delivery Time: 7-15 work days
Payment Terms: T/T
Supply Ability: 100000pcs
Specifications
Connector Coded: A
Number Of Positions: 3~8PIN
Rated Voltage: 30V-250V
Rated Current: 1.5A~4A
Insulation Resistance: ≥ 100 MΩ
Connection Method: Solder
Insertion/withdrawal Cycles: > 100
Contact Material: CuZn
Contact Surface Material: Au
Contact Carrier Material: PA 66
Material: Nickel
Ambient Temperature: -40 °C ~+80°C
Degree Of Protection: IP67/IP68
Product Description

Sensor Waterproof Connector M12 A Code Male Or Femle Assembly Plug Metal Case  PA66 Nickel 4A







M12 A Code Male assembly metal case waterproof connector

Sensor Waterproof Connector M12 A Code Male Or Femle Assembly Plug metal case  PA66 nickel 4A 0













M12 A Code female assembly metal case waterproof connector

Sensor Waterproof Connector M12 A Code Male Or Femle Assembly Plug metal case  PA66 nickel 4A 1

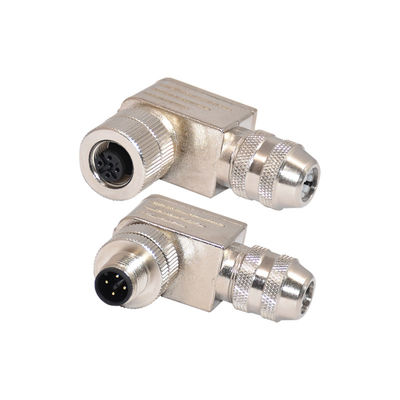

M12 A Code Male assembly metal case 90 bend connector

Sensor Waterproof Connector M12 A Code Male Or Femle Assembly Plug metal case  PA66 nickel 4A 2















M12 A Code female assembly metal case 90 bend connector

Sensor Waterproof Connector M12 A Code Male Or Femle Assembly Plug metal case  PA66 nickel 4A 3









Characteristics of M12 Series

General Characteristics
Number of contact 3 4 5 8 12 17
Locking system screw M12*1.0
Termination solder, moulded on cable, crimp or screw clamp
Wire guage in mm² 0.14/0.25/0.34/0.5 etc
Wire guage in AWG 26/24/22/20 etc
Shell protection IP67/IP68
Mechanical operation >500 mating cycles
Upper temperature +85
Lower temperature -25
Electrical Characteristics
Rated voltage 250V 60V 30V
Pollution degree III
Test voltage 500V±15V
Rated current(40℃) 4A 1.5A
Contact resistance ≤10mΩ
insulation resistance ≥100MΩ
Materials
Pin contact CuZn
Socket contact CuSn
Contact plating Au
Upper temperature PA66(UL 94V-0)
Female insent PA66(UL 94V-0)
Material of cable jacket PVC or PUR
Screw CuZn
Nut CuZn











Quality statement:

● Screws/nuts materials: brass with nickel plating, CNC parts

● Male contacts materials: brass with gold plating, machined solid pin

● Female contacts materials: phosphor bronze with gold plating, machined solid pin

● Protection degrees: IP67/IP68 in locked status

● RoHS Directive-compliant

Our Services:

● Fast Samples delivery service

● Quote within 24 hours

● Professional teams with RD & Sales for your projects

● Special service for your urgent case

● Customer is always our focus.





FAQ:

Q: Why choose us?

A:1.100% home made,competitive price and fast delivery.

2.strict quality control.Certified by ISO9001:2000/ELT/TUV/CE/PSE/CQC/ROHS/UL.

Q: How long is your delivery time?

A: Sample is 1-3 days;Mass products is 5-7 days.

Q: Do you provide samples?is it free or extra?

A: Yes,we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment?

A: We accept Multiple payment methods such us T/T in advance,Paypal,Western Union,Alitrade assurance and so on.

Q: Is it OK to print my Logo on the product?
