M12 8pin A Coding Male To RJ45 Ethernet Molded Shielded Waterproof Connector Cable IP68

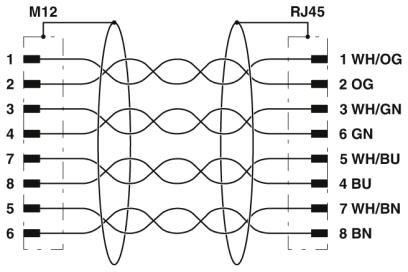

| Component | Parameter | Requirement | ||||||||
| M12-8 Connector | Nut | Material | Stainless steel | |||||||
| PlatIng Size (knurl length) | Passivate 16.Smm | |||||||||
| Ceding | Type | A Code | ||||||||
| Pins | Material | Brass | ||||||||
| Plating | Gold plate | |||||||||
| Type | IEC | |||||||||
| Insert | Material | Zinc DieCast, Nickle Plate | ||||||||
| Overmold | Material | PVC | ||||||||
| Strain Relief | length | lSmm | ||||||||
| RJ-45 Connector | Connector Type | Type | Cat 6 | |||||||
| Shield | Type | Full | ||||||||
| Material | Brass | |||||||||
| Plating | Tin | |||||||||
| Overmold | Material | PVC | ||||||||
| Overall Length | 33mm | |||||||||
| Lock protection | Molded anti-snag feature | |||||||||
| Cable | Type | Type | Cat Se | |||||||
| UL Style | 2464 | |||||||||
| Jacket | Jacket material | PVC | ||||||||
| Jacket thickness | O.Bmm | |||||||||
| Overall Dia | 6.Smm | |||||||||
| Jacket color | Teal | |||||||||
| Conductors | Pairing | 4 twisted pairs | ||||||||
| Wire | 26AWG | |||||||||
| Cond insulation material | Polypropylene | |||||||||
| Cond overall dia | 1.0mm | |||||||||
| Stranding | 19 I 38AWG | |||||||||
| Shield | Type | Braid | ||||||||
| Braid wire | 38 AWG tinned copper | |||||||||
| Braid coverage | >90% | |||||||||
| Cable Assembly | Perfomance | Current rating | 2A | |||||||
| Voltage rating | 60V | |||||||||
| Operating temp | -OC - SOC | |||||||||
| Linear Bend Cycle rating | 1,000K (10 x OD) | |||||||||
| Tortional Cycle rating | 30K (180°) | |||||||||
| Compliance (elect) | UL or CSA comp parts | |||||||||
| Compliance (env) | Rohs | |||||||||
| Flame Rating | IEC 60332-1-2 | |||||||||
| Protection (moisture) | IEC IP67 | |||||||||
| Electrical | EIA-TIA 568 B.2 | |||||||||
Product Description
General values
Connector design :connecting cord
Connector locking system :bolted
Termination :moulded on cable
Wire gauge (AWG) :4x2xAWG26
Upper limit temperature :85 °C
Lower limit temperature :-40 °C
Approval 1 :UL listed
Electrical values
Rated current (40 °C) :0,5 A
Rated voltage :50V AC, 60V DC V
Pollution degree :3
Overvoltage category :II
Insulating material group :II
Volume resistivity :≤ 15 mΩ
Insulation resistance :>10^8Ω
EMC compliance :shielded
Degree of protection :IP67
Mechanical operation :> 100 Mating cycles
Material
Contact material :CuZn (brass)
Contact plating :Au (gold)
Contact body material :PA
Housing material :PUR
