M12 Waterproof IP67 4pin Male 90 Degree PCB Panel Mount A Coding Connector
100
MOQ
Negotiable
Price
M12 Waterproof IP67 4pin Male 90 Degree PCB Panel Mount A Coding Connector
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Rigoal
Certification: CE,RoHS
Model Number: m12 panel mount connector
Payment & Shipping Terms
Packaging Details: PE bag and Cartons
Delivery Time: 10-15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Specifications
Product Name: M12 Connector
Type: Panel Mount
Pins: 4pins
Gender: Male
Mating Cycle: >500times
Degree Of Protection: IP67
Code Type: A.B.C.D
Number Of Contacts: 3.4.5.8.12pins
Shielded: Avaliable
Coding: A Type
Product Description

M12 Waterproof IP67 4pin Male 90 Degree PCB Panel Mount A Coding Connector



Quick details

Core type: A.B.C.D

Contacts:3.4.5.8.12pins

Rated current: 4A

Rated AC/DC: 350V

Cable size: 0.34mm

Cable size AWG:22

Mating Cycle:500times

Temperature:-40°C~+80°C

Degree of protection: IP67/68



Material

Cable material: PUR/PVC

Shell material: copper/Zinc

Core material:PA

Insert/ Housing: TPU

Overmold material:PVC/TPU

Terminal material:Phosphor copper

Coupling nut/screw: Brass with nickel plated screw





Electrical Characteristics
Rated voltage 250V 60V 30V
Pollution degree III
Test voltage 500V±15V
Rated current(40℃) 4A 1.5A
Contact resistance ≤10mΩ
insulation resistance ≥100MΩ



Product photos

M12 Waterproof IP67 4pin Male 90 Degree PCB Panel Mount A Coding Connector 0

M12 Waterproof IP67 4pin Male 90 Degree PCB Panel Mount A Coding Connector 1

M12 Waterproof IP67 4pin Male 90 Degree PCB Panel Mount A Coding Connector 2

M12 Waterproof IP67 4pin Male 90 Degree PCB Panel Mount A Coding Connector 3

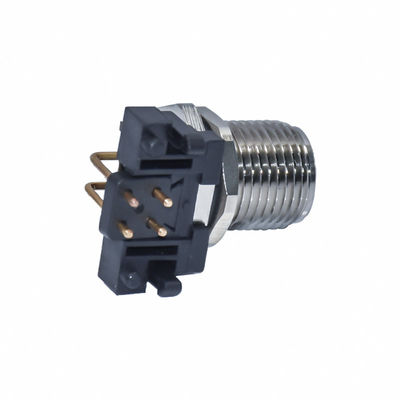

M12 Waterproof IP67 4pin Male 90 Degree PCB Panel Mount A Coding Connector 4M12 Waterproof IP67 4pin Male 90 Degree PCB Panel Mount A Coding Connector 5M12 Waterproof IP67 4pin Male 90 Degree PCB Panel Mount A Coding Connector 6M12 Waterproof IP67 4pin Male 90 Degree PCB Panel Mount A Coding Connector 7



M12 Waterproof IP67 4pin Male 90 Degree PCB Panel Mount A Coding Connector 8

Applications

● Standard sensor, actuator, encoder, servo motors

● Factory automation and process control

● Industrial instrumentation

● Commercial electronics PCBA

● Industrial safety light curtain, light grid, switches

● Power supply

● Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000

● LED display panel & outdoor LED lighting

M12 Waterproof IP67 4pin Male 90 Degree PCB Panel Mount A Coding Connector 9
