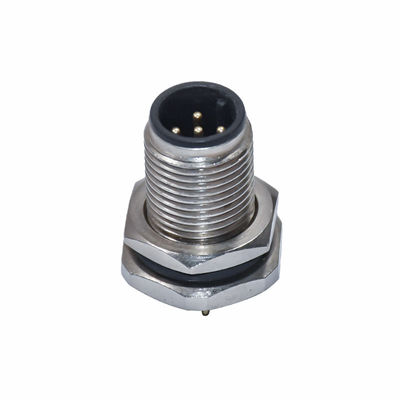

Electronics Housings 5 Pin Straight M12 Waterproof Screw Lock Wire PCB Panel Flang Connector
100
MOQ
negotiations
Price
Electronics Housings 5 Pin Straight M12 Waterproof Screw Lock Wire PCB Panel Flang Connector
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Shen zhen, China
Brand Name: RIGOAL
Certification: CE,RoSH
Model Number: M12 Panel Receptacles
Payment & Shipping Terms
Packaging Details: 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.
Delivery Time: 14
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000
Specifications
Pins: 5P
Mounting Type: PCB Mount / Panel Mount / Cable
Mounting Feature: Front Mount / Back Mount / 4 Hole Flange
Rated Voltage: 250V For 3/4 Pin, 60V For 5pin, 30V For 8/12/17pin
Coding: A / B / C / D / K / L / X / S / T Code
Orientation: Straight / Right Angle
Temperature Range: -25°C ~ + 85°C
Termination Style: Solder Type / PCB Mount
Product Description

Electronics Housings 5 Pin Straight M12 Screw Lock Wire PCB Panel Flang Connector

Electronics Housings 5 Pin Straight M12 Waterproof Screw Lock Wire PCB Panel Flang Connector 0Electronics Housings 5 Pin Straight M12 Waterproof Screw Lock Wire PCB Panel Flang Connector 1Electronics Housings 5 Pin Straight M12 Waterproof Screw Lock Wire PCB Panel Flang Connector 2Electronics Housings 5 Pin Straight M12 Waterproof Screw Lock Wire PCB Panel Flang Connector 3Electronics Housings 5 Pin Straight M12 Waterproof Screw Lock Wire PCB Panel Flang Connector 4

Electronics Housings 5 Pin Straight M12 Waterproof Screw Lock Wire PCB Panel Flang Connector 5



Product Detail

Coding A / B / C / D / K / L / X / S / T Code
Number of Positions 2 / 3 / 4 / 5 / 6 / 8 / 12 / 17 PIN
Gender Male / Female
Orientation Straight / Right Angle
Mounting Type PCB Mount / Panel Mount / Cable
Termination Style Solder Type / PCB Mount
Mounting Feature Front Mount / Back Mount / 4 Hole Flange
Temperature Range -25°C ~ + 85°C
Rated voltage 250V for 3/4 pin, 60V for 5pin, 30V for 8/12/17pin
Product Keywords M12 Screw Lock Wire PCB Panel Flang Connector



Basic Product Information

Connector Series

M12

Gender

Male

Coding

A/B/C/D

Locking Type

Fix Screw

Mounting Type

Rear fastened

Part No.

MB12MS*RHD**ST-3

* refers to coding type

** refers to pins number
