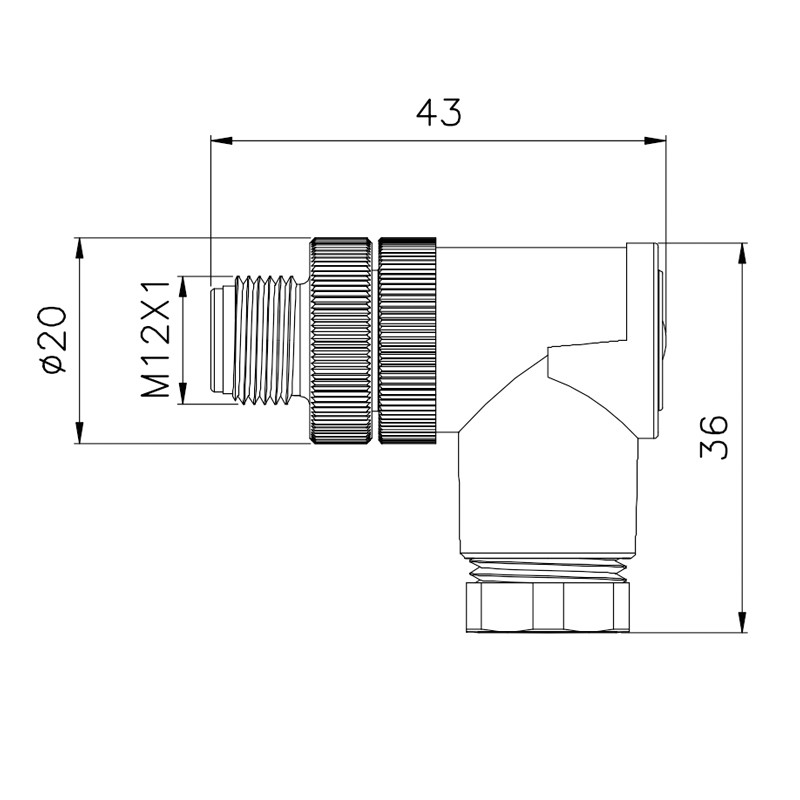

IP67 M12 Waterproof Connector Right Angle Elbow SMT Solder Jst Wire Straight
100
MOQ
Price negotiations
Price
IP67 M12 Waterproof Connector Right Angle Elbow SMT Solder Jst Wire Straight
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Shen zhen , China
Brand Name: Rigoal
Certification: CE , ROHS
Model Number: m12 waterproof connector
High Light:

Rigoal M12 Waterproof Connector

,

Waterproof M12 Plug Connector

,

IP67 M12 Waterproof Connector

Payment & Shipping Terms
Packaging Details: 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.
Delivery Time: 14
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000
Specifications
Pins: 4p, 5P, 12p, 3P, 8P, 2P
Code: A / B / C / D / K / L / X / S / T Code
Connector Type: To M12 / D-sub / RJ45 / USB / MINI DIN / M8 / GX12
Rated Voltage: 250V For 3/4 Pin, 60V For 5/6pin, 30V For 8/12/17pin
IP Rating: IP67 / IP68
Type: Circular Connector
Gender: Female Male
Product Name: Automotive M12 Circular Connector Cable
Ambient Temperature: -25°C ~ + 85°C
Product Description

Industrial Plug Sensor Waterproof Right Angle Elbow Smt Solder Jst Wire Straight M12 Male Waterproof Connector



Products Feature



Standard IEC 61076-2-101 / 104
Gender Male / Female
Number of Contacts 2 / 3 / 4 / 5 / 8 / 12 / 17 Pin
Coding A / B / C / D / K / L / X / S / T Code
Termination Soldering / PCB / Srew - Jo1nt
Cable length Base on customer's request
Contacts plating Gold plated, thickness 1 U"

Orientation Straight / Right Angle
Insert/ Housing NYLON66 + GF
Overmold / Shell Metal shell
Connector contacts Brass with gold plated
Rated current 4A: 3 / 4 / 5Pin 2A: 8 Pin 1.5A: 12 Pin
Rated Voltage 250V: 3 / 4 / 5 Pin 60V: 8 Pin 30V: 12Pin
Ambient temperature -40°C~ + 90°C
Coupling nut / screw Brass with nickel plated screw
Insulation resistance ≥100MΩ
Sealing Epoxy resin
Contacts resistance ≤5MΩ

IP67 M12 Waterproof Connector Right Angle Elbow SMT Solder Jst Wire Straight 0IP67 M12 Waterproof Connector Right Angle Elbow SMT Solder Jst Wire Straight 1IP67 M12 Waterproof Connector Right Angle Elbow SMT Solder Jst Wire Straight 2IP67 M12 Waterproof Connector Right Angle Elbow SMT Solder Jst Wire Straight 3
