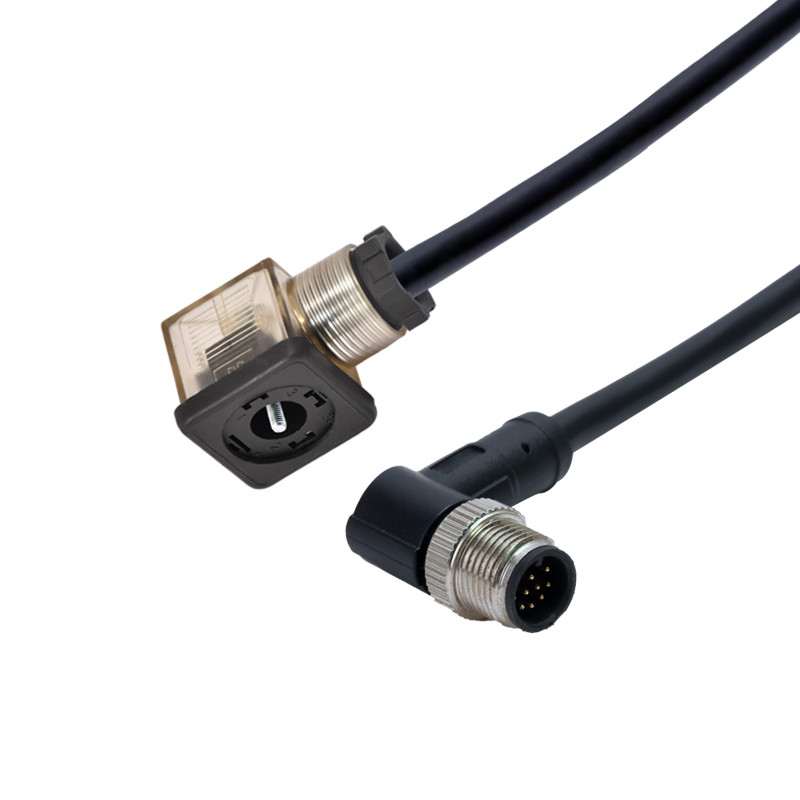

Transparent TPU IP67 M12 Solenoid Valve Connector 8A 250V With Zn Plating

100
MOQ
negotiable
Price
Transparent TPU IP67 M12 Solenoid Valve Connector 8A 250V With Zn Plating
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: M12 To Solenoid Value Connector Cable
Application: Automotive, Sensor,Automotion
Insert Material: TPU+GF
Contact Material: Brass With Gold Plated
Overmold Material: Transparent TPU
Coupling Material: Brass With Nickel Plated
Number Of Pole: 3pins
Operate Temperature: -20℃~+80℃
Degree Of Protect: IP67/IP68
Standard: IEC 61076-2-101
High Light:

Transparent TPU M12 Solenoid Valve Connector

,

IP67 M12 Solenoid Valve Connector

,

8A 250V Solenoid Cable Connector

Basic Infomation
Place of Origin: China ShenZhen
Brand Name: Rigoal
Certification: CE , Rohs , IP68
Model Number: M12 molding
Payment & Shipping Terms
Packaging Details: 46x30x30
Delivery Time: 30work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000
Product Description

M12 to Solenoid value connector cable

Equivalent to Binder, Phoenix

2pin+2PE, 2pin+PE, 3pin, 4pin are available

3pin, 4pin, 5pin, 8pin, 12pin are avaliable

Stright and right angle are available

IP67/IP68, RoHS, REACH, UL certification

image001(001) image003(001)

Valve Electrical Data:

Rated current: 8A/10A
Rated voltag: 24V/250V
Contact resistance: ≤4mΩ
Insulation resistance: ≥100MΩ



Valve Connector Specification:

Pin dimensions: 6.3x0.8mm, 4.8x0.8mm
Waterproof O-ring: FKM
Connector over-mold: TPU
Material of female connetor contact: PS with silver plating
Connector screw: Stell with Zn plating



M12 3Pin A Code

image005image006



M12 Electrical Data:

Rated current: 4A
Rated voltag: 250V
Contact resistance: ≤4mΩ
Insulation resistance: ≥100MΩ



M12 Connector Specification:

Gender: Male And Female
Insert: PA66+GF
Contacts: Brass / Phosphorus copper with gold plated
Screw: Brass with nickel plated
Over-mold: PVC / TPU
Connector locking system: Screw locking
Degree of protection: IP67 in locked condition



M12 Cable/Wire Specification:

Wire gauge (AWG): 22AWG / 24AWG
Wire gauge (mm²): 0.34mm² / 0.25mm²
Jacket material: PVC / PUR
Temperature range: -40°C ~ +105°C



Standard M12

• The M12 circular connector we produced conform to international standard IEC61076-2-101 with M12*1.0 screw locking compatible with Binder, Phoenix, Lumburger-automation...
• Waterproof rating is IP67, protected from dust and water during immersion,resistant to many oils and chemical




Certifications




Package&Shipping:

Packaging

1. Generay Package :Each pcs put in one samll waterproof PE bag,then put in a carton

Details: Add the label, about 200 hundred pieces connector put in one carton, Carton size:46*30*30cm

2. OEM/ODM package is avaiable

3. According to customer choice.



Shipping

We can according to customer request choose different ship way,which more converence ,which we will choose!

image022_




Our Service

1:Low cost with high quality products
2:Effective communication and rapid reponse
3:We test each item before shipping out ensure they are in good condition
4:Quality management according to IPC standard
