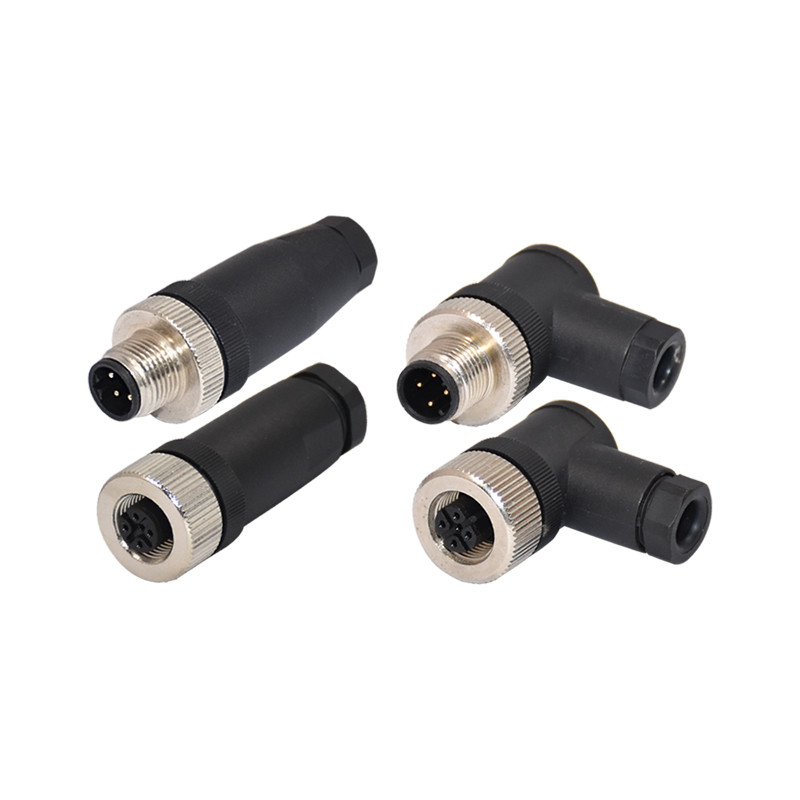

AWG18 M12 Male Assembly Waterproof Connector IEC IP67 Female
100
MOQ
5.5
Price
AWG18 M12 Male Assembly Waterproof Connector IEC IP67 Female
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China ShenZhen
Brand Name: Rigoal
Certification: CE , ROSH , IP68
Model Number: M16 Straight type
High Light:

AWG18 Male Assembly Waterproof Connector

,

M12 Male Assembly Waterproof Connector

,

IEC IP67 M12 Female Connector

Payment & Shipping Terms
Packaging Details: 46x30x30
Delivery Time: 30work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000
Specifications
Place Of Origin: China
Type: Waterproof Connector, Waterproof Connector
Application: Automation
Series: M12
Coding: A,B,C,D,X
Material Of Contact: CuZn(Brass)
Material Of Contact Body: PA
Connector Locking: Screw
Wire Gouge: AWG26-AWG24
Rated Current: 4A
Product Description

M12 male assembly waterproof connector

Specifications:

Housing Material / Color Nylon / Black
Contacts Brass / Gold
Coupling Nut Material / Plating Brass / Nickel
O-ring Material NBR
Operating Current 4A
Operating Voltage 250V
Operating Temperature -25℃ ~ +85℃
Protection Class IEC IP67
Cable Diameter 4-8MM
Connection Method Screw Connection
Conductor Cross Section(AWG) 26-18AWG(0.14-0.75mm²)



About M12 connectors:

The M12 series features sensor and actuator connectors with locking thread for electronics automation, process control, and commercial electronics.

We offer many different cable connectors, panel mount receptacles, field attachable/ installable connectors and various accessories.

Our connectors have industry standard A/B/C/D/S/T/X cording, for both screw locking and quick-locking styles.



Product diagram

image001(001)

Product Name:

M12 female connector angled plastic assembly waterproof connector

Model number:M12P-D-S

Series:M12 Connector
Core number:3,4(A/B/D),5,8Core
Authentication:CE,RoHS
Waterproof:IP67/IP68




Certifications




Package&Shipping:

1. Generay Package :Each pcs put in one samll waterproof PE bag,then put in a carton Details: Add the label, about 200 hundred pieces connector put in one carton, Carton size:40*30*30cm

2. OEM/ODM package is available

3. According to customer choice.

image022_




Our Services

1. Low MOQ: It can meet your business very well.
2. Good services: We treat you as our friends.
3. Packaging: Package will do after several discussions with you.
4. Best price: The products are directly from our factory. So it saves a lot secondary cost.
5. Good quality: The only will start after you confirm the samples and the products will do 100% inspection before shipping.
6. OEM accepted: Please send us your design and other important information. OEM are always welcome.
