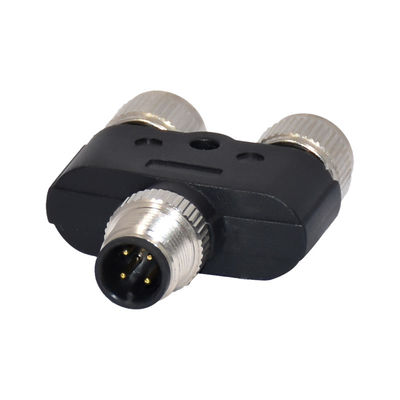

Y Type 4A 60V CuZn Brass M12 Adapter Connector PA Right Angle

100
MOQ
negotiable
Price
Y Type 4A 60V CuZn Brass M12 Adapter Connector PA Right Angle
Features Gallery Product Description Request A Quote
Features
Specifications
Place Of Origin: China
Type: Waterproof Connector, Waterproof Connector
Application: Automation
Series: M12
Coding: A,B,C,D,X
Material Of Contact: CuZn(Brass)
Material Of Contact Body: PA
Connector Locking: Screw
Wire Gouge: AWG26-AWG24
Rated Current: 4A
High Light:

CuZn Brass M12 Adapter Connector

,

4A 60V M12 Adapter Connector

,

PA M12 Right Angle Connector

Basic Infomation
Brand Name: Rigoal
Certification: CE , ROHS , IP68
Model Number: Y type connector
Payment & Shipping Terms
Packaging Details: 46x30x30
Delivery Time: 30work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000
Product Description

M12 Y type adapter connector

Product Description

· Series: M12 Y Type Adapter

· Pin Numbers: 3, 4, 5, 6, 8,12 Poles are acceptable

· Gender: Male/Female

· Code: A, B, D Code are acceptable

· Feature: Water and Dustproof to IP67 when mated with compatible connector



Datasheet
Contacts 4pin
Nominal Current 4A
Rated Voltage 60V
Degree of Protection IP67
Material contact/contact surface Cuzn/alloy
Termination solder
Mounting Type T type
Contact Type one male to two female





The M12 field wireable connectors are used to build custom patch cables, provide a quick-disconnect for a device, terminate field devices on an I/O block, or bring multiple sensor signals into one port.
M12 field-installable connectors support higher bandwidth while providing an IP67 rated solution for demanding applications.



Product diagram

image001(001)

Product Name:

M12 Y adapter connector M12 male splitter

model number: M12Y

series: M12 Connector
Core number:3,4,5,6,8Core
Authentication:CE,RoHS
Waterproof:IP67/IP68

image003(001) image005(001)



Product application:

M12 series features sensor and actuator connectors with a locking thread for electronics automation, process control, and commercial electronics. We offer many different cable connectors, panel mounted receptacles, field attachable/installable connectors and various accessories. Our connectors have industry-standard, for both screw-locking and quick-locking styles.



Connector specification:

Coding: A, B, C, D, S, X, T
Ambient temperature: -20 ° C ~ + 80 ° C
Insulation resistance ≥ 100M Ω
Peotection degree: IP67 / IP68
Certified: CE and & RoHs
Insert: PA + GF
Contact: Brass with golding
Bolt / nut: Brass with nickel
Overmold: PVC/TPU



Certifications




Package&Shipping:

Customers want

1.High quality and competitive price

2.Stable delivery and excellent service

3.Reliable warranty and after-sales service

We provide

1.100% quality assurance, all broke parts can be guaranteed within 30 days after received.

2.According to customer requirement, provide 10 years warranty.

3.Repairs parts are available within 10years; EOL products will be always informed to you.

4.Supply free LOGO to the surface of overmolded connectors upon customers' requirement.
