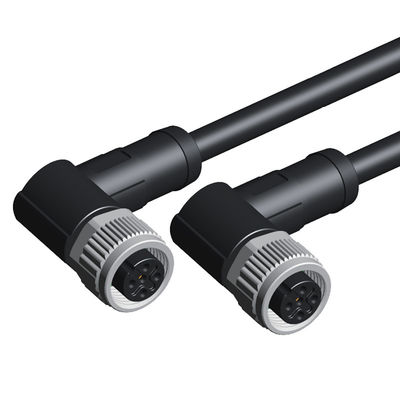

Shileded Molding Cable M12 Female Connector IEC 61076-2-101 CCC

100
MOQ
negotiable
Price
Shileded Molding Cable M12 Female Connector IEC 61076-2-101 CCC
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: M12 Female Shileded Molding Cable
Termination: Solder
Insert Material: TPU+GF
Contact Material: Brass With Gold Plated
Overmold Material: Transparent TPU
Coupling Material: Brass With Nickel Plated
Number Of Pole: 2,3,4,5,6,8,12 17pins
Operate Temperature: -20℃~+80℃
Degree Of Protect: IP67/IP68
Standard: IEC 61076-2-101
High Light:

Shileded Molding Cable M12 Female Connector

,

IEC 61076-2-101 M12 Female Connector

,

CCC M12 Right Angle Connector

Basic Infomation
Place of Origin: China ShenZhen
Brand Name: Rigoal
Certification: CE , ROHS , IP68
Model Number: molding connector
Payment & Shipping Terms
Packaging Details: 46x30x30
Delivery Time: 30work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000
Product Description

M12 female shileded molding cable

Characteristics of M12 Series




Product diagram

Advantages :

1. High degree of protection IP67, safe to use on site

2. High quality gold-plated solid phosphor bronze contacts , ≥ 600 times mating life

3. Anti-vibration locking screw design

4. Support samples, retail and bulk orders

image003(001) image005(001)
image007(001) image009(001)

Description

Degree of protection IP67

3 4 5 8 10 12 poles are available
Anti-vibration locking screw design
RoHS & REACH Compliance



Electrical Data

Rated voltage:30V

Insulation resistance:100MΩ
Rated current::4A
Contact resistance:≤5mΩ
Ambient temperature:-20°C~+80°C



Connector Specification

Polarity:3pins, 4pins,5pins,8pins,12pins
Overmold:Transparent TPU
Contacts:Brass with gold plated
Insert:TPU+GF
Coupling nut/screw:Brass with nickel plated
Degree of protection:IP67 in locked condition

Certifications




Our Services

Customers want

1/. High quality and competitive price

2/. Stable delivery and excellent service

3/. Reliable warranty and after-sales service

We provide

1/. 100% quality assurance, all broke parts can be guaranteed within 30 days after received.

2/. According to customer requirement, provide 10 years warranty.

3/. Repairs parts are available within 10years; EOL products will be always informed to you.

4/. Supply free LOGO to the surface of over-molded connectors upon customers' requirement.





Package&Shipping:

Packaging

1.Our general packing:erery pcs in one samll PE bag,then add the label. many pcs(100 or 200 etc)in one with waterproof PE bag contons.samll size:12mm*12mm. Carton size:46*30*30cm

2.According to customer request.

Shipping

We can according to customer request choose different transport way,which more converence ,which we will choose!
