CuZn PA AWG24 M12 Waterproof Connector PA66 M12 Screw Connector
100
MOQ
5.5
Price
CuZn PA AWG24 M12 Waterproof Connector PA66 M12 Screw Connector
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China ShenZhen
Brand Name: Rigoal
Certification: CE , ROHS , IP68
Model Number: panel mount
High Light:

CuZn PA M12 Waterproof Connector

,

AWG24 M12 Waterproof Connector

,

PA66 M12 Screw Connector

Payment & Shipping Terms
Packaging Details: 46x30x30
Delivery Time: 30work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000
Specifications
Place Of Origin: China
Type: Waterproof Connector, Waterproof Connector
Application: Automation
Series: M12
Coding: A,B,C,D,X
Material Of Contact: CuZn(Brass)
Material Of Contact Body: PA
Connector Locking: Screw
Wire Gouge: AWG26-AWG24
Rated Current: 4A
Product Description

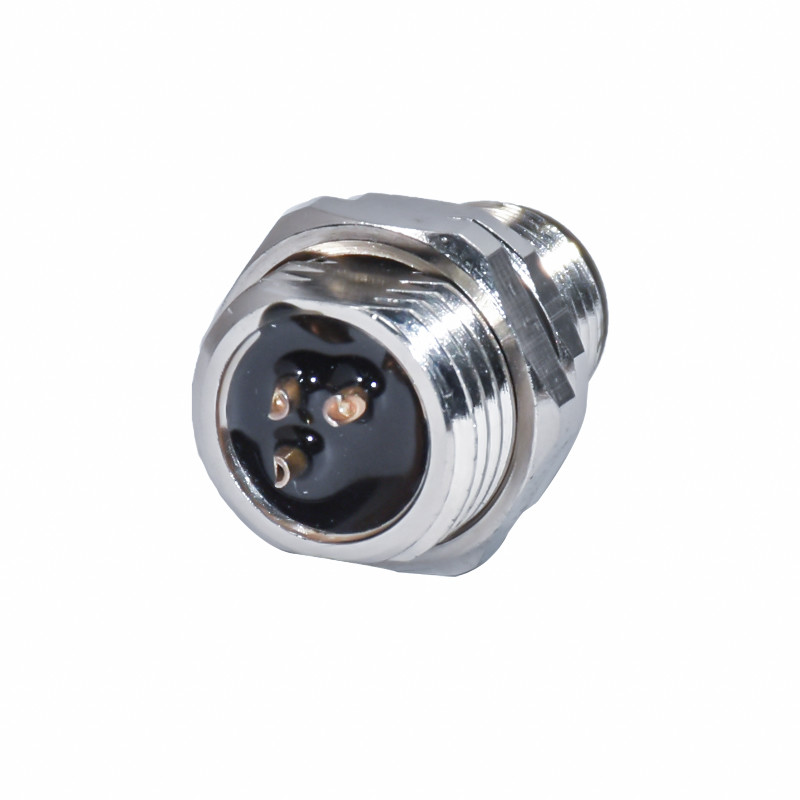

M12 male or female receptacle

Characteristics of M12 Series

General Characteristics
Number of contact 3 4 5 8 12 17
Locking system screw M12*1.0
Termination solder, moulded on cable, crimp or screw clamp
Wire guage in mm² 0.14/0.25/0.34/0.5 etc
Wire guage in AWG 26/24/22/20 etc
Shell protection IP67/IP68
Mechanical operation >500 mating cycles
Upper temperature +85℃
Lower temperature -25℃
Electrical Characteristics
Rated voltage 250V 60V 30V
Pollution degree III
Test voltage 500V±15V
Rated current(40℃) 4A 1.5A
Contact resistance ≤10mΩ
Insulation resistance ≥100MΩ
Materials
Pin contact CuZn
Socket contact CuSn
Contact plating Au
Upper temperature PA66(UL 94V-0)
Female insent PA66(UL 94V-0)
Material of cable jacket PVC or PUR
Screw CuZn
Nut CuZn

1.What is the difference between M12 connector coding?

A-coded mostly used in sensors, actuators, motors, and most other standard devices. it usually between 2 and 12 pins.

B-coded mostly used in network cables for Fieldbus connections, includes systems that operate with Profibus. it typically have between 3 and 5 pins.

C-coded primarily used with AC sensors and actuators, and also have a dual keyway for added security. it have between 3 and 6 pins.



2. What is the application prospect of M12 connector

M12 connectors will be more suitable for the Industrial Internet of Things (IIoT).

The IIoT is a real-time data connection, driven by processing and transmitting data at faster speeds, on progressively smarter and smaller machines. The value of the IIoT goes beyond data collection and transmission, it benefits including but not limited to the ability to identify disruptions, discovering unused capacity, reducing maintenance costs and downtime, improving safety, and maximizing overall equipment effectiveness.

M12 connectors' advantages in the speed, reliability, and ruggedness, etc perfect match the smart factories' demand.
