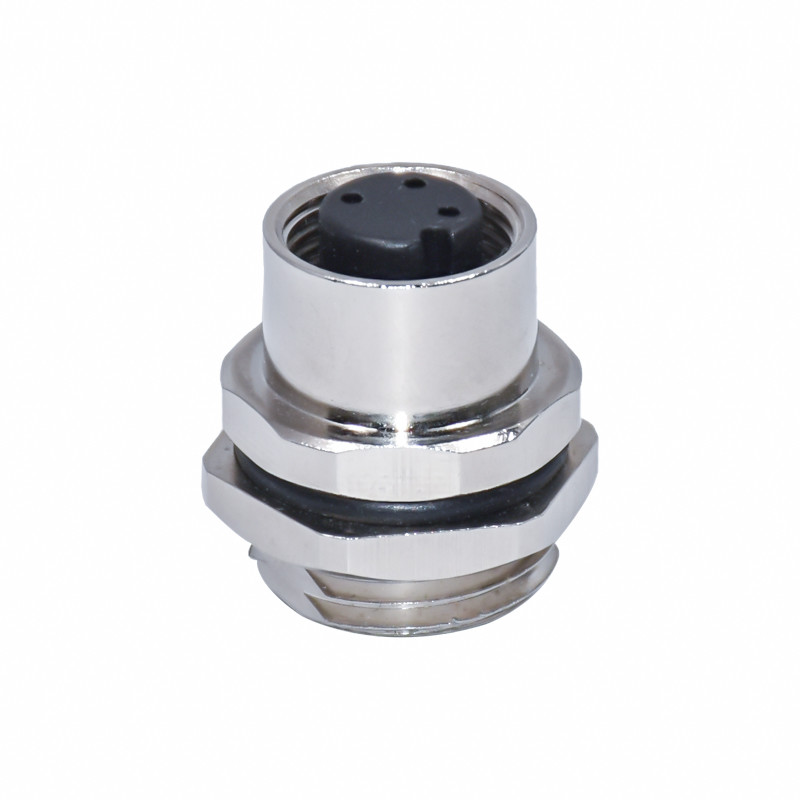

Rigoal AWG26 M12 Female Connector CuZn M12 D Coded Connector

Rigoal  AWG26 M12 Female Connector CuZn M12 D Coded Connector
Features Gallery Product Description Request A Quote
Place Of Origin: China
Type: Waterproof Connector, Waterproof Connector
Application: Automation
Series: M12
Coding: A,B,C,D,X
Material Of Contact: CuZn(Brass)
Material Of Contact Body: PA
Connector Locking: Screw
Wire Gouge: AWG26-AWG24
Rated Current: 4A
High Light:

AWG26 M12 Female Connector


Rigoal M12 Female Connector


CuZn M12 D Coded Connector

Basic Infomation
Place of Origin: China ShenZhen
Brand Name: Rigoal
Certification: CE , Rohs , IP68
Model Number: panel mount
Payment & Shipping Terms
Packaging Details: 46x30x30
Delivery Time: 30work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000
Product Description

M12 male or female scoket

Characteristics of M12 Series

General Characteristics
Number of contact 3 4 5 8 12 17
Locking system screw M12*1.0
Termination solder, moulded on cable, crimp or screw clamp
Wire guage in mm² 0.14/0.25/0.34/0.5 etc
Wire guage in AWG 26/24/22/20 etc
Shell protection IP67/IP68
Mechanical operation >500 mating cycles
Upper temperature +85℃
Lower temperature -25℃
Electrical Characteristics
Rated voltage 250V 60V 30V
Pollution degree III
Test voltage 500V±15V
Rated current(40℃) 4A 1.5A
Contact resistance ≤10mΩ
Insulation resistance ≥100MΩ
Pin contact CuZn
Socket contact CuSn
Contact plating Au
Upper temperature PA66(UL 94V-0)
Female insent PA66(UL 94V-0)
Material of cable jacket PVC or PUR
Screw CuZn
Nut CuZn

M12 Circular Connector is Designed for Washdown and Corrosive Environments, Primarily Used in Factory Automation Applications for Actuators, Sensors, Industrial Ethernet, and Fieldbus.

M12 Series with Ip67/68 Rating, Provides with 2, 3, 4, 5, 6, 8, 12, 17 Contacts, Different Pin Match Specific Applications. E.g, Sensor and Power Applications Require 3 or 4 Pins; Profinet and Ethernet Require 4 or 8 Pin Counts; Fieldbus, Can Bus and Devicenet Typically Use 4 or 5 Pin Counts; and Signal Requirements Usually Employ 12 Pins.

We Supply Full Series of M12 with Field Wireable Connector, Molded Cable Connector, Panel Connector, Overmoled Cables, Wire Harness and Accessories. Pvc (general) or Pur (oil Resistant) Cables Available with Customized Length According to User Requirements.
